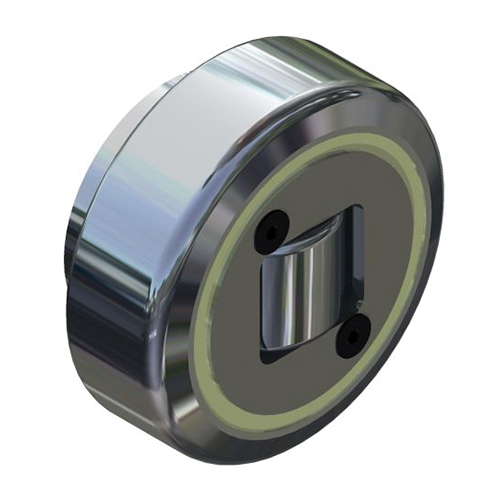

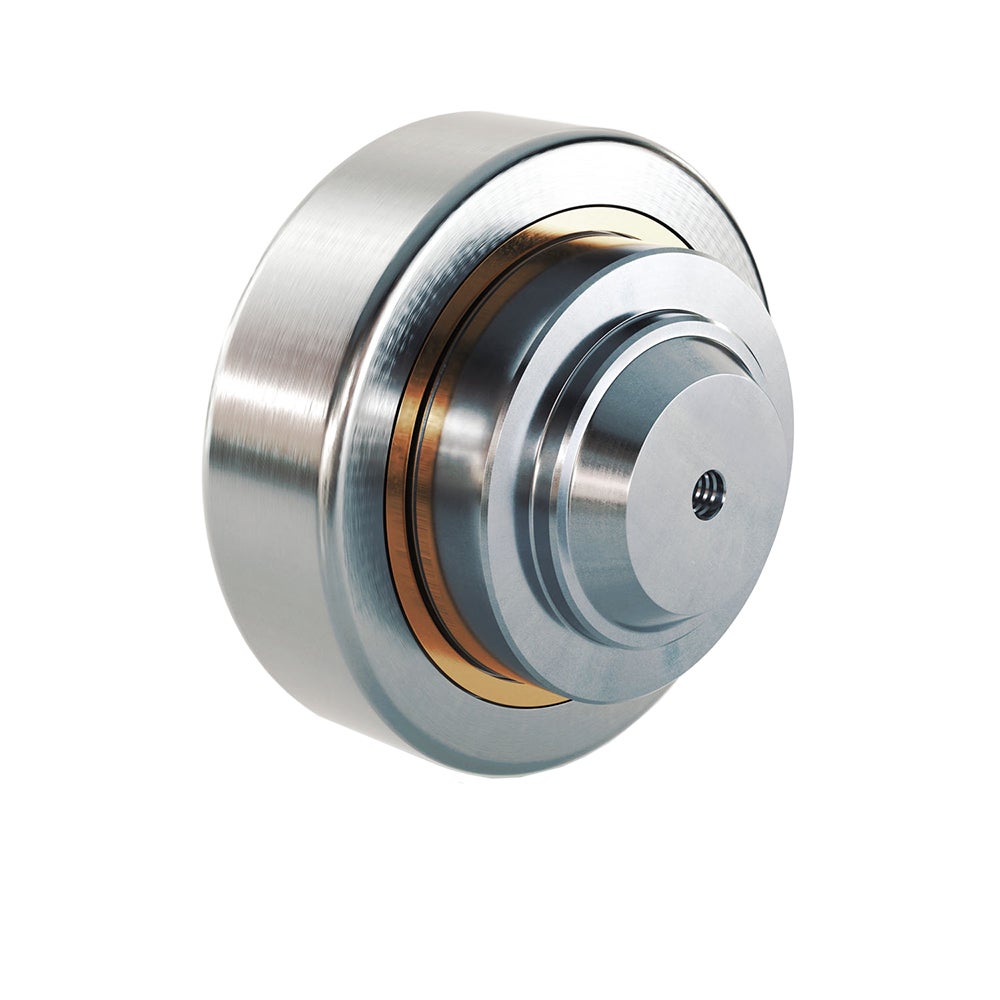

TR---. 0200

• Lubricated for lifetime
• Optional from size 60 relubricable.

Use profile UP---.0700. Profile UP---.0730 for TR050.0200
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100
C = Dynamic load capacity radial bearing
Ca = Static load capacity axial bearing

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.
Dimensions in mm.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

U-Rail_Technical_Information.pdf
U-Rail_Order_Codes.pdf
CAD-Drawing
Designation Select all Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile CAD Compare
/storage/0DCF7E729AFEE85BBA28570DE2E26165B59CA78C4ADA8343304ABCA9912E2A67/e02d7c588715481190be2ab0a5a3ff85/step/media/4b896c51387348938d998b58eddf6b1c/CAD_TR050.0200_Standard-Roller_Rollco.step 2 5300 2000 7500 24500 UP---.0730
Get quote
/storage/AEE2DD9BF630249D8830714BC51E27FD286CE603BC9CBA16E13959ACF662842D/0cc785eb26644847a255deaeb743b183/step/media/f137ffe33f1e41138edcbc5489815e94/CAD_TR060.0200_Standard-Roller_Rollco.step 2 8870 2950 11000 31000 UP---.0700
Get quote
/storage/E57E99F504B8255AAD95E41E2CF98521EC8556414D0982750DDEAB51DFF07CD7/33e4e15cca6044009b6af42ba5f7c544/step/media/1ce217fe11504581bf870bfab1988453/CAD_TR070.0200_Standard-Roller_Rollco.step 2 11400 3150 13000 45500 UP---.0700
Get quote
/storage/83A1E468E6E6FC284155B5857FF821F797FE696133F9A674915352F941F8E923/d2a41ee8767346479878fe6098726664/step/media/b9b484f27eac43b08aedc6a4d7eed60a/CAD_TR080.0200_Standard-Roller_Rollco.step 2 12870 5000 18000 48000 UP---.0700
Get quote
/storage/D8FF71B7D123BC6E0F81FC15D4BE5FE18376F5AFD172BB3E02DE46C4E4F828E3/546e0d25b70c45d18955d6c110d94ca1/step/media/ad91ea84f2c244688b8640020a6f8ef9/CAD_TR090.0200_Standard-Roller_Rollco.step 2 20370 5100 23000 68000 UP---.0700
Get quote
/storage/0D36DE4D836591730B9E7F375DD0B8AC7411E6AD5B20132604FE4FD4620E9D07/b147a888c64545969d577717ed4c6a51/step/media/61765534747d4aa3b3b59926aa29b9f5/CAD_TR110.0200_Standard-Roller_Rollco.step 2 24060 8900 31000 81000 UP---.0700
Get quote
/storage/B6F8CFEE5002A49980044E21A3A185B88134B8589AFC1297EE2F63EA4CEF1A38/86a0638ffe1441159936ec568134662a/step/media/6537b928670046d2a997046136a8a6ee/CAD_TR120.0200_Standard-Roller_Rollco.step 2 33440 9800 43000 110000 UP---.0700
Get quote
/storage/5F982298976FC2E14568A0441FF007AFEC3DED89A2C5848FB47F0F1B547F6D87/0b30d40a0a1d47c799d47eb34d8e051a/step/media/c8a5f0cf4b81459eab56a6890c679319/CAD_TR150.0200_Standard-Roller_Rollco.step 2 51940 17400 68000 151000 UP---.0700
Get quote
/storage/33C5CDBBB29B6EBF6DA206F02E8BF84D8395FF6B044BAD1C2C4D23A4055B42E6/0eec001b5070412995305b2a3d09eb38/step/media/8b67de7eb80a47d28bdedb792e551d59/CAD_TR180.0200_Standard-Roller_Rollco.step 2 76000 23000 73000 207000 UP---.0700
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all B D F G H L R T U CAD Compare
/storage/0DCF7E729AFEE85BBA28570DE2E26165B59CA78C4ADA8343304ABCA9912E2A67/e02d7c588715481190be2ab0a5a3ff85/step/media/4b896c51387348938d998b58eddf6b1c/CAD_TR050.0200_Standard-Roller_Rollco.step 17 52.5 6 5 33 27 16 40 30
Get quote
/storage/AEE2DD9BF630249D8830714BC51E27FD286CE603BC9CBA16E13959ACF662842D/0cc785eb26644847a255deaeb743b183/step/media/f137ffe33f1e41138edcbc5489815e94/CAD_TR060.0200_Standard-Roller_Rollco.step 20 62.5 7 9 37.5 30.5 20 42 30
Get quote
/storage/E57E99F504B8255AAD95E41E2CF98521EC8556414D0982750DDEAB51DFF07CD7/33e4e15cca6044009b6af42ba5f7c544/step/media/1ce217fe11504581bf870bfab1988453/CAD_TR070.0200_Standard-Roller_Rollco.step 23 70.1 8 10.5 44 36 22 48 35
Get quote
/storage/83A1E468E6E6FC284155B5857FF821F797FE696133F9A674915352F941F8E923/d2a41ee8767346479878fe6098726664/step/media/b9b484f27eac43b08aedc6a4d7eed60a/CAD_TR080.0200_Standard-Roller_Rollco.step 23 77.7 11.5 10.5 48 36.5 24 54 40
Get quote
/storage/D8FF71B7D123BC6E0F81FC15D4BE5FE18376F5AFD172BB3E02DE46C4E4F828E3/546e0d25b70c45d18955d6c110d94ca1/step/media/ad91ea84f2c244688b8640020a6f8ef9/CAD_TR090.0200_Standard-Roller_Rollco.step 30 88.4 13 10.5 57 44 26 59 45
Get quote
/storage/0D36DE4D836591730B9E7F375DD0B8AC7411E6AD5B20132604FE4FD4620E9D07/b147a888c64545969d577717ed4c6a51/step/media/61765534747d4aa3b3b59926aa29b9f5/CAD_TR110.0200_Standard-Roller_Rollco.step 31 107.7 14 20 69 55 34 71 60
Get quote
/storage/B6F8CFEE5002A49980044E21A3A185B88134B8589AFC1297EE2F63EA4CEF1A38/86a0638ffe1441159936ec568134662a/step/media/6537b928670046d2a997046136a8a6ee/CAD_TR120.0200_Standard-Roller_Rollco.step 37 123 16.3 14 72.3 56 40 80 60
Get quote
/storage/5F982298976FC2E14568A0441FF007AFEC3DED89A2C5848FB47F0F1B547F6D87/0b30d40a0a1d47c799d47eb34d8e051a/step/media/c8a5f0cf4b81459eab56a6890c679319/CAD_TR150.0200_Standard-Roller_Rollco.step 45 149 20 8.5 78.5 58.5 50 103 60
Get quote
/storage/33C5CDBBB29B6EBF6DA206F02E8BF84D8395FF6B044BAD1C2C4D23A4055B42E6/0eec001b5070412995305b2a3d09eb38/step/media/8b67de7eb80a47d28bdedb792e551d59/CAD_TR180.0200_Standard-Roller_Rollco.step 57.3 180 19.4 12.5 95.7 76.3 60 124 100
Get quote
