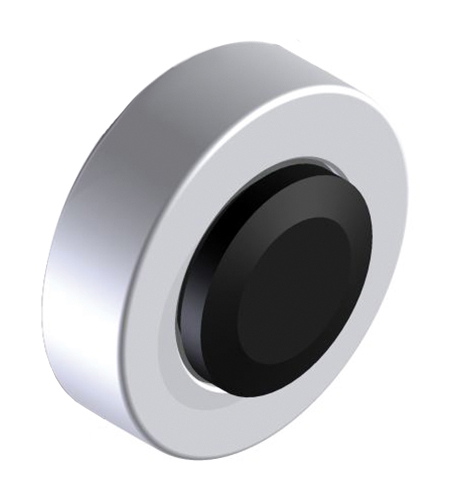

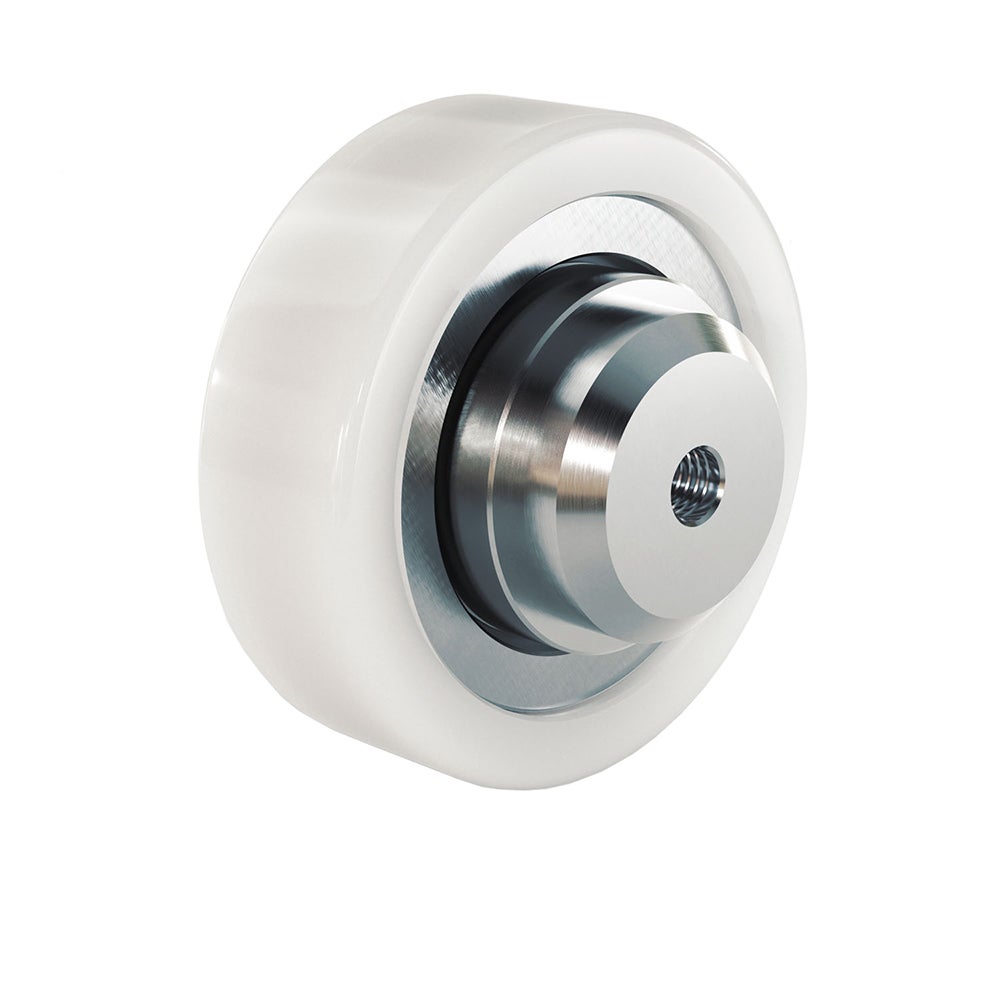

PAS ---.0360

• Polyamide roller combined – fixed with oilamide sliding block
• Lubricated for lifetime
• High abrasion resistance
• Low friction
• High chemical resistance to alcohol, salts, greases and certain acids and alkalis in diluted concentration.

Reduction of value by speed of:
1 m/sec: 0%
2 m/sec: -20%
3 m/sec: -30%

Use profile UP---.0730. See Fixing element rectangular and square.

Order example: Roller + fixing plate PAS040.0360/BQ 1000
Roller Ø 40 mm - welded with mounting element 50 mm x 50 mm x 8 mm

Dimensions in mm.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

Temperature: Maximum working temperature 80° C.
Speed: Travel speed up to 5 m/sec
U-Rail_Technical_Information.pdf
U-Rail_Order_Codes.pdf
CAD-Drawing
Designation Select all Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Profile CAD Compare
/storage/46BACF60C4AEFCC691729DCB6E1579BD6E86B8CED0F7C7642AA0BBD6FE0FE96E/d949697e677040b1988d8fa8112955d3/step/media/6ce93634348d4bd99d52eb1e3a9b5ac7/CAD_PAS040.0360_Polyamide-Roller_Rollco.step 2 900 400 UP---.0730
Get quote
/storage/DE3AFA24B15A971585D2E735153F05B948C4FCB93EE9F43CDEE486D682AAFD4A/83d4913b46534e3091d49ba20e0d8b41/step/media/6794d0a5ca1b4445bc290add4f2771b8/CAD_PAS050.0360_Polyamide-Roller_Rollco.step 2 1200 400 UP---.0730
Get quote
/storage/42008480DB89D9FBD7E4957A5DB4A8DD71CC705DA9CC1D38EE218618BF48DCEC/658d225f7192440d85d6c7ba9271af49/step/media/96b099163cc04b56818cf030924355cf/CAD_PAS060.0360_Polyamide-Roller_Rollco.step 2 1500 600 UP---.0730
Get quote
/storage/B67372FC1BF59D55D5B419980741A117BEDA97D3DEA260CD6CDCC35734CD0575/aaac5d329f674ef8a37f8e874150b807/step/media/bb31da8d8d2d4d839650ebbc9aa1aa15/CAD_PAS100.0360_Polyamide-Roller_Rollco.step 2 2500 600 UP---.0730
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all A B C D E F L T U CAD Compare
/storage/46BACF60C4AEFCC691729DCB6E1579BD6E86B8CED0F7C7642AA0BBD6FE0FE96E/d949697e677040b1988d8fa8112955d3/step/media/6ce93634348d4bd99d52eb1e3a9b5ac7/CAD_PAS040.0360_Polyamide-Roller_Rollco.step 2.8 15 2.8 40 20 M6 24 25 20
Get quote
/storage/DE3AFA24B15A971585D2E735153F05B948C4FCB93EE9F43CDEE486D682AAFD4A/83d4913b46534e3091d49ba20e0d8b41/step/media/6794d0a5ca1b4445bc290add4f2771b8/CAD_PAS050.0360_Polyamide-Roller_Rollco.step 5 15 5 52.5 31 M8 27 35 30
Get quote
/storage/42008480DB89D9FBD7E4957A5DB4A8DD71CC705DA9CC1D38EE218618BF48DCEC/658d225f7192440d85d6c7ba9271af49/step/media/96b099163cc04b56818cf030924355cf/CAD_PAS060.0360_Polyamide-Roller_Rollco.step 4.5 18 8.5 62.5 40 M8 29 35 30
Get quote
/storage/B67372FC1BF59D55D5B419980741A117BEDA97D3DEA260CD6CDCC35734CD0575/aaac5d329f674ef8a37f8e874150b807/step/media/bb31da8d8d2d4d839650ebbc9aa1aa15/CAD_PAS100.0360_Polyamide-Roller_Rollco.step 6.3 25 8 101.2 64 — 41 50 45
Get quote
  • STOCK ITEM

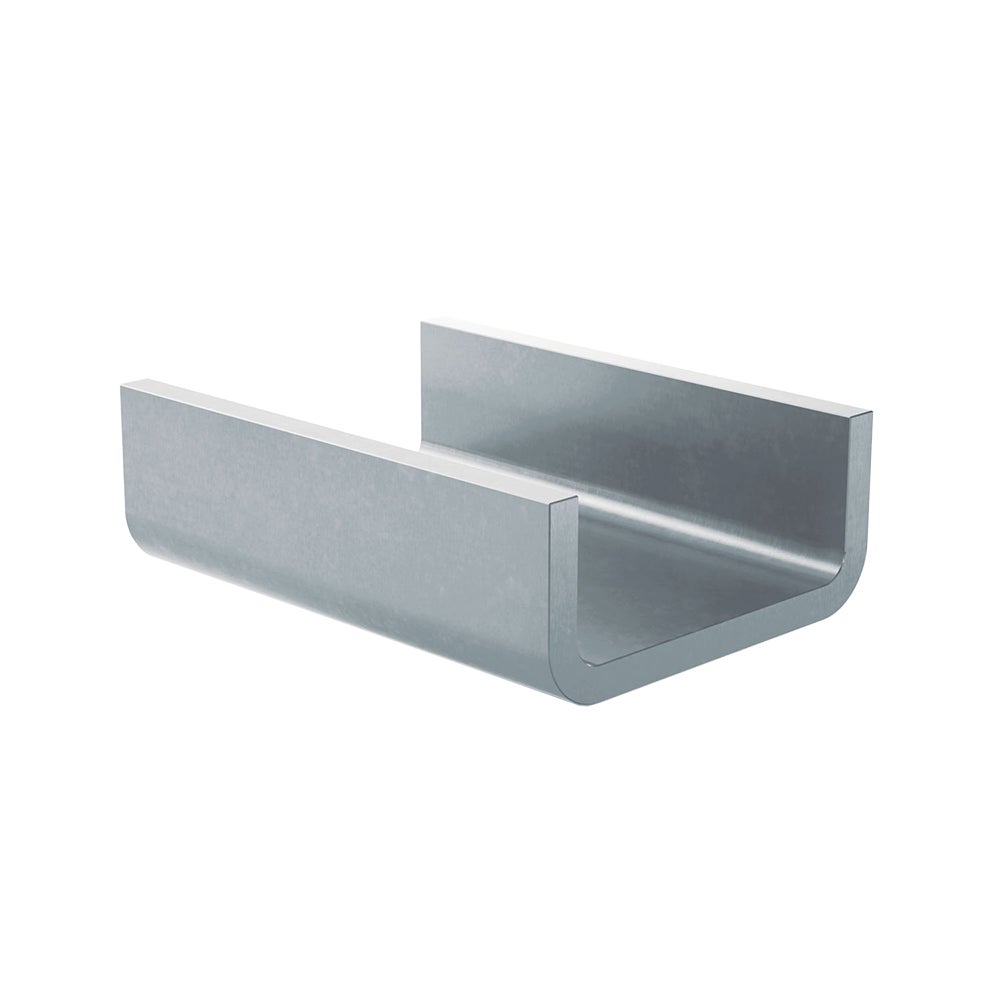

    UP---.0730
    Light U-Profile, good weldability and available in various surfaces

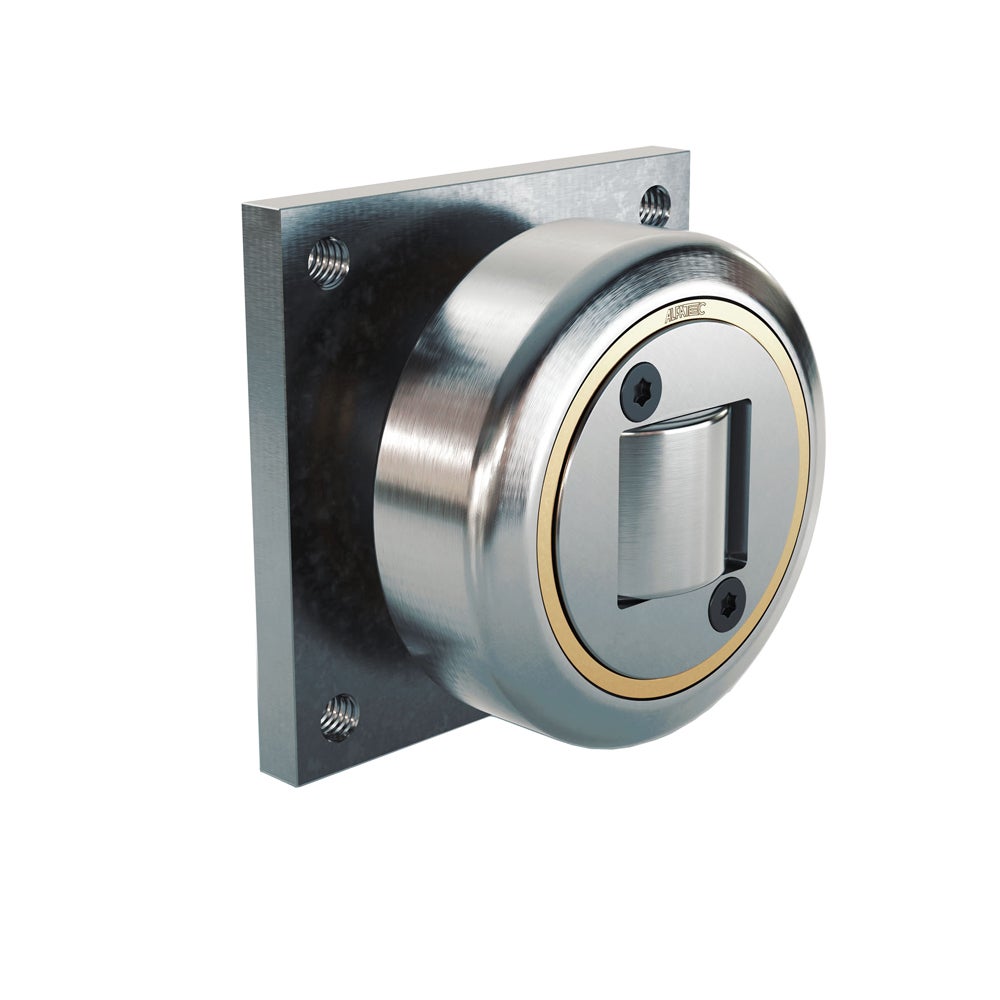

  • BQ---.1000
    Fixing Element Square - welded with the combined roller

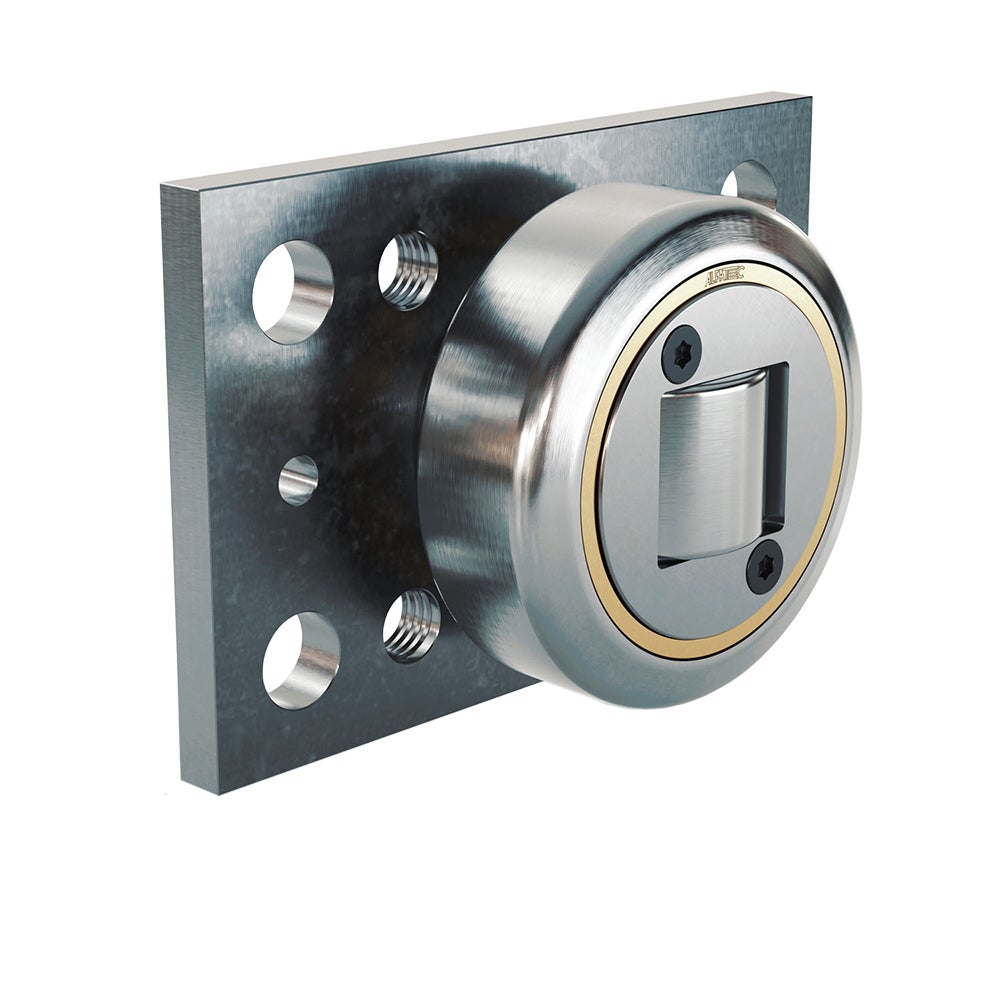

  • BR---.1100
    Fixing Element Rectangular - welded with the combined roller

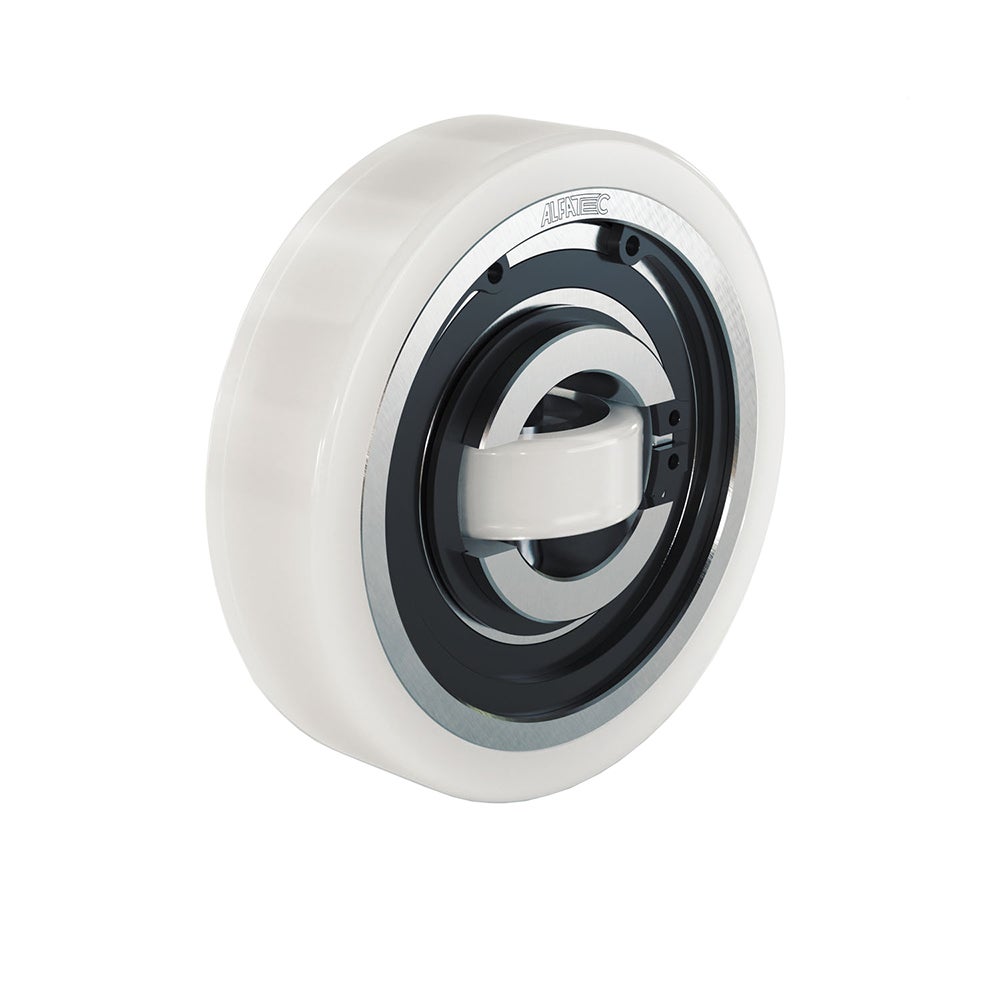

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

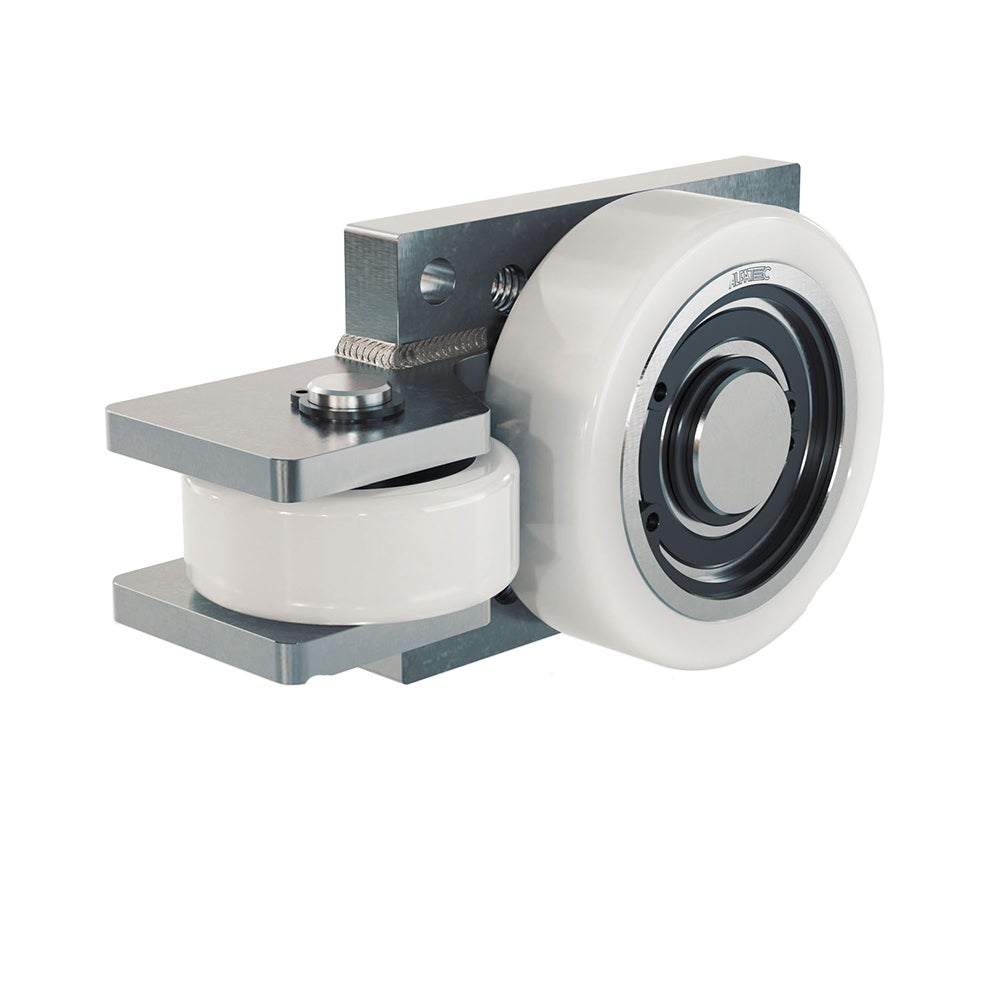

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0300
    Standard Roller, adj. of the axial clearance, for profile UP---.0700
  • STOCK ITEM

    TR---.0360
    Standard Roller with Oilamide Sliding Block, for profile UP---.0700

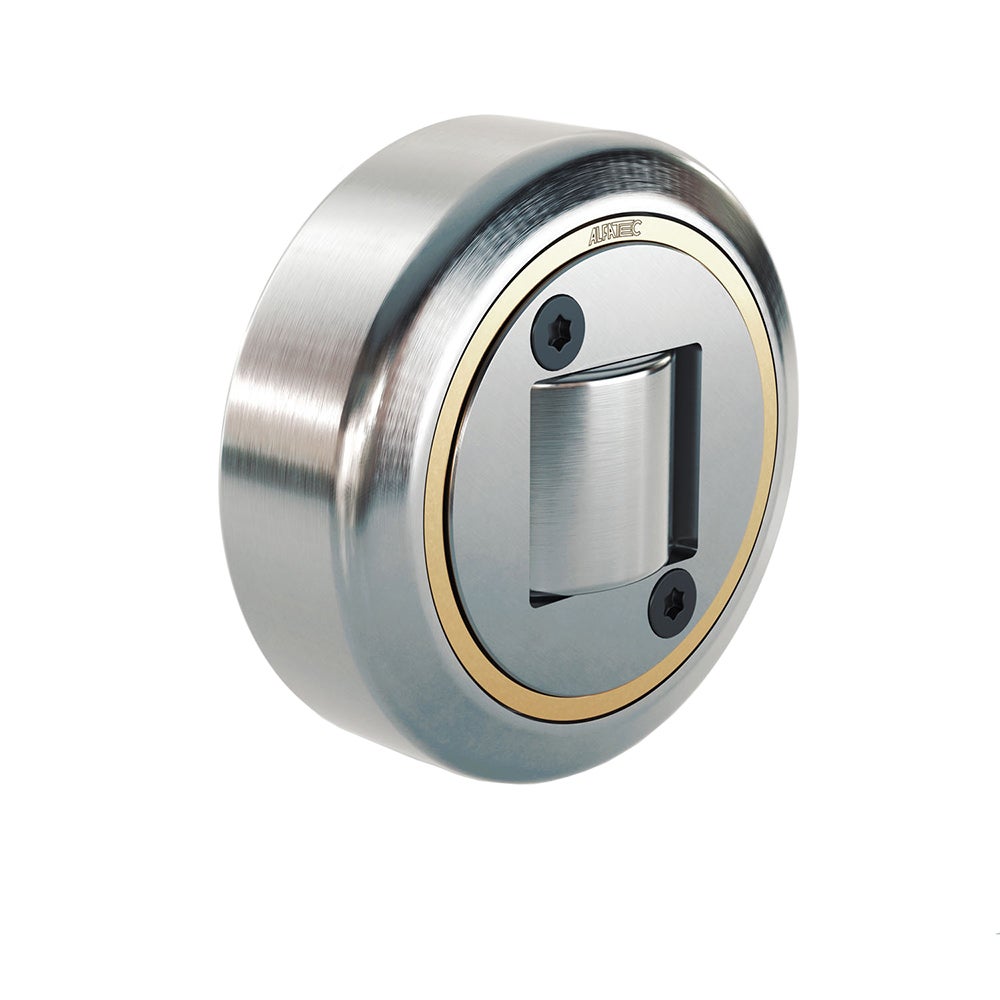

  • XTR---.0200
    Heavy Roller Fixed, up to 60% higher load capacity, for profile XUP---.0700

  • STR---.6200
    Standard Roller with axial bearing, for profile UP---.0700

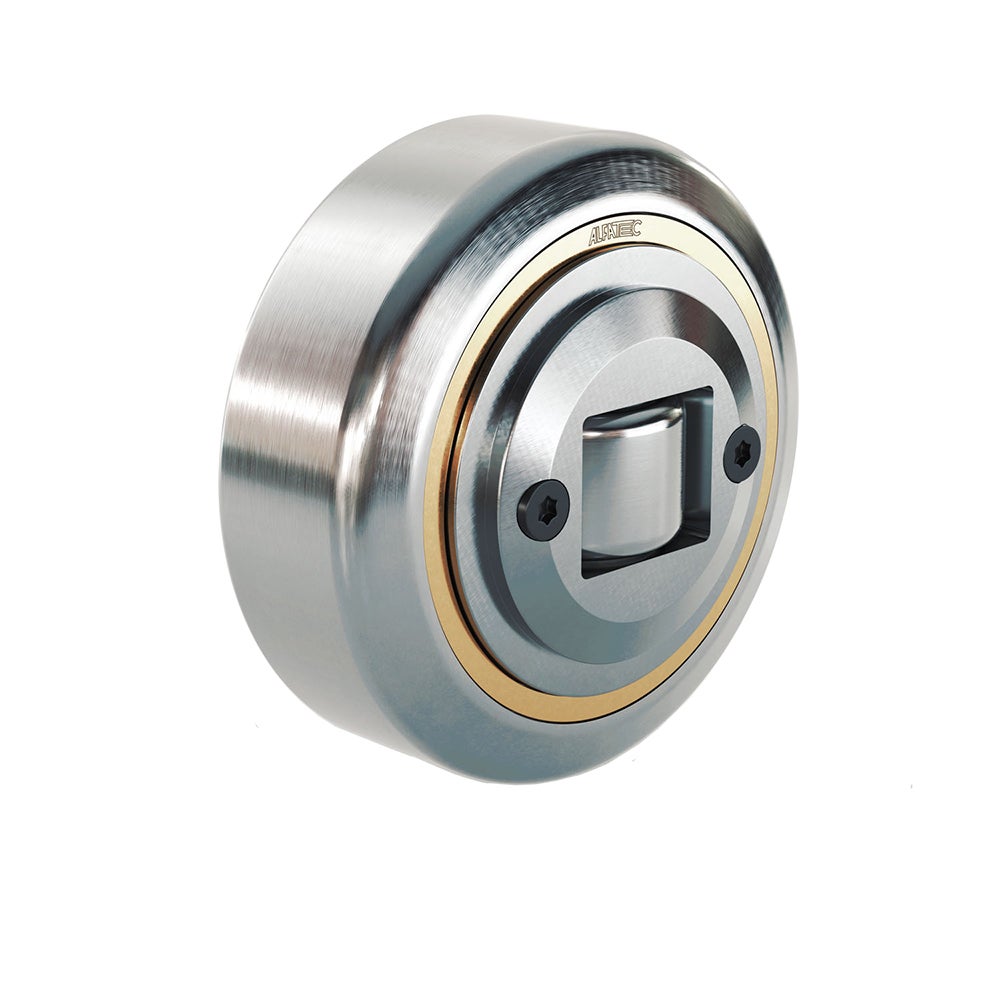

  • XTR---.0300
    Heavy Roller combined adjustable w. insert washer, for profile XUP---.0700

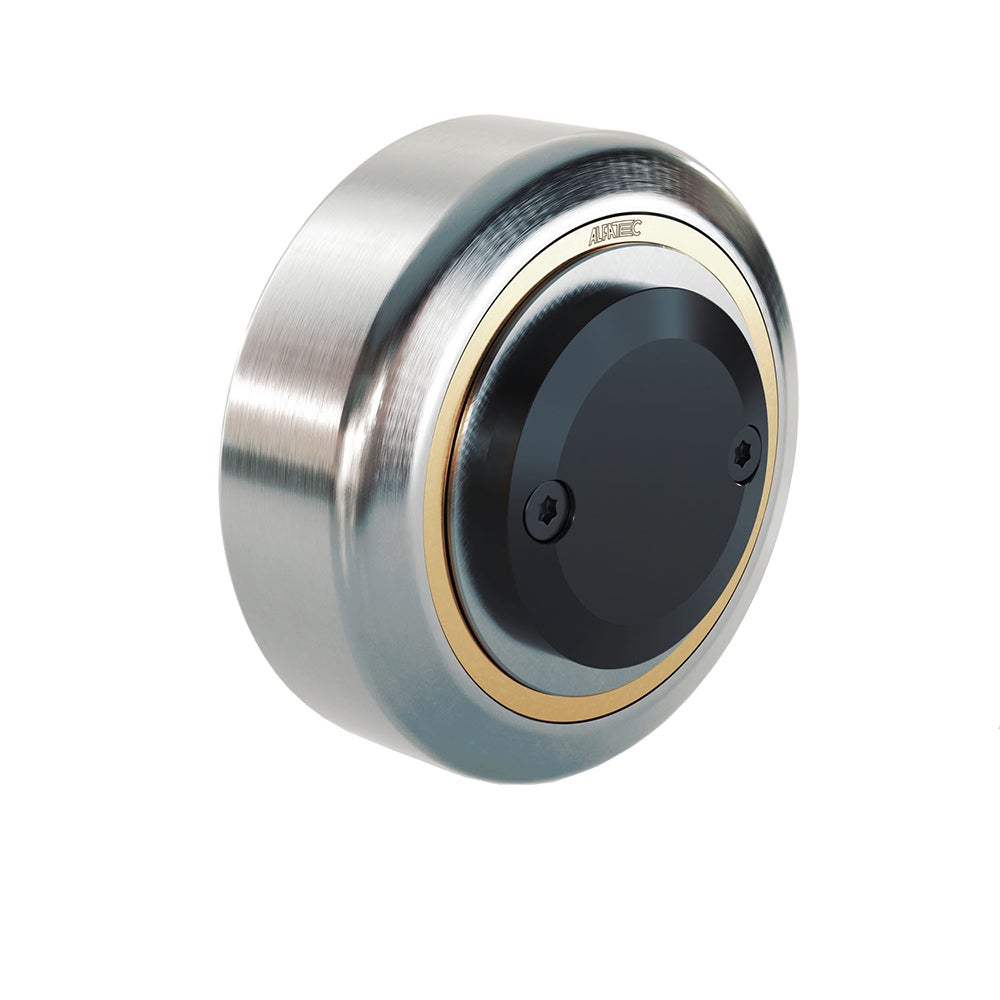

  • TR---.0390
    Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780

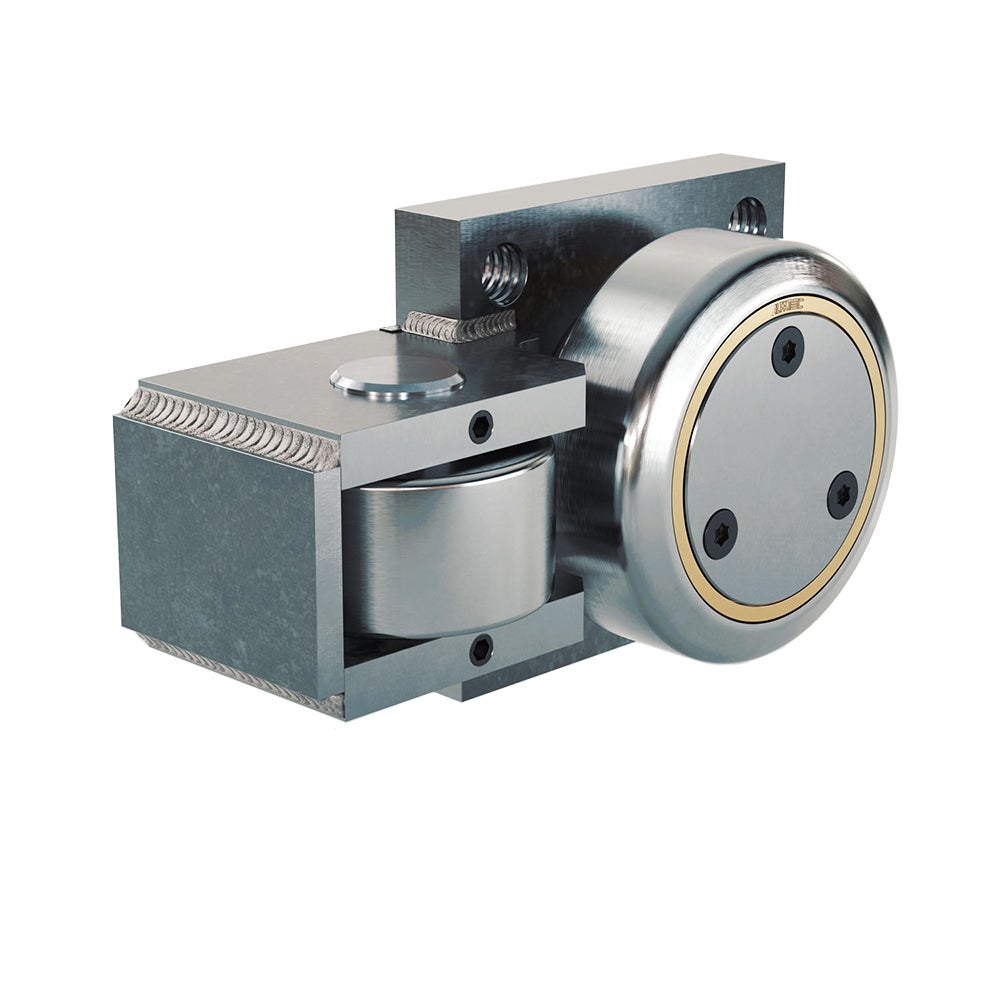

  • XSTR---.6200
