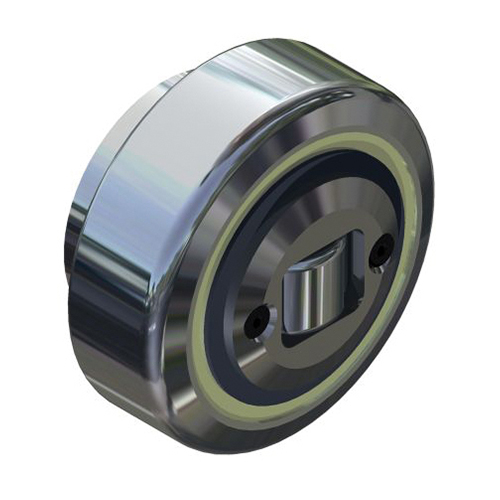

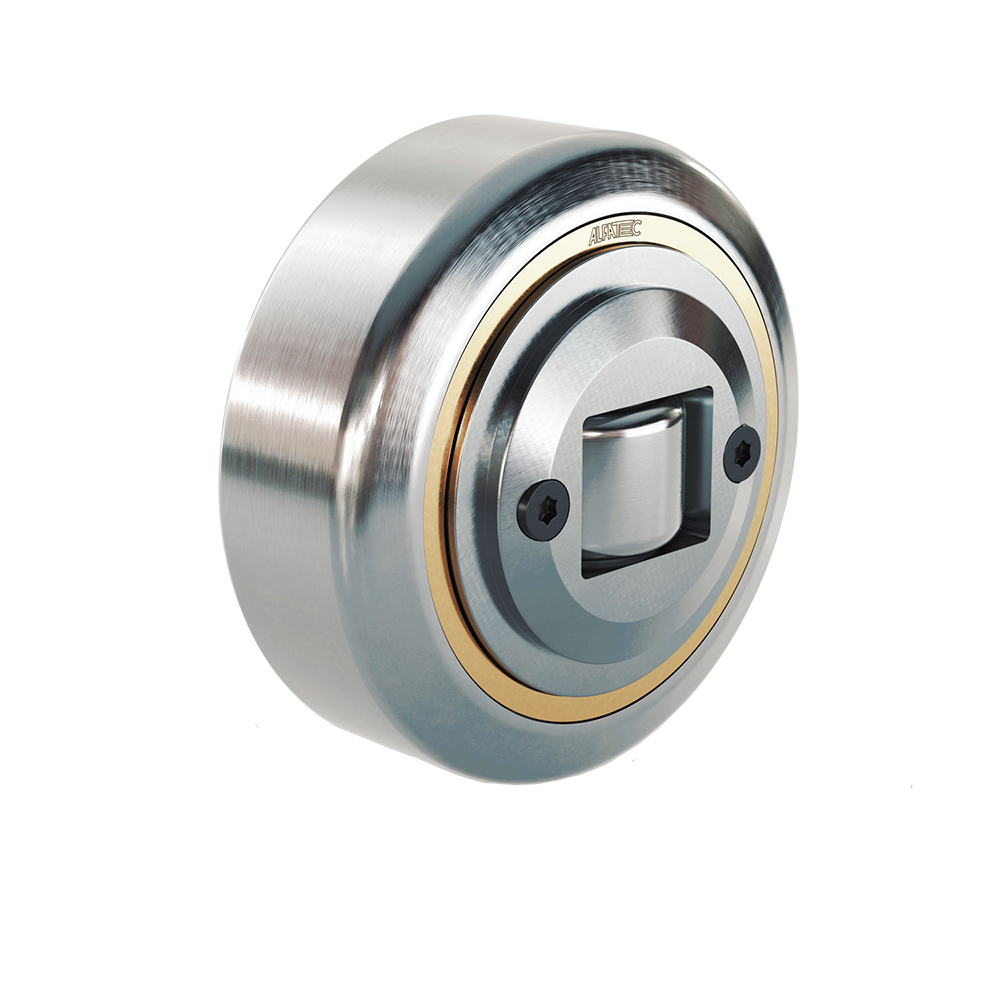

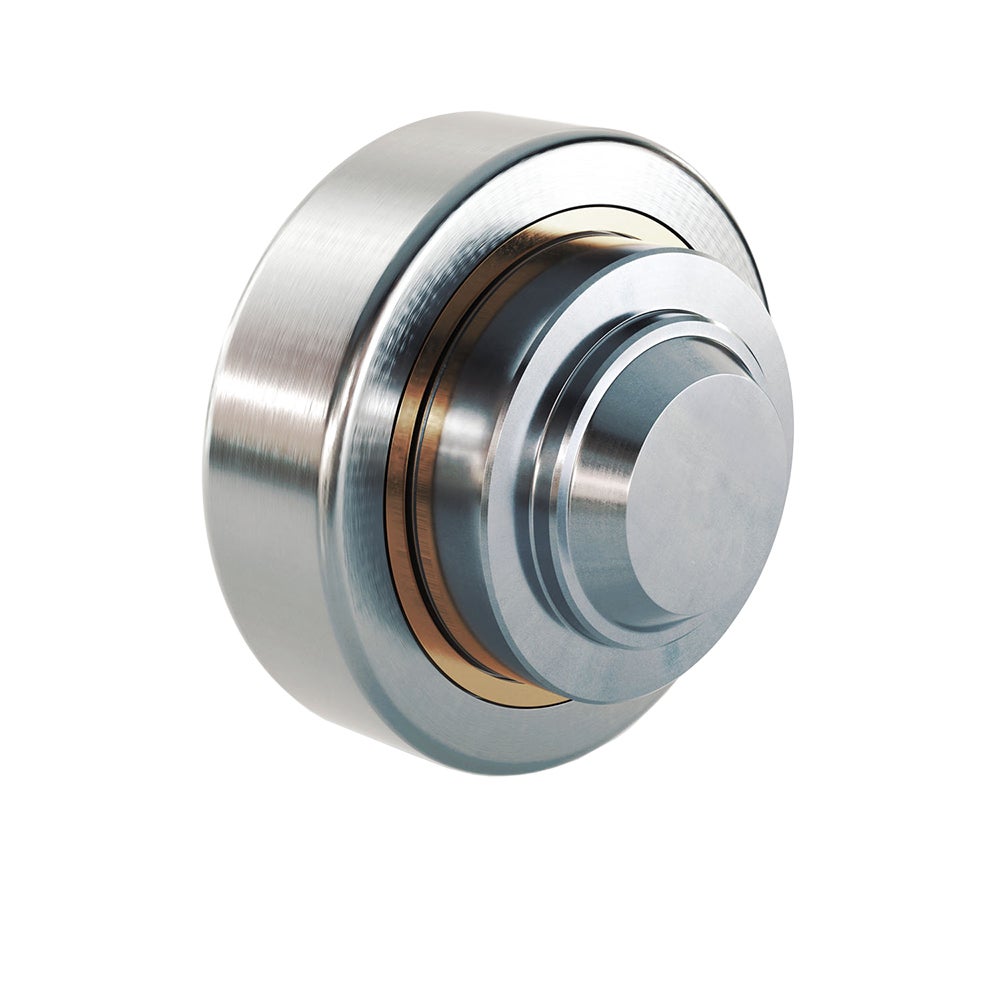

TR---.0300

• Lubricated for lifetime

Use profile UP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

U-Rail_Technical_Information.pdf
U-Rail_Order_Codes.pdf
CAD-Drawing
Designation Select all Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile CAD Compare
/storage/0AEB4F6A13E42EF268A47635769C3202DF249CBA30E71CB9BF640C1A4370EF89/48dd937639d84b0fbe5a470a6b9ba39b/step/media/0834d2264be9477899f46ac35e8d54cf/CAD_TR060.0300_Standard-Roller_Rollco.step 2 8870 2950 8000 31000 UP---.0700
Get quote
/storage/971C27FBDBA361C5B253E39207B95A73AA79198D6DBAFE771009605BCEC56655/305ce37080a249f6b58f9a4d325ef228/step/media/7f9a3d3c83de4f7a9d9cea9f5a1896dc/CAD_TR070.0300_Standard-Roller_Rollco.step 2 11400 3150 13000 45500 UP---.0700
Get quote
/storage/FD5F26A6A1B36003722AD85CD9B9D51A13427AFE651651AAEFA8BFC31943D1D8/5b32100f6f9a45ab9af0472e1fbd8680/step/media/e5d74c72b93b44b68d23edd80342e513/CAD_TR080.0300_Standard-Roller_Rollco.step 2 12870 5000 14000 48000 UP---.0700
Get quote
/storage/099C812813D7A7E2EBF5590E5C2C4E3B9F8202CC1066A4A49A158105FEE16199/64cb613929734d279f557f8f9a499dc5/step/media/89546a066c224a02bf821ec715bc52c4/CAD_TR090.0300_Standard-Roller_Rollco.step 2 20370 5100 15000 68000 UP---.0700
Get quote
/storage/2BAEB3DC037B4BB424984D897792BD7470FA09A6FFAF458D9B88C439A6BDF64F/142f74ed9d9a4e3d837391e9eb5d78b1/step/media/25c2f2f5a7bc47d5a09ea94bd56734b5/CAD_TR110.0300_Standard-Roller_Rollco.step 2 24060 8900 31000 81000 UP---.0700
Get quote
/storage/F306B4E818E0A0F623037558E3EBDB587AE282456C75745ED8ABD83A82F32456/bc55b989d6404371846d7c4df2b162fb/step/media/a0c8f99f058549beb1940bdfa4080dd4/CAD_TR120.0300_Standard-Roller_Rollco.step 2 33440 9800 31000 110000 UP---.0700
Get quote
/storage/91808B8B691C4A1E93A770A8989806509F3189981B0DCAFE882F39C7AE383F82/de6f1efeca5843bc90fa080ab2b6653c/step/media/3393999bdb6940c79dd8e9f2a782729e/CAD_TR150.0300_Standard-Roller_Rollco.step 2 51940 17400 68000 151000 UP---.0700
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all A B D H L T U CAD Compare
/storage/0AEB4F6A13E42EF268A47635769C3202DF249CBA30E71CB9BF640C1A4370EF89/48dd937639d84b0fbe5a470a6b9ba39b/step/media/0834d2264be9477899f46ac35e8d54cf/CAD_TR060.0300_Standard-Roller_Rollco.step 5.5 20 62.5 43 33 42 30
Get quote
/storage/971C27FBDBA361C5B253E39207B95A73AA79198D6DBAFE771009605BCEC56655/305ce37080a249f6b58f9a4d325ef228/step/media/7f9a3d3c83de4f7a9d9cea9f5a1896dc/CAD_TR070.0300_Standard-Roller_Rollco.step 6.5 23 70.1 48 40 48 35
Get quote
/storage/FD5F26A6A1B36003722AD85CD9B9D51A13427AFE651651AAEFA8BFC31943D1D8/5b32100f6f9a45ab9af0472e1fbd8680/step/media/e5d74c72b93b44b68d23edd80342e513/CAD_TR080.0300_Standard-Roller_Rollco.step 7 23 77.7 50.5 39.5 54 40
Get quote
/storage/099C812813D7A7E2EBF5590E5C2C4E3B9F8202CC1066A4A49A158105FEE16199/64cb613929734d279f557f8f9a499dc5/step/media/89546a066c224a02bf821ec715bc52c4/CAD_TR090.0300_Standard-Roller_Rollco.step 7 30 88.4 61 48 59 45
Get quote
/storage/2BAEB3DC037B4BB424984D897792BD7470FA09A6FFAF458D9B88C439A6BDF64F/142f74ed9d9a4e3d837391e9eb5d78b1/step/media/25c2f2f5a7bc47d5a09ea94bd56734b5/CAD_TR110.0300_Standard-Roller_Rollco.step 8 31 107.7 69 55 71 60
Get quote
/storage/F306B4E818E0A0F623037558E3EBDB587AE282456C75745ED8ABD83A82F32456/bc55b989d6404371846d7c4df2b162fb/step/media/a0c8f99f058549beb1940bdfa4080dd4/CAD_TR120.0300_Standard-Roller_Rollco.step 8 37 123 75.8 59.5 80 60
Get quote
/storage/91808B8B691C4A1E93A770A8989806509F3189981B0DCAFE882F39C7AE383F82/de6f1efeca5843bc90fa080ab2b6653c/step/media/3393999bdb6940c79dd8e9f2a782729e/CAD_TR150.0300_Standard-Roller_Rollco.step 15 45 149 89 69 103 60
Get quote
