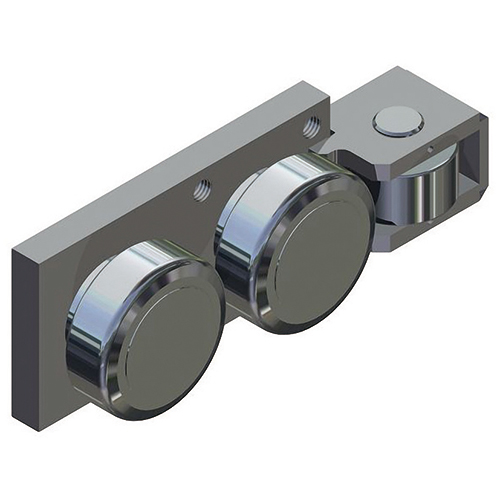

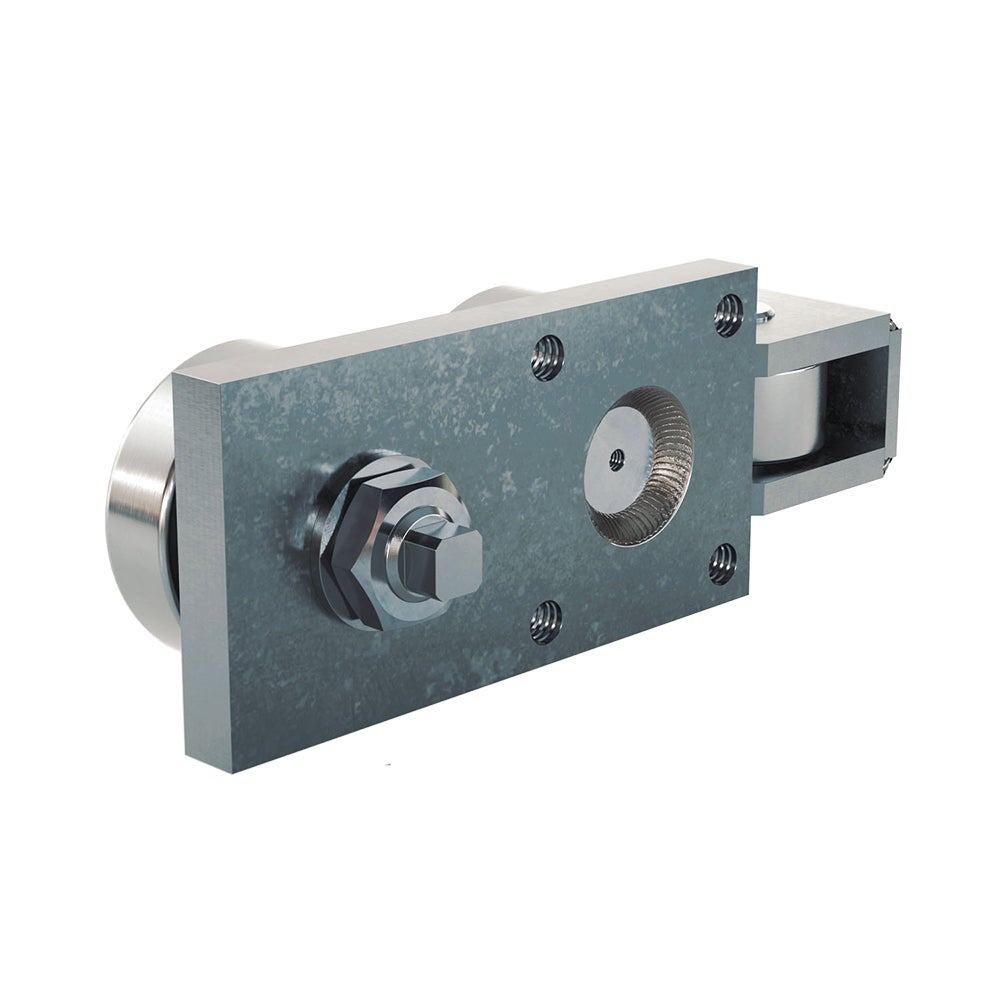

Heavy Duty Guideway Unit SFE---.5200

Heavy duty guideway unit axial bearing with 40 % higher load capacity
Excentric bearing adjustable to minimize clearance.
Lubricated for lifetime.
Special dimensions on request.

Dimensions in mm.

Product Information

Designation Lead Time * System Load Capacity Radial System Load Capacity Axial
2 8870 N 7000 N
2 11400 N 11000 N
2 12870 N 11000 N
2 20370 N 13000 N
2 24060 N 20000 N
2 33440 N 20000 N
2 51940 N 20000 N

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

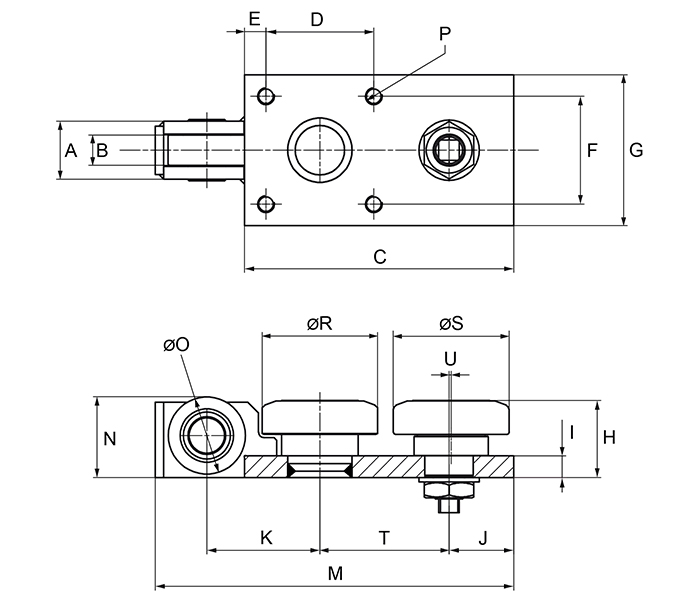

Technical Drawing
Designation A B C D E F G H I J K M N O P R S T U
38 20 140 50 10 50 70 41,50 12 35 55 188 42,50 40 4xM10 62,50 62,70 70 2
42 24 160 60 10 60 80 49 15 40 65 217 51 47 4xM12 70,10 70,10 80 2
46 24 180 70 15 70 100 48,50 15 45 75 237 51,50 47 4xM12 77,70 77,70 85 2
45 24 210 90 15 90 120 61 20 50 85 273 64 52 4xM16 88,40 88,40 100 2
54 28 250 100 20 100 140 71,50 20 60 105 333 75 72 4xM16 107,10 107,70 120 2
54 28 280 100 20 100 140 71,50 20 70 107 365 76 72 4xM16 123 123 140 2
54 28 325 120 20 120 160 79 25 80 80 - 83,50 72 4xM16 149 149 165 3
