TR---. 0200
Standard Roller Fixed, for profile UP---.0700/0730
IP---.0800
• Higher wear resistance
• Fine grained structure
• Easy to weld
Versions of delivery:

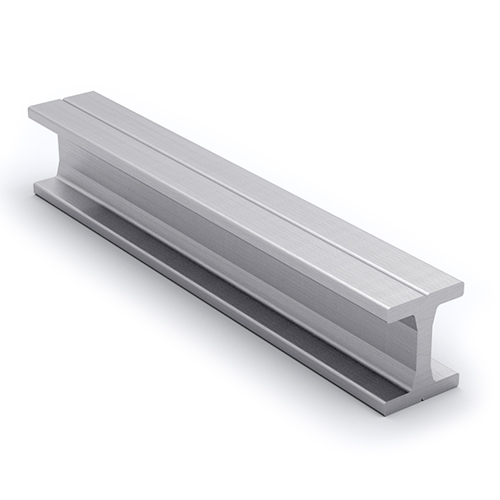

Standard IP---.0800
Fine straightened style ± 0,3 mm/m IP---.0801
Sandblasted IP---.0802
Sandblasted + fine straightened style IP---.0803
Ordering example: IP 070.0800-2800 (I-Profile with inside measurement 70 mm, length 2800 mm)
Dimensions in mm.
• Fine grained structure
• Easy to weld
Versions of delivery:
Standard IP---.0800
Fine straightened style ± 0,3 mm/m IP---.0801
Sandblasted IP---.0802
Sandblasted + fine straightened style IP---.0803
Ordering example: IP 070.0800-2800 (I-Profile with inside measurement 70 mm, length 2800 mm)
Dimensions in mm.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Material 18MnNb 6 with plenty more load capacity by add-on of Niob (Nb)
| Designation | Select all | Lead Time * | Weight (kg/m) | ||
|---|---|---|---|---|---|
|
|
2 | 21 |
|
||
|
|
2 | 19,40 |
|
||
|
|
2 | 25,30 |
|
||
|
|
2 | 34 |
|
||
|
|
2 | 40,80 |
|
||
|
|
2 | 51,50 |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | Select all | B | D | H | I | T | ||
|---|---|---|---|---|---|---|---|---|
|
|
72 ±1 | 14 ±0,5 | 86,50 | 62,7 +0,8 | 12 ±0,5 |
|
||
|
|
65 ±1 | 9 ±0,5 | 98 | 70 +1 | 14 ±0,5 |
|
||
|
|
66 ±1 | 11 ±0,5 | 113,90 | 77,9 +1 | 18 ±0,5 |
|
||
|
|
81 ±1,25 | 12 ±0,5 | 129,60 | 88,6 +1 | 20,5 ±0,5 |
|
||
|
|
83 ±1 | 14 ±0,5 | 152,40 | 108,4 ±0,5 | 22 ±0,5 |
|
||
|
|
90 ±1,3 | 15 ±0,5 | 175 ±0,5 | 123,8 ±0,5 | 25,6 ±0,5 |
|
-
-
TR---.0300
Standard Roller, adj. of the axial clearance, for profile UP---.0700 -
TR---.0360
Standard Roller with Oilamide Sliding Block, for profile UP---.0700 -
STR---.6200
Standard Roller with axial bearing, for profile UP---.0700 -
SFE---.5200
Heavy Duty Guideway Unit
