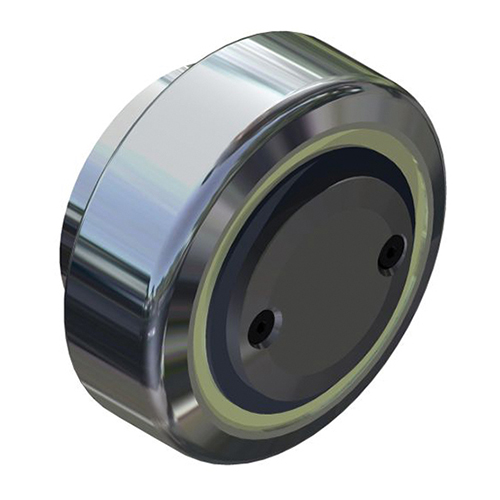

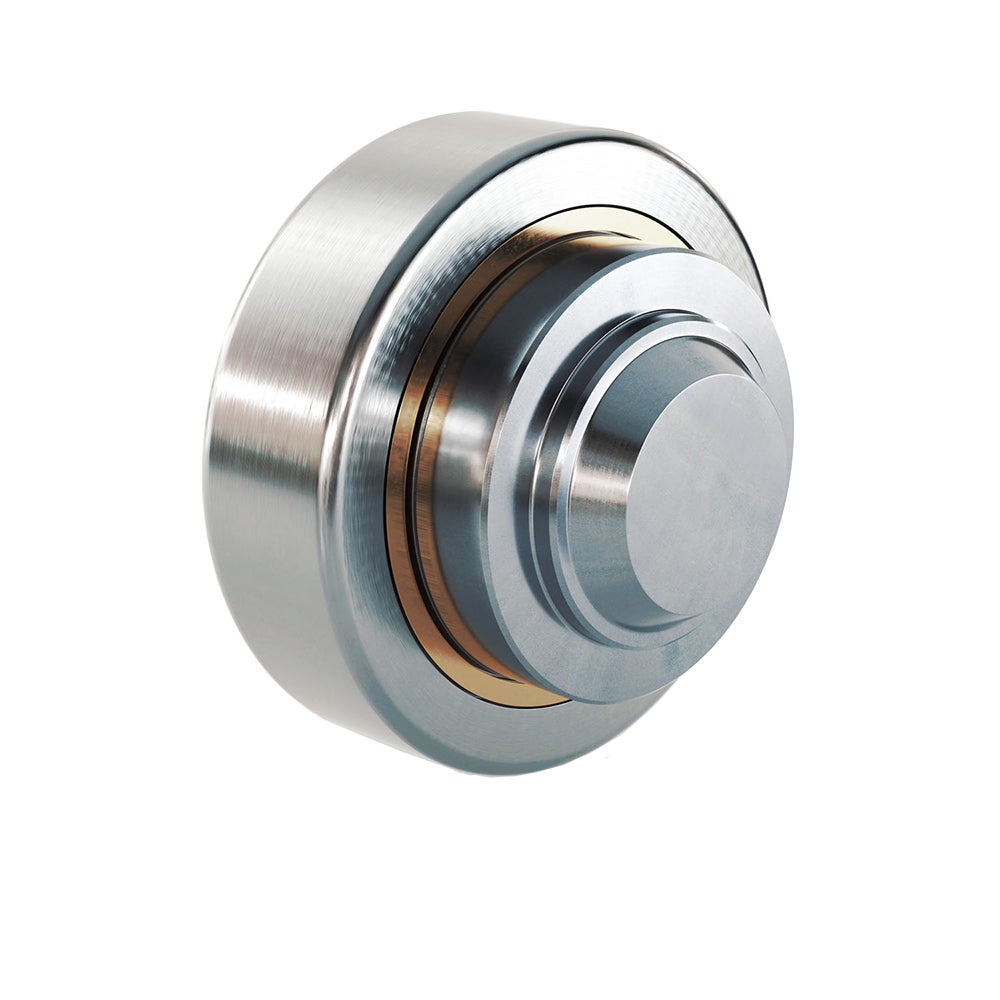

TR---.0360

STOCK ITEM
• Lubricated for lifetime

Use profile UP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

U-Rail_Technical_Information.pdf
U-Rail_Order_Codes.pdf
CAD-Drawing
Designation Select all Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile CAD Compare
/storage/00FF71766345F754877015615E690B30FEDB198F86B3E70BB6EB1AD2BD9FFB1D/33c4552d32694cd1ab0a118cdcac2093/step/media/1b8c02f425b74d2d835d0eff5dd32840/CAD_TR050.0360_Standard-Roller_Rollco.step 2 5300 2000 24500 UP---.0700
Get quote
/storage/7CAA25100DC35442B266DEFDD104AE55F8A7404D0BD6DC3FAFA60B8BA4678A52/66071463322b4a58a7282b28e01e453c/step/media/2fd4c95fc19c4f33b40c0f37324428e1/CAD_TR060.0360_Standard-Roller_Rollco.step 1 8870 2950 31000 UP---.0700
Get quote
/storage/17FA409049ADB7144832EDCD8B4813E43791975CA99FB7687C02A8B5EF9C67E2/6843bea295694c449c2cb3e65633c569/step/media/21d2941eacde4160bfe24da82ec4ec70/CAD_TR070.0360_Standard-Roller_Rollco.step 2 11400 3150 45500 UP---.0700
Get quote
/storage/1722E3854B382520F4D90C08BF838046D70769B369561F9120A562CD82615730/cef6ece206db4e368657f84123cf12f1/step/media/8cf0d13ea5ab4d7aa05ccf067e3e8f5e/CAD_TR080.0360_Standard-Roller_Rollco.step 2 12870 5000 48000 UP---.0700
Get quote
/storage/393CA0994F4AAFBD4FCAA5E5EC4F092977D044B8AE5A37A000DC158332C3C93A/04b4036f5cf046acb8cd47f225130148/step/media/caa3b472c4dc49b78ff19fcb46a44e96/CAD_TR090.0360_Standard-Roller_Rollco.step 2 20370 5100 68000 UP---.0700
Get quote
/storage/6207E0448527B88A29D251E96D6789BA0B407807E03F866DB06299F1BC883571/ea5798a01f014fd6b75561b4f01e1160/step/media/68f76c9f38114cd99c0e6172e0c4db0b/CAD_TR110.0360_Standard-Roller_Rollco.step 2 24060 8900 81000 UP---.0700
Get quote
/storage/8E78F8AB99ECAABC90C0F3B9D7A31023F57793935B1D03B6FCA04FEC66F82F8F/d6b57dc45f3846d8a2b86304c6e56d39/step/media/5009591a1ca44ff3a9eb42f49c3ed6b2/CAD_TR120.0360_Standard-Roller_Rollco.step 2 33440 9800 110000 UP---.0700
Get quote
/storage/7D102F98DFD80C5B9B83F4F7F3B7B790090813ED2E364424C325AE7D708F9932/651ed4b0bc5d4519be335ea3f0ab57dd/step/media/6a264a7ce117447db23a5a1d5cc229db/CAD_TR150.0360_Standard-Roller_Rollco.step 2 51940 17400 151000 UP---.0700
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

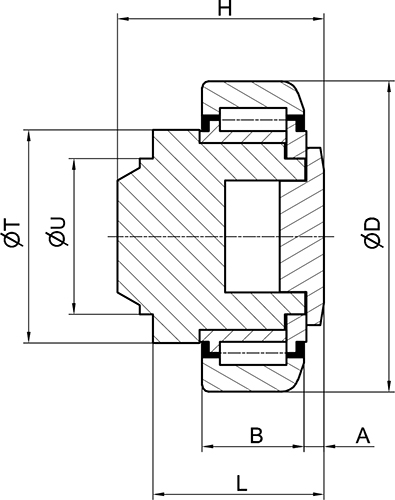

Designation Select all A B D H L T U CAD Compare
/storage/00FF71766345F754877015615E690B30FEDB198F86B3E70BB6EB1AD2BD9FFB1D/33c4552d32694cd1ab0a118cdcac2093/step/media/1b8c02f425b74d2d835d0eff5dd32840/CAD_TR050.0360_Standard-Roller_Rollco.step 6 17 52.5 34 28 40 30
Get quote
/storage/7CAA25100DC35442B266DEFDD104AE55F8A7404D0BD6DC3FAFA60B8BA4678A52/66071463322b4a58a7282b28e01e453c/step/media/2fd4c95fc19c4f33b40c0f37324428e1/CAD_TR060.0360_Standard-Roller_Rollco.step 5.5 20 62.5 43 33 42 30
Get quote
/storage/17FA409049ADB7144832EDCD8B4813E43791975CA99FB7687C02A8B5EF9C67E2/6843bea295694c449c2cb3e65633c569/step/media/21d2941eacde4160bfe24da82ec4ec70/CAD_TR070.0360_Standard-Roller_Rollco.step 6.5 23 70.1 48 40 48 35
Get quote
/storage/1722E3854B382520F4D90C08BF838046D70769B369561F9120A562CD82615730/cef6ece206db4e368657f84123cf12f1/step/media/8cf0d13ea5ab4d7aa05ccf067e3e8f5e/CAD_TR080.0360_Standard-Roller_Rollco.step 7 23 77.7 50.5 39.5 54 40
Get quote
/storage/393CA0994F4AAFBD4FCAA5E5EC4F092977D044B8AE5A37A000DC158332C3C93A/04b4036f5cf046acb8cd47f225130148/step/media/caa3b472c4dc49b78ff19fcb46a44e96/CAD_TR090.0360_Standard-Roller_Rollco.step 7 30 88.4 61 48 59 45
Get quote
/storage/6207E0448527B88A29D251E96D6789BA0B407807E03F866DB06299F1BC883571/ea5798a01f014fd6b75561b4f01e1160/step/media/68f76c9f38114cd99c0e6172e0c4db0b/CAD_TR110.0360_Standard-Roller_Rollco.step 8 31 107.7 69 55 71 60
Get quote
/storage/8E78F8AB99ECAABC90C0F3B9D7A31023F57793935B1D03B6FCA04FEC66F82F8F/d6b57dc45f3846d8a2b86304c6e56d39/step/media/5009591a1ca44ff3a9eb42f49c3ed6b2/CAD_TR120.0360_Standard-Roller_Rollco.step 8 37 123 75.8 59.5 80 60
Get quote
/storage/7D102F98DFD80C5B9B83F4F7F3B7B790090813ED2E364424C325AE7D708F9932/651ed4b0bc5d4519be335ea3f0ab57dd/step/media/6a264a7ce117447db23a5a1d5cc229db/CAD_TR150.0360_Standard-Roller_Rollco.step 8 45 149 82 62 103 60
Get quote
