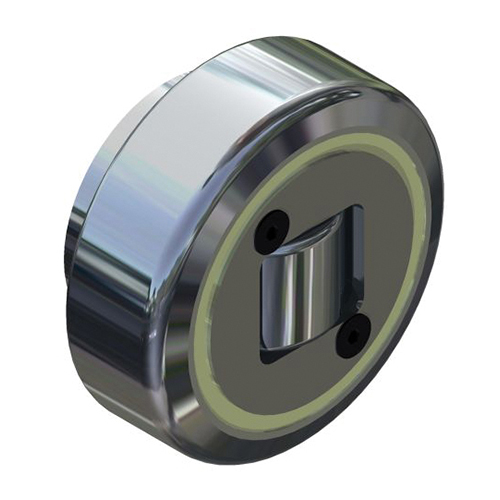

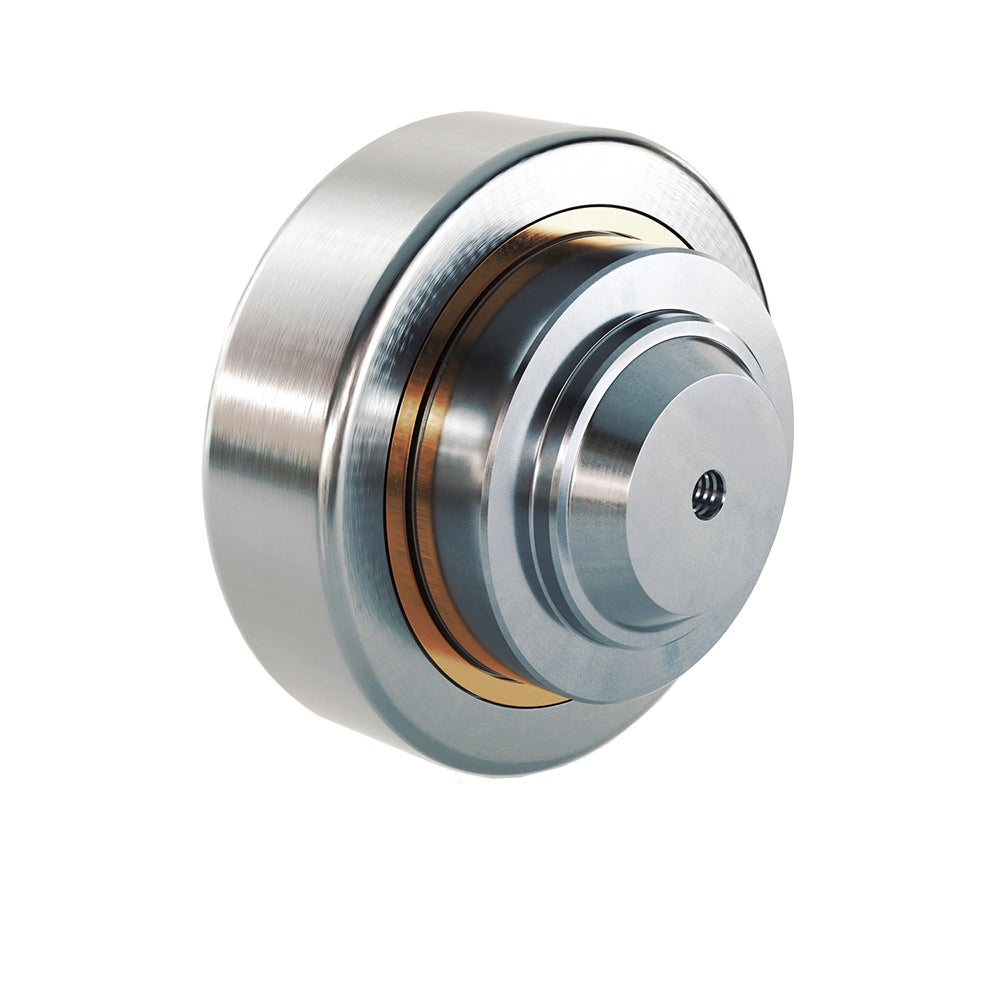

XTR---.0200

• Up to 60% higher load capacity
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting

Use profile XUP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

U-Rail_Technical_Information.pdf
U-Rail_Order_Codes.pdf
CAD-Drawing
Designation Select all Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile CAD Compare
/storage/4974AA910E290F962108CD1BD3B8C7039DF3214C946FE7C57914532B8C8FD4E6/defc85540740469e9306b13a0c1a81b8/step/media/6fc789adc285465ca49d6a20f2f1503b/CAD_XTR060.0200_Heavy-Roller_Rollco.step 2 15390 3800 11000 31000 XUP---.0700
Get quote
/storage/3698171C0BFCC803062F170F2C7AD93F8DDE877FD9C32FB1541246F64CBD6F22/b96ab03136a84ec59c732b9032601086/step/media/bbab1acf7e174da78297a040a7a0b3b2/CAD_XTR070.0200_Heavy-Roller_Rollco.step 2 16430 4100 13000 45500 XUP---.0700
Get quote
/storage/FAEBB12F0E345BE3726FB643BD3B6FEA4A1DF6C9E21485AE3B8A31327C24BAF9/ea82167776e240a2befe1b5d6da3f47b/step/media/f0981688361a4fc9b8e9e77d64091669/CAD_XTR080.0200_Heavy-Roller_Rollco.step 2 18210 6500 18000 48000 XUP---.0700
Get quote
/storage/25CAB8D557C65B5637B3A91B3E6F09CE978DC91D5D90688F83BB6A62E1788E8C/30fe4d5e1bc346f4a59c1f41763d1776/step/media/525d6f358466415d9e19ecfa7318f286/CAD_XTR090.0200_Heavy-Roller_Rollco.step 2 31680 6600 23000 68000 XUP---.0700
Get quote
/storage/7CCCE9F62E21A63F9E2A5017BAE568C98CDB05C51738671F18A21F8EC5F17B1E/71d54ee5dde948049235d1010cbef7e4/step/media/eecb217bcf9645d38e3280faf0ab3bf5/CAD_XTR110.0200_Heavy-Roller_Rollco.step 2 34850 11500 31000 81000 XUP---.0700
Get quote
/storage/05ABA33DA5DB69570F162F8AB37F4A6D1F05F0D79ACF14255104CBEE9A29ACDC/bebcf0c3c1f54588bc4306e9fdec2f0b/step/media/6a2d4544621b466db732ca785a54f9ad/CAD_XTR120.0200_Heavy-Roller_Rollco.step 2 47430 12700 43000 110000 XUP---.0700
Get quote
/storage/A90E7C7CCF1412304A76094B17EEAC088AF98600A7C7CEAB062786AC907DE5D0/3bed219d14ba4628be5ac2cb0661d2e6/step/media/021127a4857d4e9197903fa37bd0de17/CAD_XTR150.0200_Heavy-Roller_Rollco.step 2 82190 22600 68000 151000 XUP---.0700
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all B D F G H L R T U CAD Compare
/storage/4974AA910E290F962108CD1BD3B8C7039DF3214C946FE7C57914532B8C8FD4E6/defc85540740469e9306b13a0c1a81b8/step/media/6fc789adc285465ca49d6a20f2f1503b/CAD_XTR060.0200_Heavy-Roller_Rollco.step 20 65.5 7 9 37.5 30.5 20 42 30
Get quote
/storage/3698171C0BFCC803062F170F2C7AD93F8DDE877FD9C32FB1541246F64CBD6F22/b96ab03136a84ec59c732b9032601086/step/media/bbab1acf7e174da78297a040a7a0b3b2/CAD_XTR070.0200_Heavy-Roller_Rollco.step 23 73.8 8 10.5 44 36 22 48 35
Get quote
/storage/FAEBB12F0E345BE3726FB643BD3B6FEA4A1DF6C9E21485AE3B8A31327C24BAF9/ea82167776e240a2befe1b5d6da3f47b/step/media/f0981688361a4fc9b8e9e77d64091669/CAD_XTR080.0200_Heavy-Roller_Rollco.step 23 81.7 11.5 10.5 48 36.5 24 54 40
Get quote
/storage/25CAB8D557C65B5637B3A91B3E6F09CE978DC91D5D90688F83BB6A62E1788E8C/30fe4d5e1bc346f4a59c1f41763d1776/step/media/525d6f358466415d9e19ecfa7318f286/CAD_XTR090.0200_Heavy-Roller_Rollco.step 30 92.4 13 10.5 57 44 26 59 45
Get quote
/storage/7CCCE9F62E21A63F9E2A5017BAE568C98CDB05C51738671F18A21F8EC5F17B1E/71d54ee5dde948049235d1010cbef7e4/step/media/eecb217bcf9645d38e3280faf0ab3bf5/CAD_XTR110.0200_Heavy-Roller_Rollco.step 31 111.4 14 20 69 55 34 71 60
Get quote
/storage/05ABA33DA5DB69570F162F8AB37F4A6D1F05F0D79ACF14255104CBEE9A29ACDC/bebcf0c3c1f54588bc4306e9fdec2f0b/step/media/6a2d4544621b466db732ca785a54f9ad/CAD_XTR120.0200_Heavy-Roller_Rollco.step 37 126.8 16.3 14 72.3 56 40 80 60
Get quote
/storage/A90E7C7CCF1412304A76094B17EEAC088AF98600A7C7CEAB062786AC907DE5D0/3bed219d14ba4628be5ac2cb0661d2e6/step/media/021127a4857d4e9197903fa37bd0de17/CAD_XTR150.0200_Heavy-Roller_Rollco.step 45 153.1 20 8.5 78.5 58.5 50 103 60
Get quote

  • BQ---.1000
    Fixing Element Square - welded with the combined roller

  • BR---.1100
    Fixing Element Rectangular - welded with the combined roller

  • PAS ---.0360
    Roller combined fixed with oilamide sliding block for profile UP---.0730

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0300
    Standard Roller, adj. of the axial clearance, for profile UP---.0700
  • STOCK ITEM

    TR---.0360
    Standard Roller with Oilamide Sliding Block, for profile UP---.0700

  • STR---.6200
    Standard Roller with axial bearing, for profile UP---.0700

  • XTR---.0300
    Heavy Roller combined adjustable w. insert washer, for profile XUP---.0700

  • TR---.0390
    Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780

  • XSTR---.6200
    Heavy Roller axis, extra sustainable, for profile XUP---.0700
