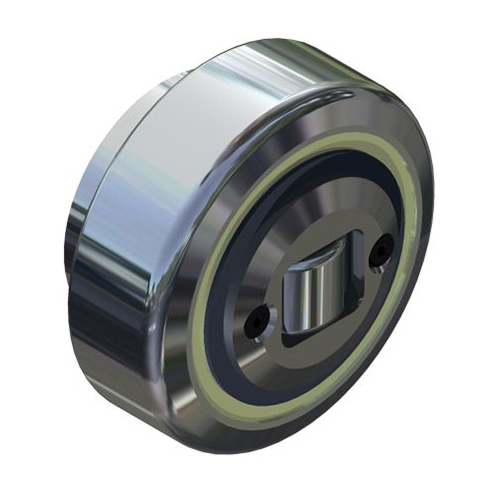

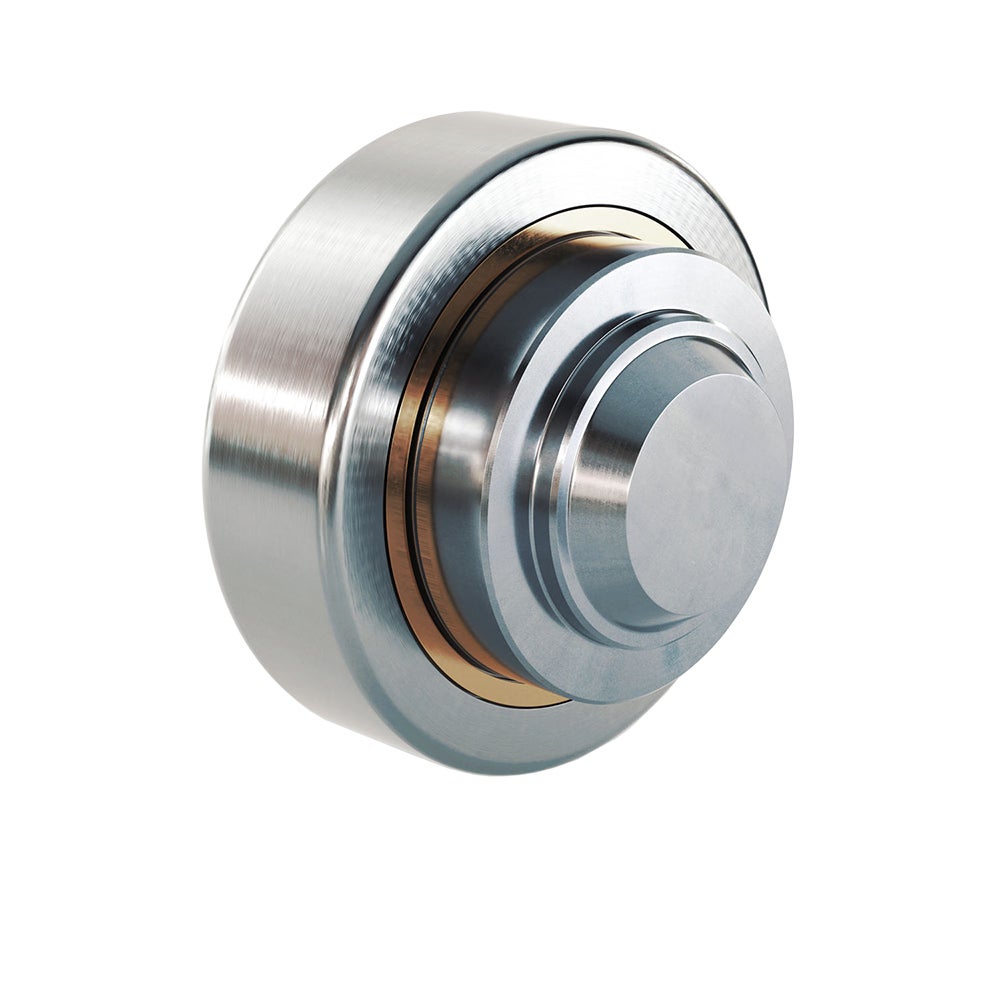

XTR---.0300

• Combined – adjustable with insert washer
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Adjustment of dimension A by using a shim

Use profile XUP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

U-Rail_Technical_Information.pdf
U-Rail_Order_Codes.pdf
CAD-Drawing
Designation Select all Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile CAD Compare
/storage/C3372ACA031289875B5FBB29669F3391F7D093DF897540608ACD0DB326C497DE/222c42faab18496ca7c4dce07030a59f/step/media/e88e09a2b8eb4858982f2526335fef2f/CAD_XTR060.0300_Heavy-Roller_Rollco.step 2 15390 3800 8000 31000 XUP---.0700
Get quote
/storage/811CFA7195DD9CAED5932AF21E0568DE16AEB8D3295B177A90BEA6485A6995D1/6d2706d467664dd2a548f28777171ef0/step/media/a0fbe49e59e642b2818c6f14800dcfd5/CAD_XTR070.0300_Heavy-Roller_Rollco.step 2 16430 4100 13000 45500 XUP---.0700
Get quote
/storage/DACF4AA6E489F5C52BB8FF0F9F7273B1F99F90C1B58AC93684572DD253120458/9d9d80e75dac47018fd4a350ad2254ee/step/media/5311616abd9e43629ecb47c3b019adcd/CAD_XTR080.0300_Heavy-Roller_Rollco.step 2 18210 6500 14000 48000 XUP---.0700
Get quote
/storage/2F8960A7F8B63BFD34AAB56A6AD9A77436D72181ABA5EA83EC0C40BC8A281C81/4a87160c06cb4a3e8572dd803c65b65b/step/media/1d6c6eed63264dbf9f22eb1e95803cf4/CAD_XTR090.0300_Heavy-Roller_Rollco.step 2 31680 6600 15000 68000 XUP---.0700
Get quote
/storage/332FABD9FE3D43D3A46B3B909B11C0B12CF0BD739456BA0ACCDC80CD0A242394/28ea571826f44767a43537f645add4f0/step/media/6bab5d2954d14ddba19b8f8766ac38e3/CAD_XTR110.0300_Heavy-Roller_Rollco.step 2 34850 11500 31000 81000 XUP---.0700
Get quote
/storage/3D48BD1A45563639D4AFC473F7312531B2C060C41BA45283B0AD4D3574B17FC7/b1a3502dae6043ec89db7b06754db6ae/step/media/9b8dda7660a746edb636fc25dc0ad8b1/CAD_XTR120.0300_Heavy-Roller_Rollco.step 2 47430 12700 31000 110000 XUP---.0700
Get quote
/storage/D54CED0F2B9C1D57836B1A97CFA4E85CAB5B23A98E85EE34A6CC2377545C92F1/383447c9a61e45449cb91c91d74429aa/step/media/59dd1954169d4aa5b9f9fa120377bebf/CAD_XTR150.0300_Heavy-Roller_Rollco.step 2 82190 22600 68000 151000 XUP---.0700
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all A B D H L T U CAD Compare
/storage/C3372ACA031289875B5FBB29669F3391F7D093DF897540608ACD0DB326C497DE/222c42faab18496ca7c4dce07030a59f/step/media/e88e09a2b8eb4858982f2526335fef2f/CAD_XTR060.0300_Heavy-Roller_Rollco.step 5.5 20 65.5 43 33 42 30
Get quote
/storage/811CFA7195DD9CAED5932AF21E0568DE16AEB8D3295B177A90BEA6485A6995D1/6d2706d467664dd2a548f28777171ef0/step/media/a0fbe49e59e642b2818c6f14800dcfd5/CAD_XTR070.0300_Heavy-Roller_Rollco.step 6.5 23 73.8 48 40 48 35
Get quote
/storage/DACF4AA6E489F5C52BB8FF0F9F7273B1F99F90C1B58AC93684572DD253120458/9d9d80e75dac47018fd4a350ad2254ee/step/media/5311616abd9e43629ecb47c3b019adcd/CAD_XTR080.0300_Heavy-Roller_Rollco.step 7 23 81.7 50.5 39.5 54 40
Get quote
/storage/2F8960A7F8B63BFD34AAB56A6AD9A77436D72181ABA5EA83EC0C40BC8A281C81/4a87160c06cb4a3e8572dd803c65b65b/step/media/1d6c6eed63264dbf9f22eb1e95803cf4/CAD_XTR090.0300_Heavy-Roller_Rollco.step 7 30 92.4 61 48 59 45
Get quote
/storage/332FABD9FE3D43D3A46B3B909B11C0B12CF0BD739456BA0ACCDC80CD0A242394/28ea571826f44767a43537f645add4f0/step/media/6bab5d2954d14ddba19b8f8766ac38e3/CAD_XTR110.0300_Heavy-Roller_Rollco.step 8 31 111.4 69 55 71 60
Get quote
/storage/3D48BD1A45563639D4AFC473F7312531B2C060C41BA45283B0AD4D3574B17FC7/b1a3502dae6043ec89db7b06754db6ae/step/media/9b8dda7660a746edb636fc25dc0ad8b1/CAD_XTR120.0300_Heavy-Roller_Rollco.step 8 37 126.8 75.8 59.5 80 60
Get quote
/storage/D54CED0F2B9C1D57836B1A97CFA4E85CAB5B23A98E85EE34A6CC2377545C92F1/383447c9a61e45449cb91c91d74429aa/step/media/59dd1954169d4aa5b9f9fa120377bebf/CAD_XTR150.0300_Heavy-Roller_Rollco.step 15 45 153.1 89 69 103 60
Get quote

  • BQ---.1000
    Fixing Element Square - welded with the combined roller

  • BR---.1100
    Fixing Element Rectangular - welded with the combined roller

  • PAS ---.0360
    Roller combined fixed with oilamide sliding block for profile UP---.0730

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0300
    Standard Roller, adj. of the axial clearance, for profile UP---.0700
  • STOCK ITEM

    TR---.0360
    Standard Roller with Oilamide Sliding Block, for profile UP---.0700

  • XTR---.0200
    Heavy Roller Fixed, up to 60% higher load capacity, for profile XUP---.0700

  • STR---.6200
    Standard Roller with axial bearing, for profile UP---.0700

  • TR---.0390
    Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780

  • XSTR---.6200
    Heavy Roller axis, extra sustainable, for profile XUP---.0700
