XTR---.0200
Heavy Roller Fixed, up to 60% higher load capacity, for profile XUP---.0700

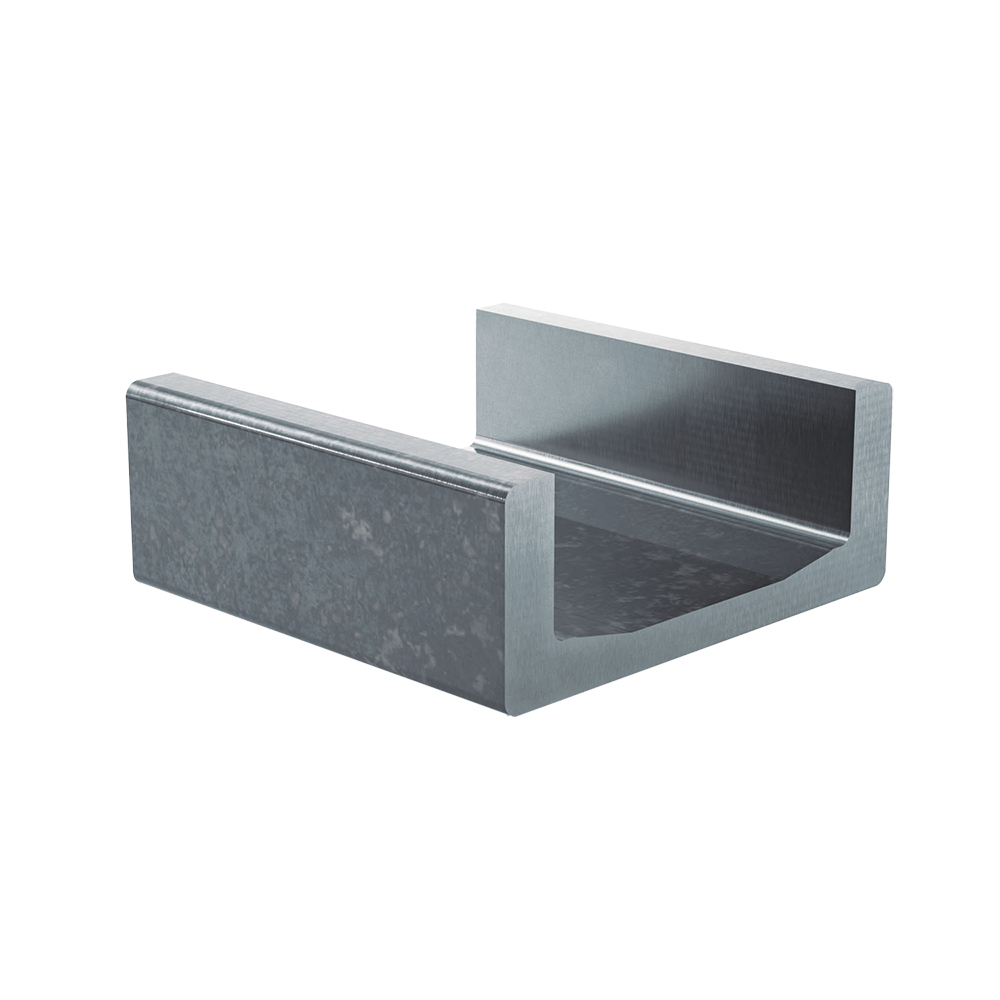

XUP---.0700
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Chamber dimension tolerance 0,2 mm
• Max. loading pressure 1060 Mpa
• Elastic limit ≥ 550 Mpa
• Tensile strength 700 ... 900 Mpa
• Special machining on request
• Max length in one piece 8,8 m
Ordering example: XUP 070.0700-2800
U-Profile with inside measurement 74,1 mm, length 2800 mm
Dimensions in mm.
Read more
• Extra exact
• Extra strong
• Extra long-lasting
• Chamber dimension tolerance 0,2 mm
• Max. loading pressure 1060 Mpa
• Elastic limit ≥ 550 Mpa
• Tensile strength 700 ... 900 Mpa
• Special machining on request
• Max length in one piece 8,8 m
Ordering example: XUP 070.0700-2800
U-Profile with inside measurement 74,1 mm, length 2800 mm
Dimensions in mm.
Product Information
Material: 25 MnV5mod with plenty more load capacity
Sizes Available: 60; 70; 90; 110; 150
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg/m) | |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 9.82 | ||||
|
|
|
2 | 13.97 | ||||
|
|
|
2 | 27.65 | ||||
|
|
|
2 | 34.77 | ||||
|
|
|
2 | 50.99 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | B | D | H | I | T | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
36 | 7 ±0.5 | 86.5 | 65.8 ±0.1 | 10.3 ±0.5 | ||||
|
|
|
40 ±0.8 | 7.7 ±0.5 | 103.2 | 74.1 ±0.1 | 14.5 ±0.5 | ||||
|
|
|
53 ±0.5 | 12.7 ±0.5 | 135.4 | 92.7 ±0.1 | 21.3 ±0.5 | ||||
|
|
|
61.2 ±0.8 | 14 ±0.5 | 157.2 | 111.7 ±0.1 | 22.7 ±0.5 | ||||
|
|
|
71.2 ±0.8 | 19.4 ±0.5 | 201.5 | 153.4 ±0.1 | 24 ±0.5 |
-
-
