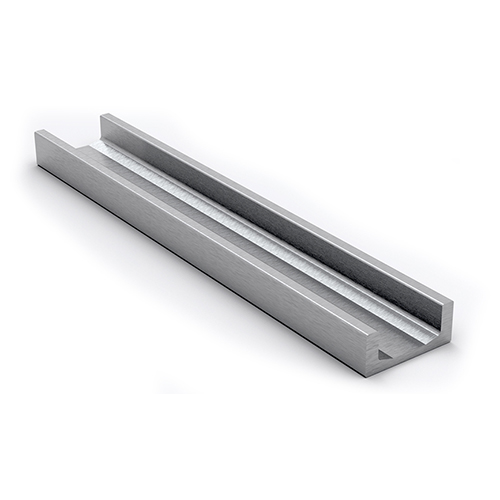

UP---.0700
• Higher wear-resistance
• Fine grained structure
• Easy to weld
• Special machining on request
• Max length in one piece 12 m
Versions of delivery:
Standard UP---.0700
Fine straightened style ± 0,3 mm/m UP---.0701
Sandblasted UP---.0702
Sandblasted + fine straightened style UP---.0703
Ordering example: UP 070.0700-2800
U-Profile with inside measurement 70,8 mm, length 2800 mm
Dimensions in mm.
Read more
• Fine grained structure
• Easy to weld
• Special machining on request
• Max length in one piece 12 m
Versions of delivery:
Standard UP---.0700
Fine straightened style ± 0,3 mm/m UP---.0701
Sandblasted UP---.0702
Sandblasted + fine straightened style UP---.0703
Ordering example: UP 070.0700-2800
U-Profile with inside measurement 70,8 mm, length 2800 mm
Dimensions in mm.
Product Information
Material: 18MnNb 6 with plenty more load capacity by add-on of Niob (Nb) and vanadium (V)
Sizes Available: 60; 70; 80; 90; 110; 120; 150; 180
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg/m) | |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 10.50 | ||||
|
|
|
2 | 14.80 | ||||
|
|
|
2 | 20.90 | ||||
|
|
|
2 | 28.60 | ||||
|
|
|
2 | 36.00 | ||||
|
|
|
2 | 42.80 | ||||
|
|
|
2 | 52.30 | ||||
|
|
|
2 | 78.51 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | B | D | H | I | T | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
36 | 7 ±0.5 | 86.5 | 62.5 +1 | 12 ±0.5 | ||||
|
|
|
40 ±0.8 | 7.7 ±0.5 | 103.2 | 70.8 ±0.5 | 16.2 ±0.5 | ||||
|
|
|
41 ±0.5 | 10.8 ±0.5 | 121.3 | 78.7 ±0.5 | 21.2 ±0.5 | ||||
|
|
|
53 ±0.5 | 12.7 ±0.5 | 135.4 | 89.4 ±0.5 | 23 ±0.5 | ||||
|
|
|
61.2 ±0.8 | 14 ±0.5 | 157.2 | 108.4 ±0.5 | 24.4 ±0.5 | ||||
|
|
|
66.2 ±0.8 | 16.2 ±0.5 | 175 | 123.8 ±0.5 | 25.6 ±0.5 | ||||
|
|
|
71.2 ±0.8 | 19.4 ±0.5 | 201.5 | 150.1 ±0.5 | 25.7 ±0.5 | ||||
|
|
|
90 ±0.6 | 19.4 ±0.5 | 252.5 | 181.1 ±0.6 | 35.7 ±0.6 |
-
-
