Stainless U-Profile UP---.0780
UP---.0780
• Stainless steel U-Profile
• Manufacturing length up to 8000 mm
Ordering example: UP 070.0780-2800
U-Profile with inside measurement 74,1 mm, length 2800 mm
Dimensions in mm.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material:
1.4301
U-Rail_Profile_Machining.pdf
CAD-Drawing
Load and weight
Designation
Select all
Lead Time *
Weight (kg/m)
UP050.0780
1
5,30
Get quote
UP070.0780
2
10,70
Get quote
UP080.0780
2
21
Get quote
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

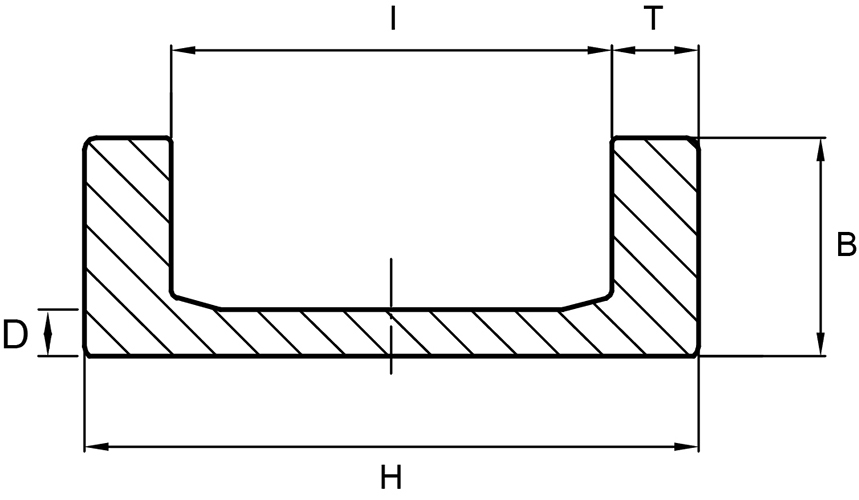

Dimensions
Designation
Select all
B
D
H
I
T
UP050.0780
31
6
65 ±0,4
53 ±0,4
6
Get quote
UP070.0780
38 ±0,8
8 ±0,5
90,5 ±0,8
71 ±0,8
9,75
Get quote
UP080.0780
41 ±0,8
10,8 ±0,8
121,3 ±0,8
78,7 ±0,7
21,30
Get quote
Related Products
TR---.0390
Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780
STR---.4200
Stainless Roller, for profile UP---.0780
KS---.3650
Clamp Console for U-profiles and precision U-profiles from size 050 up to 090
×
