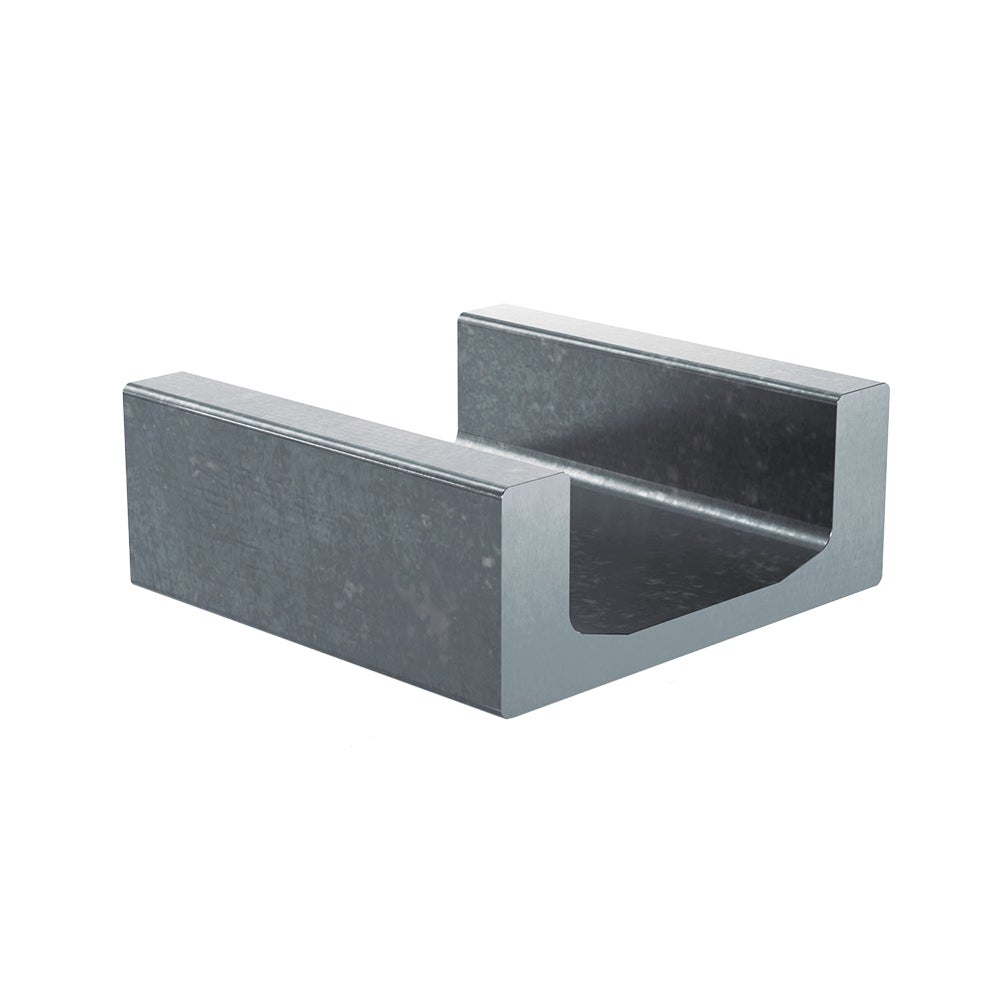

UP---.0730

STANDARD
• Higher wear-resistance
• Fine grained structure
• Easy to weld
• Special machining on request
• Max length in one piece 8 m

Ordering example: UP 050.0730 - 2800
U-Profile with inside measurement 53 mm, length 2800 mm

Dimensions in mm.
Read more

Product Information

Material: S235J2
Sizes Available: 40; 50; 60; 100; 125; 145; 160; 180
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight (kg/m)
Request quote 2 2.62
Request quote 1 5.30
Request quote 2 5.80
Request quote 2 8.30
Request quote 2 14.30
Request quote 2 16.90
Request quote 2 18.41
Request quote 2 24.10

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote B H I T
Request quote 24 48.5 40.5 4
Request quote 30 65 53 6
Request quote 33 75 63 6
Request quote 40 114 102 6
Request quote 56 142 126 8
Request quote 65 162 146 8
Request quote 73 175 159 8
Request quote 70 200 180 10

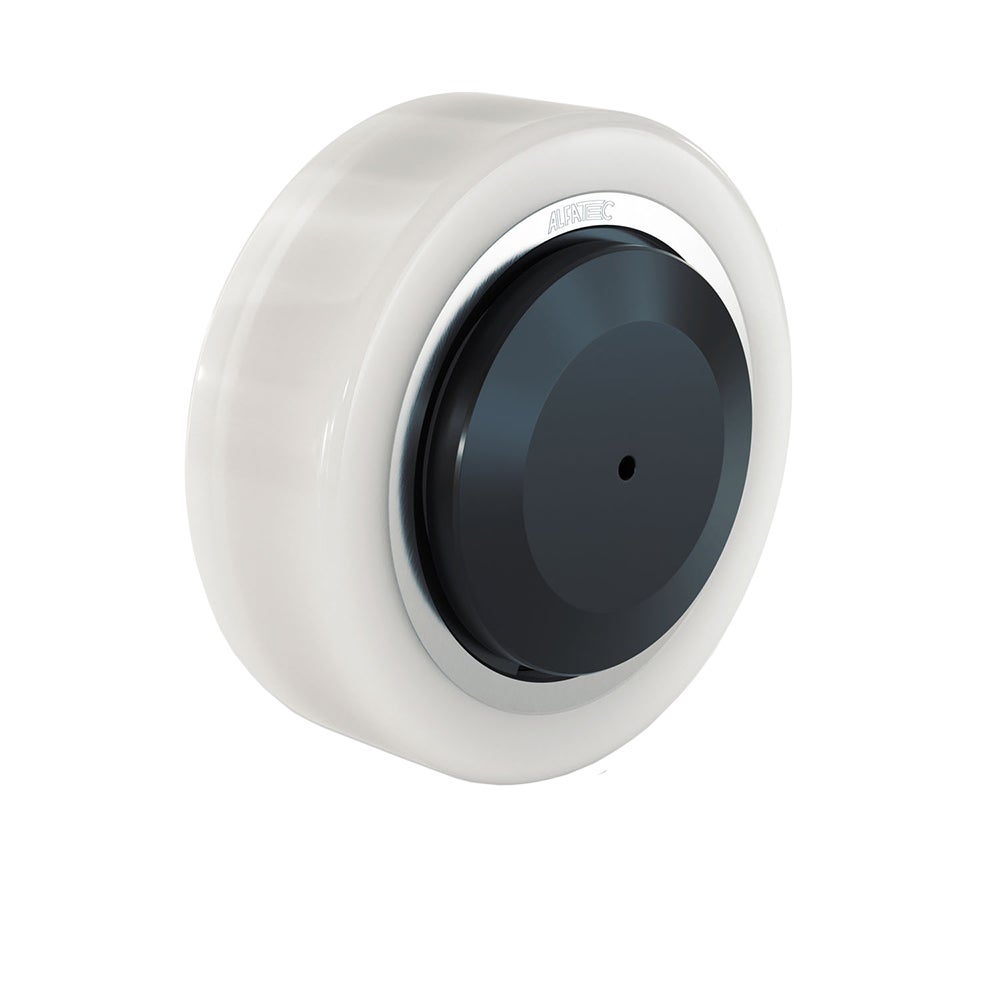

  • PAS ---.0360
    Roller combined fixed with oilamide sliding block for profile UP---.0730

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0200
    Standard Roller Fixed, for profile UP---.0700/0730

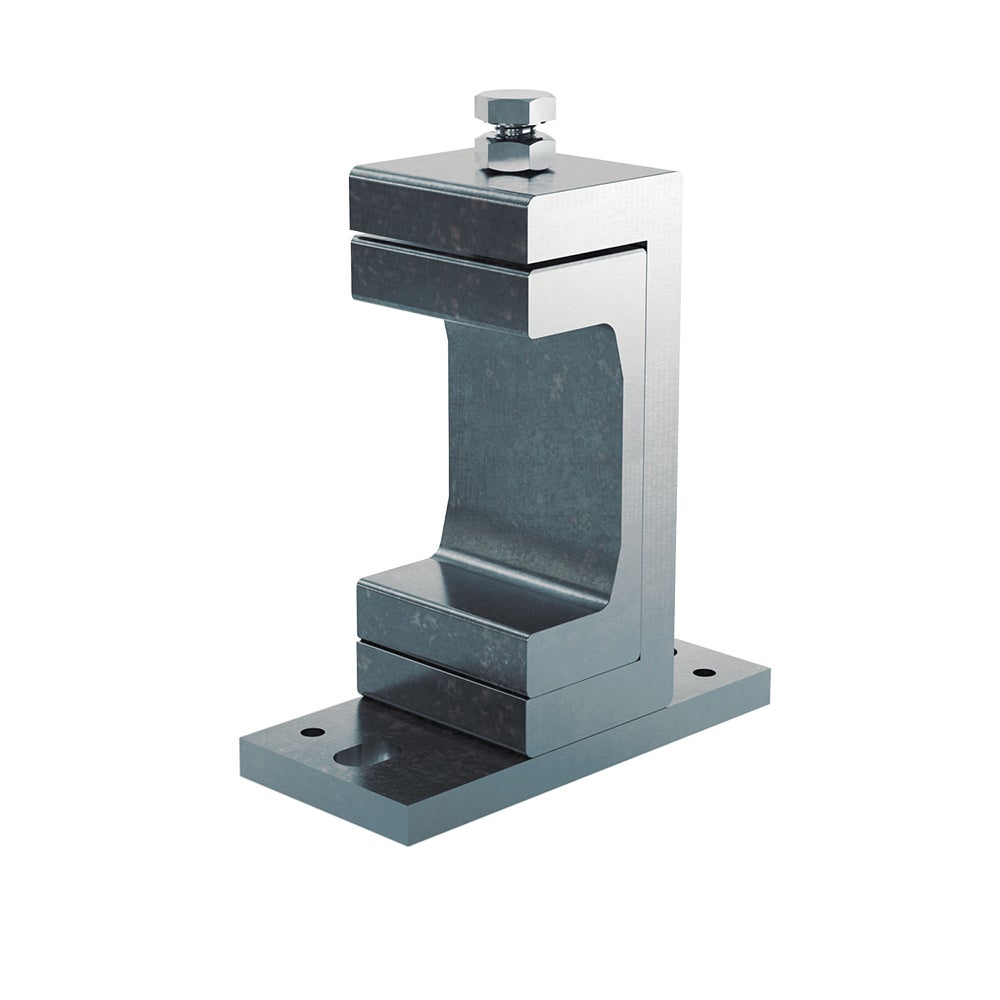

  • KS---.3650
    Clamp Console for U-profiles and precision U-profiles from size 050 up to 090
  • STANDARD

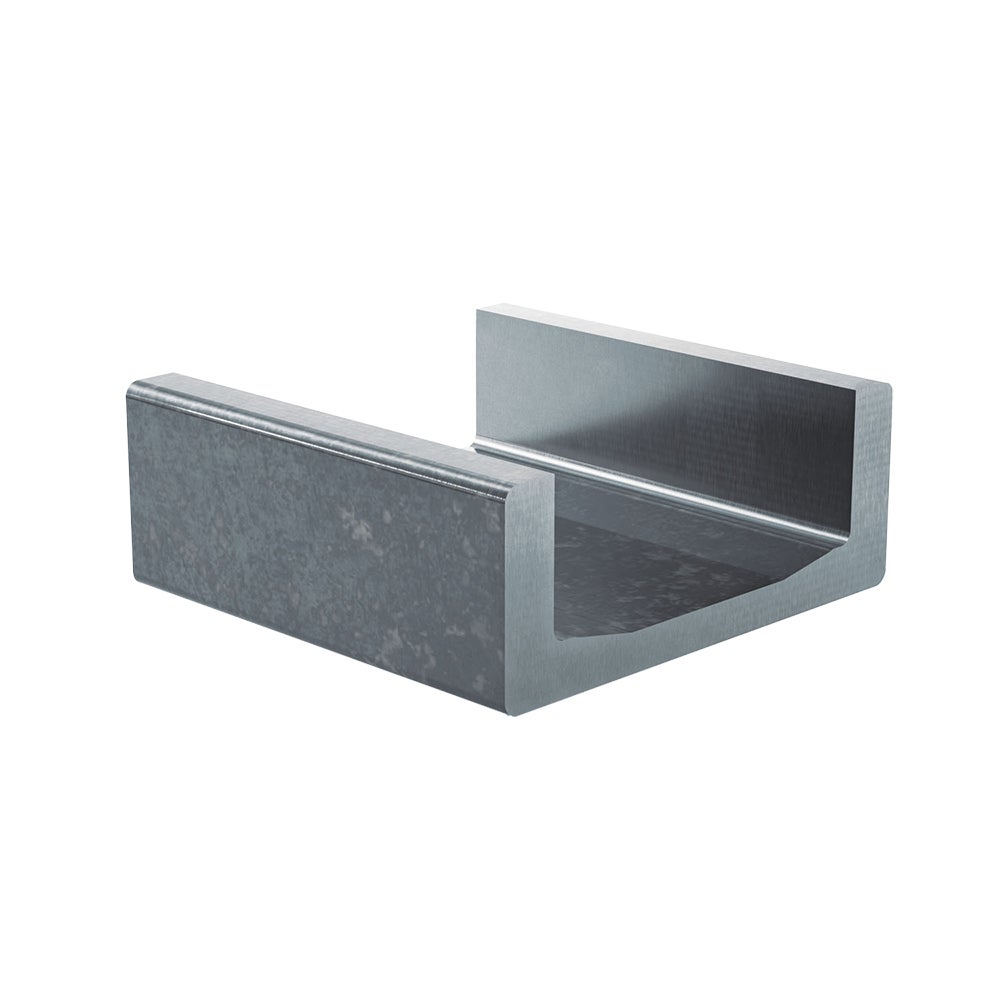

    UP---.0700
    Standard U-Profile, good weldability and available in various surfaces
  • STANDARD

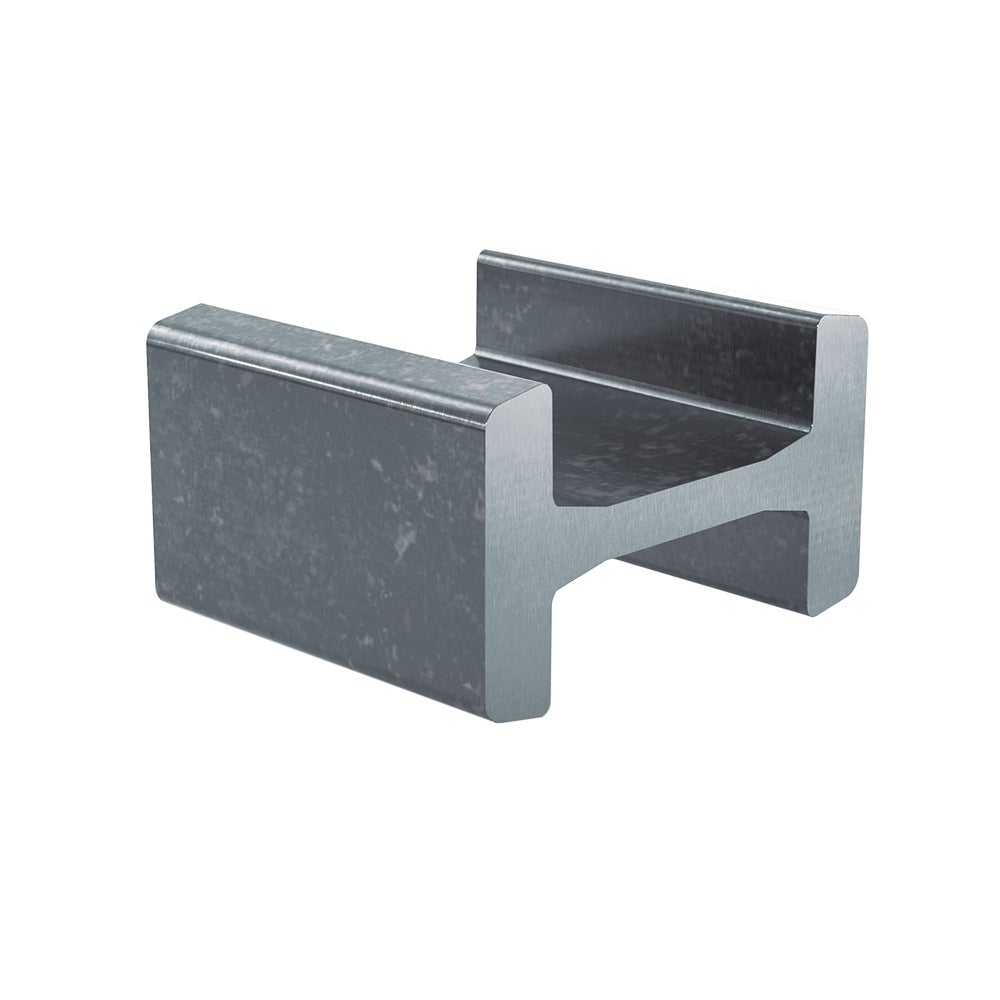

  • IP---.0800
    I-Profile, good weldability and available in various surfaces
