Linear Unit MTV 80

The MTV series describes linear units with precision ball screw drive, integrated guide rail and compact dimensions. The units use a precision ball screw, with tolerance class ISO7 (ISO5 on request), with reduced backlash of the ball nut. A corrosion-resistant protection strip, protects all the parts in the profile from dust and other contaminants.

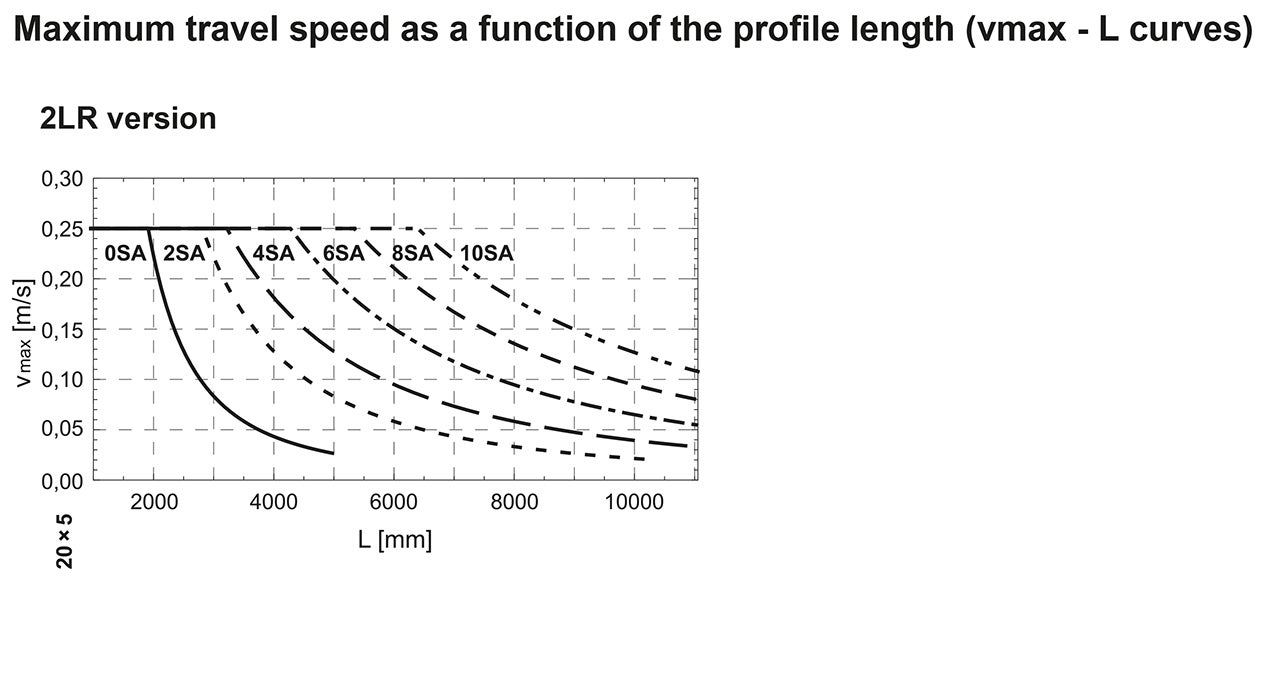

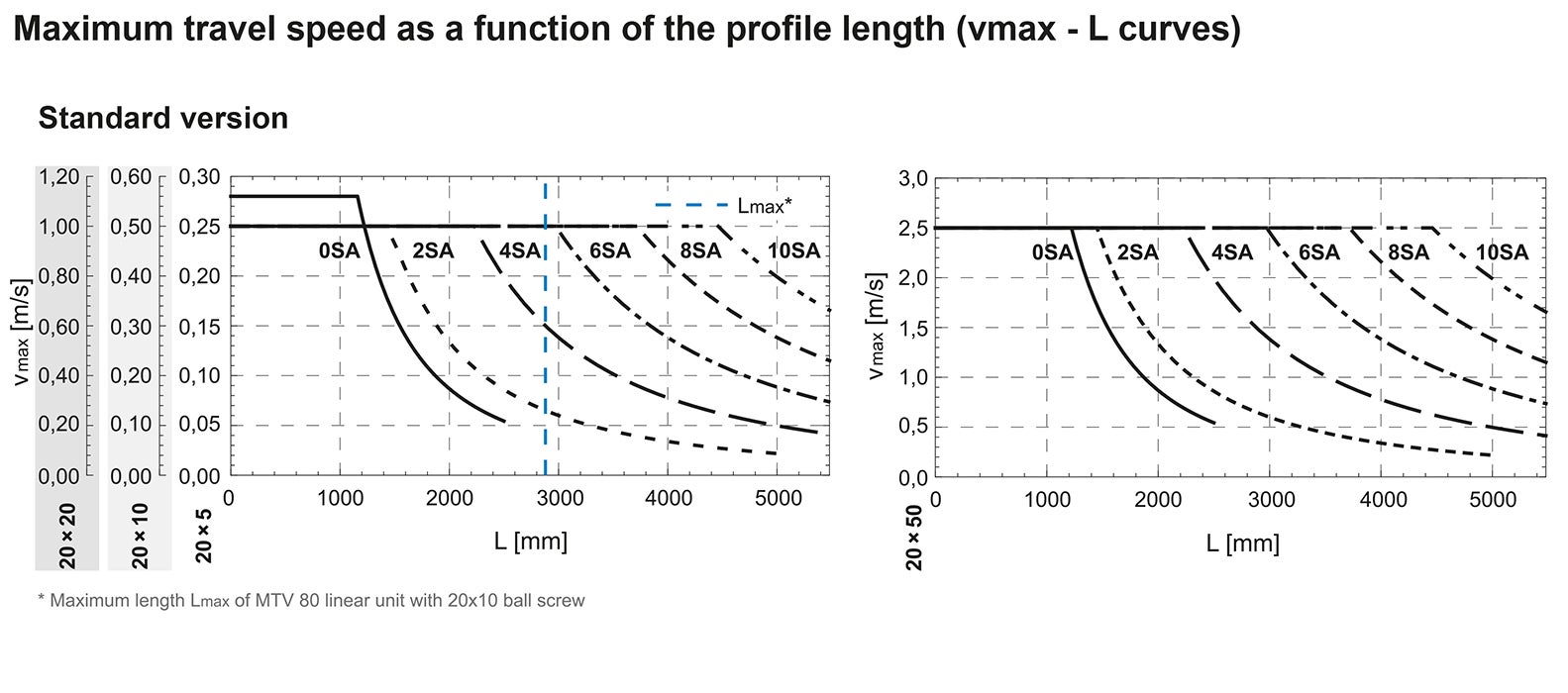

To achieve higher speeds at the same stroke of the linear unit, the ball screw support system can be integrated. With this feature vibrations and deflections of the ball screw are reduced, therefore longer strokes are possible. The linear unit with integrated support system can have a higher axial load capacity. Ball screw supports are made of high quality plastic materials with high wear resistance properties. The system enables ball screw support in horizontal or vertical positioning of the linear unit.

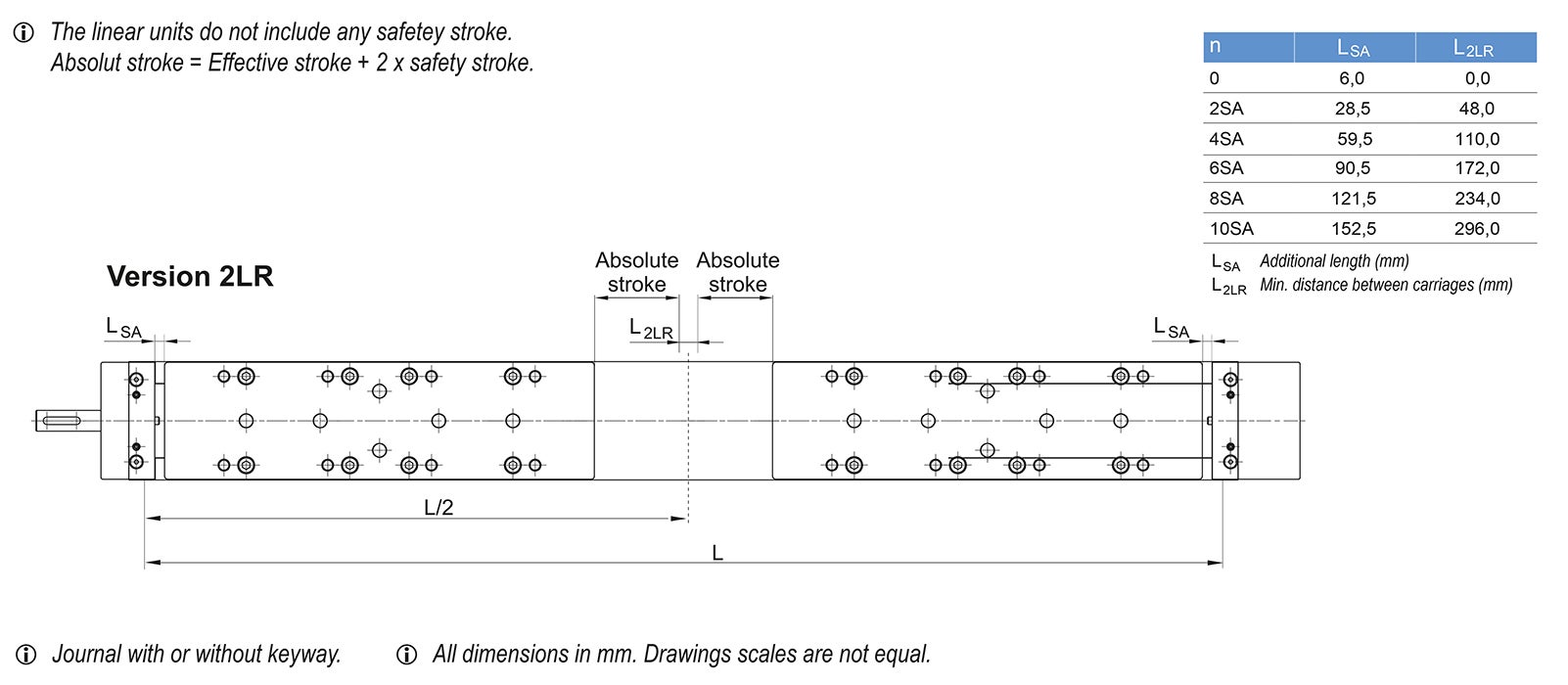

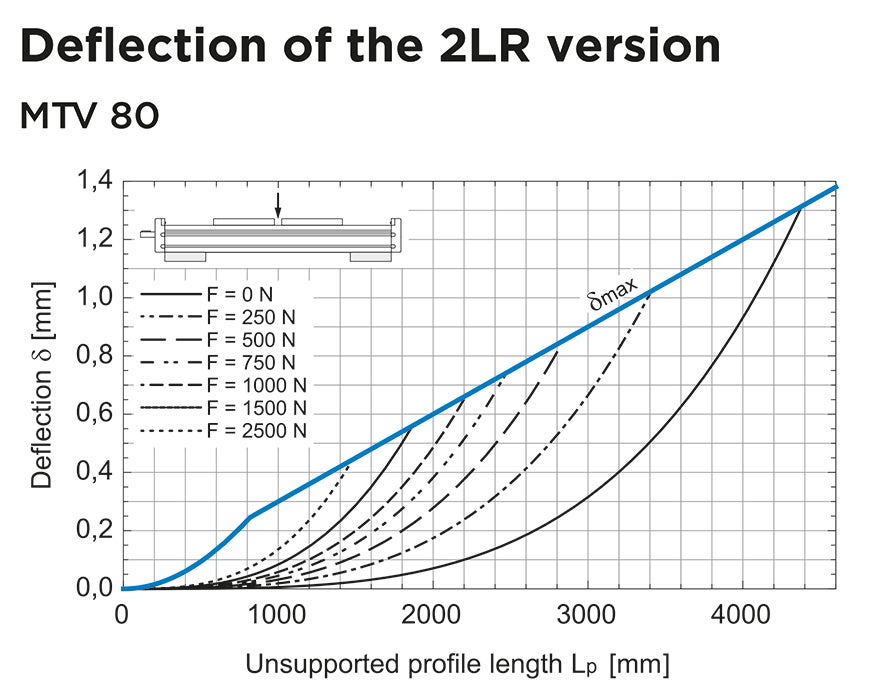

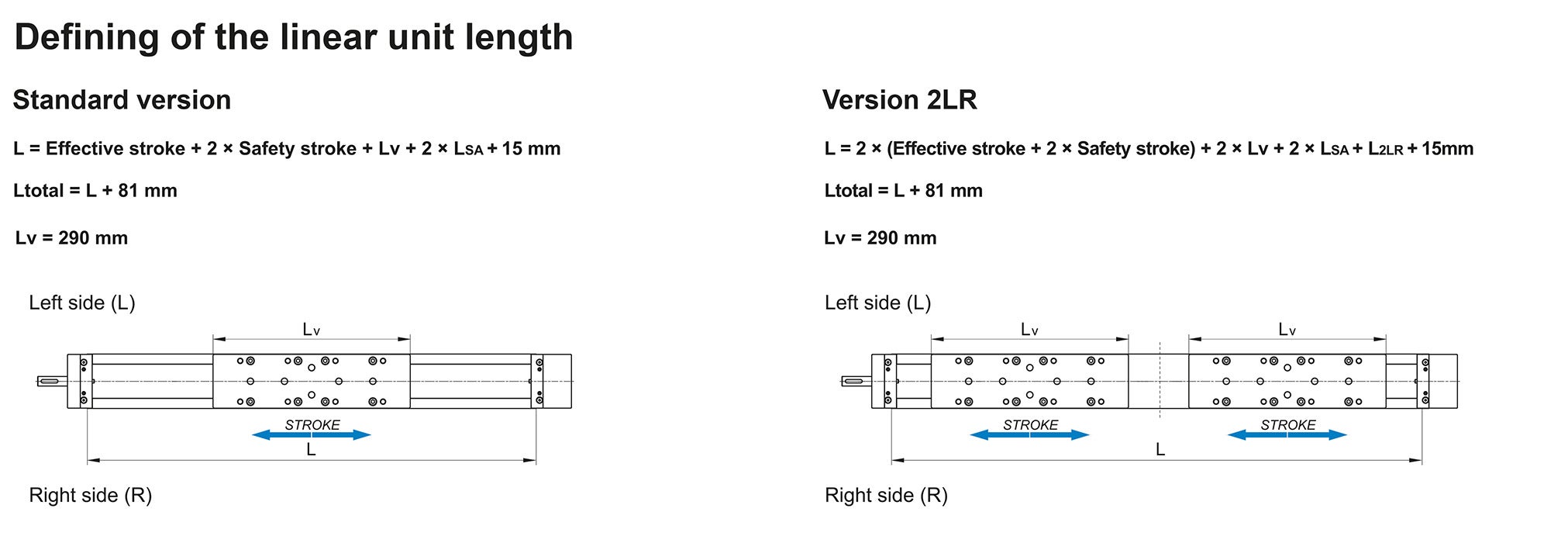

A 2LR version of MTV linear unit is available, where two carriages are moving simultaneously in opposite directions. Both right- and left-handed precision ball screws are used, which are rigidly connected. The ball screw support system can also be integrated.

For CAD-files please contact Rollco.

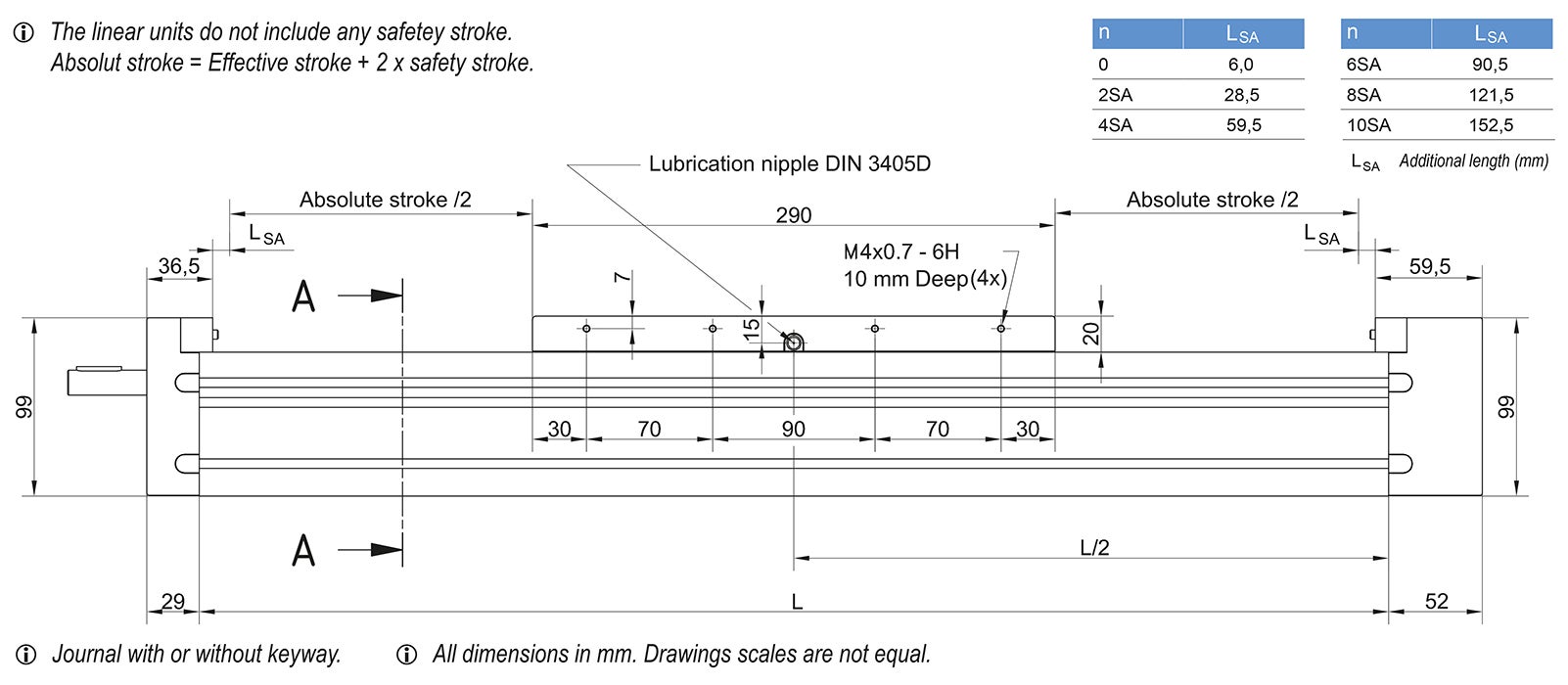

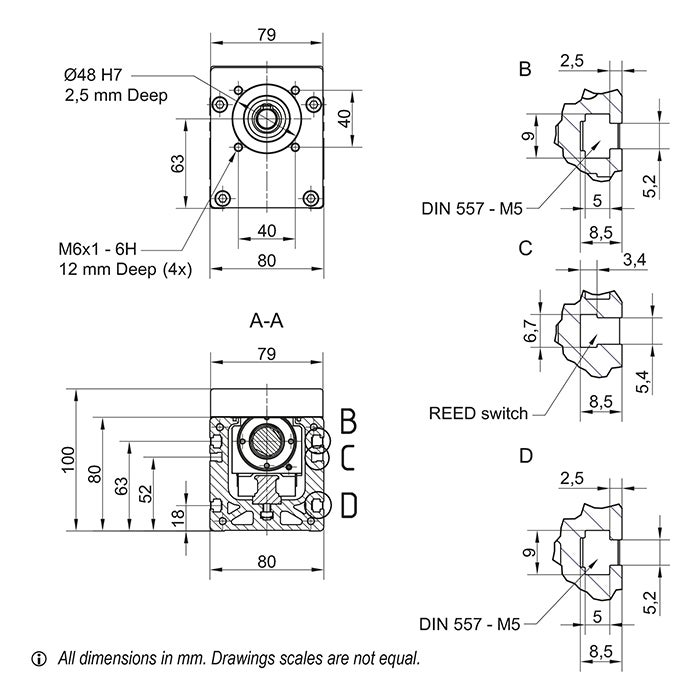

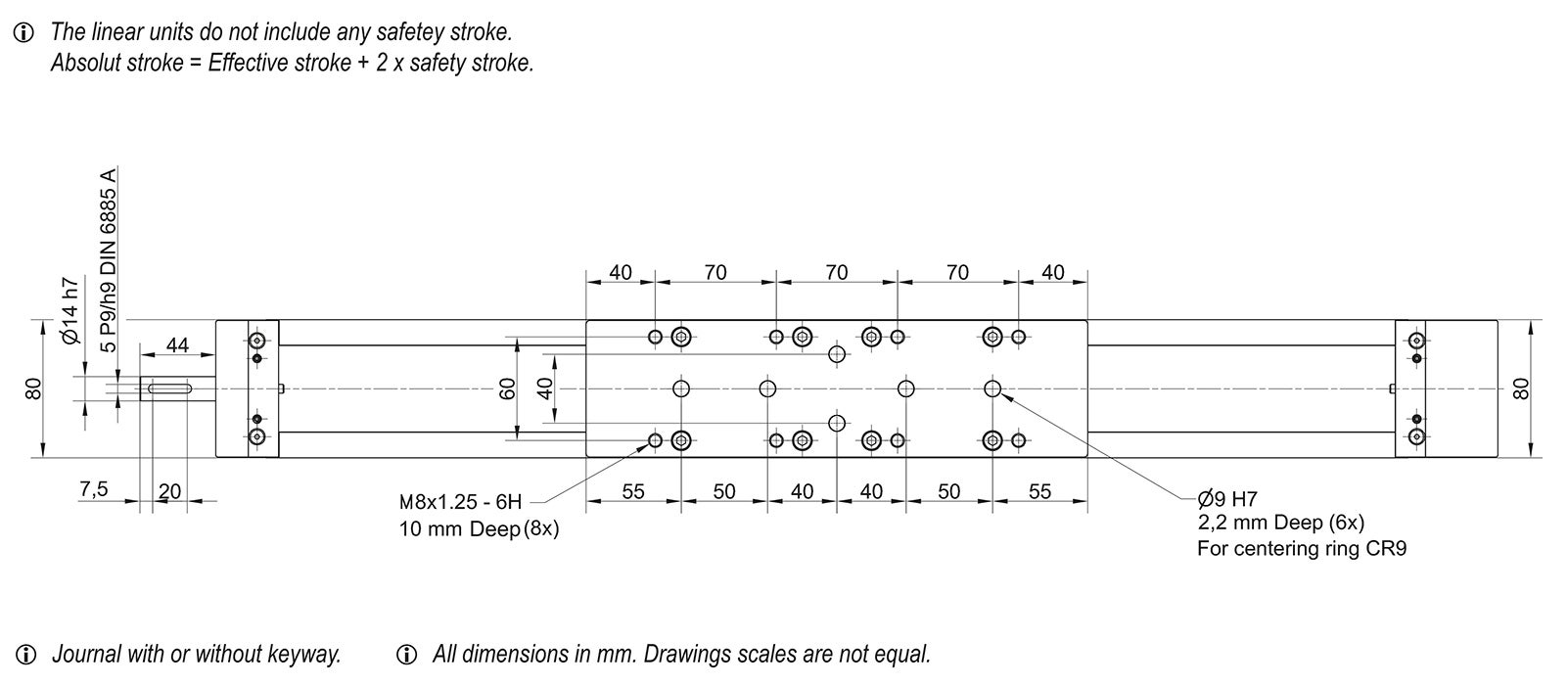

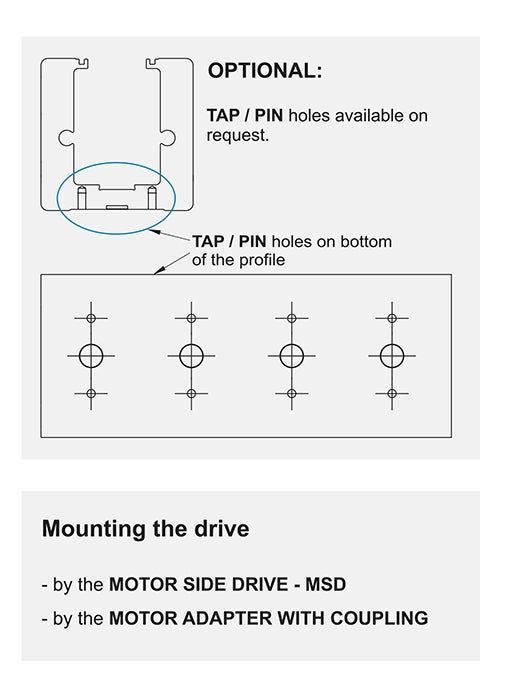

Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

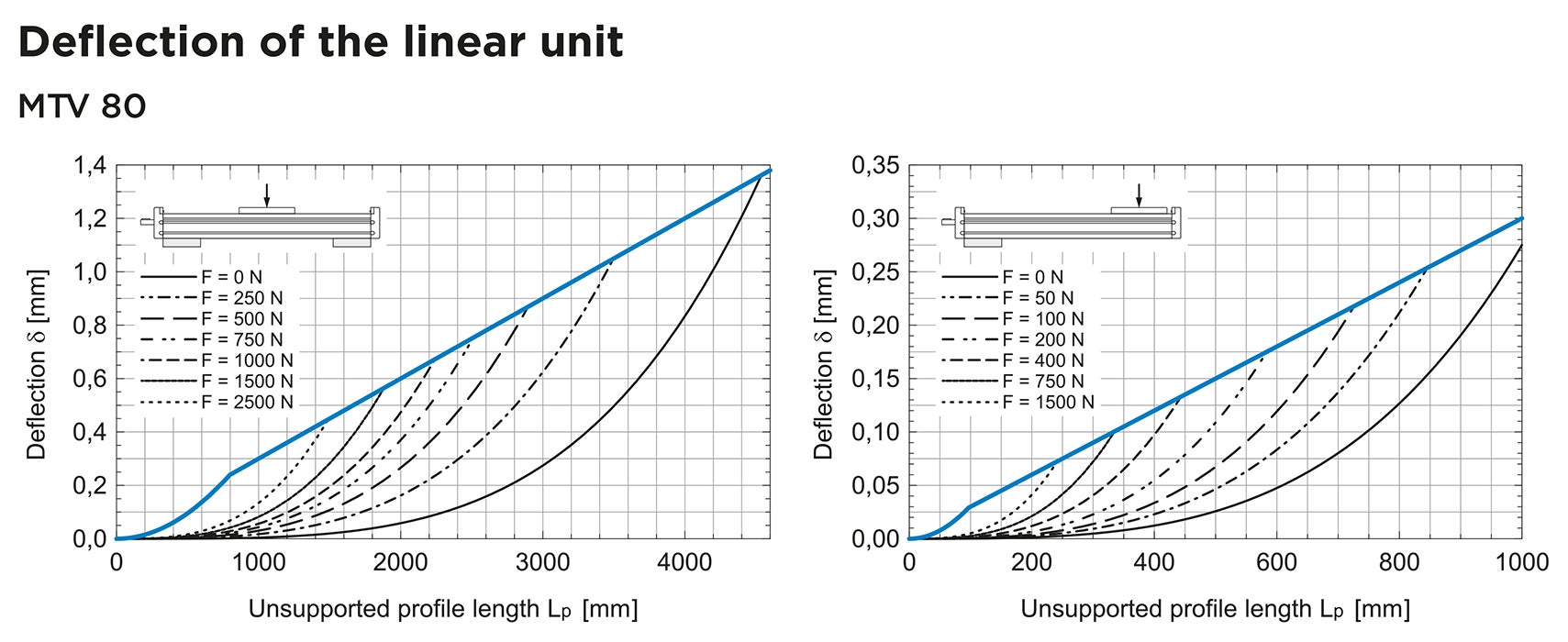

Modulus of elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%

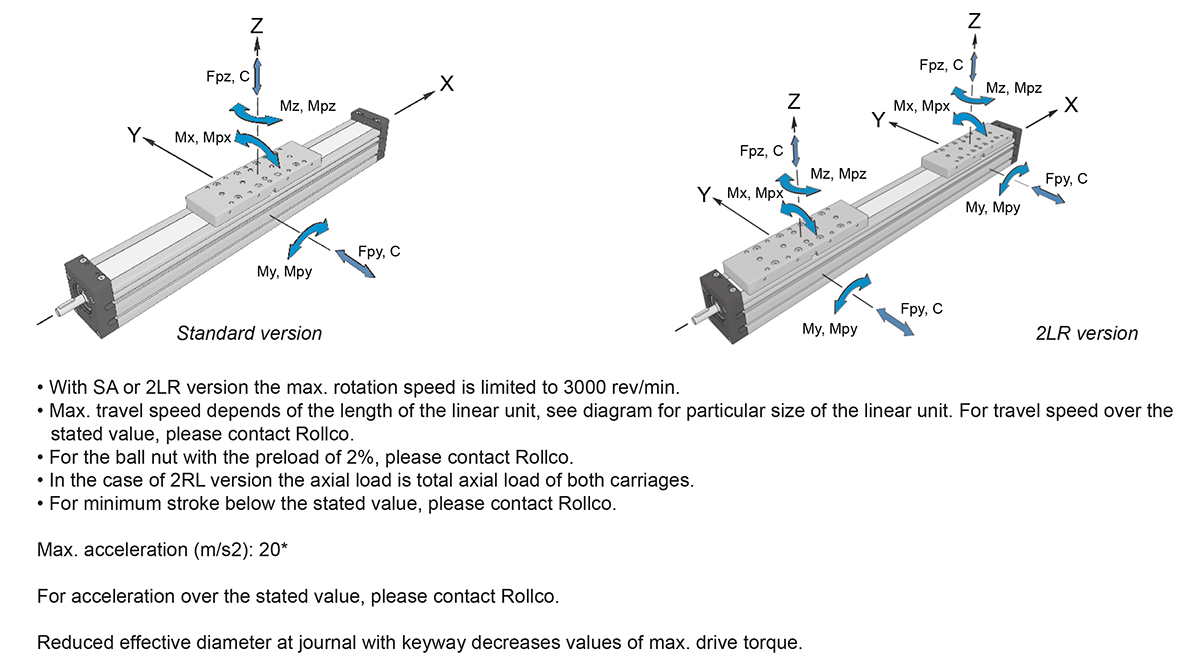

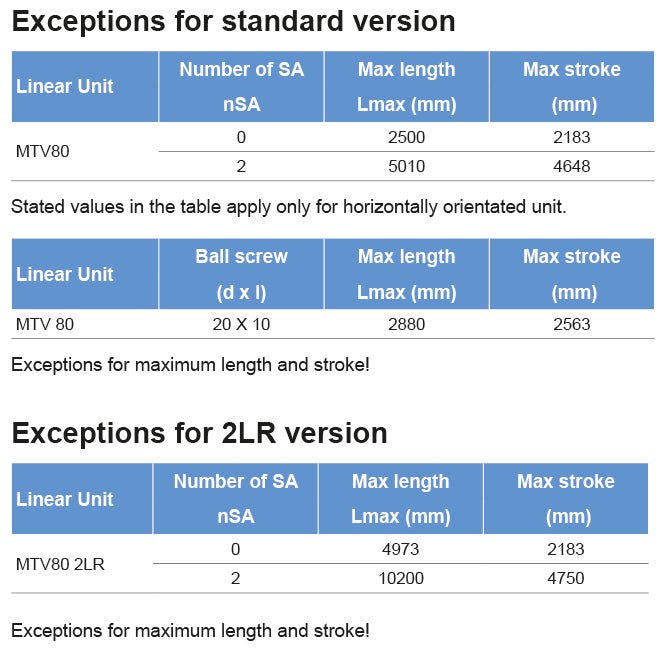

Designation Select all Lead Time * Carriage Length Lv Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Max. length Lmax Max. stroke Min. stroke
2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55
Get quote
2 290 34200 60000 370 1470 1470 8930 15070 500 384 11055 5224 55
Get quote
2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55
Get quote
2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55
Get quote
2 290 34200 60000 370 1470 1470 8930 15070 500 384 5480 5163 55
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Max. Rotational Speed (without SA) (rev/min) Max. Travel Speed (without SA) (m/s) Lead Constant (mm/rev) Ball screw (d x l) Max. repeatability precision Standard ISO7 Max. repeatability precision ISO5 Dynamic Load Capacity BS Ca (N) Max. Axial Load Fx (N) Max. Drive Torque Ma (Nm) Min. stroke Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴
3300 0.28 5 20 x 5 ±0.02 ±0.01 14800 14800 11.9 with keyway / 13 without keyway 55 144.1 192.3
Get quote
3300 0.28 5 20 x 5 ±0.02 ±0.01 14800 14800 11.9 with keyway / 13 without keyway 55 144.1 192.3
Get quote
3300 0.55 10 20 x 10 ±0.02 ±0.01 15900 13850 11.9 with keyway / 24.5 without keyway 55 144.1 192.3
Get quote
3300 1.10 20 20 x 20 ±0.02 ±0.01 16250 6930 11.9 with keyway / 24.5 without keyway 55 144.1 192.3
Get quote
3000 2.50 50 20 x 50 ±0.02 ±0.01 13000 2770 11.9 with keyway / 24.5 without keyway 55 144.1 192.3
Get quote
Designation Select all Ball screw (d x l) Number of SA ⁿSA Mass of Linear Unit (kg) Moved Mass (kg) Mass moment of inertia (10⁻⁵ kg * m²) No Load Torque (Nm) Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴
20 x 5 0 / 2 / (4 / 6 / 8 / 10) 8.2 + 0.0114 * Stroke (mm) / 8.9 + 0.0114 * Stroke (mm) / 9.7 + 0.4 * (nSA -4) + 0.0114 * Stroke (mm) 3 / 3.07 / 3.21 + 0.035 * (nSA -4) 5.6 + 0.0127 * Stroke (mm) / 6.2 + 0.0127 * Stroke (mm) / 7.0 + 0.4 * (nSA -4) + 0.0127 * Stroke (mm) 0.16 / 0.19 / 0.24 + 0.015 * (nSA -4) 144.1 192.3
Get quote
20 x 5 0 / 2 / (4 / 6 / 8 / 10) 14 .6 + 0.0228 * Stroke (mm) / 15.9 + 0.0228 * Stroke (mm) / 17.6 + 0.8 * (nSA -4) + 0.0228 * Stroke (mm) 6 / 6.14 / 6.42 + 0.07 * (nSA -4) 9.5 + 0.0254 * Stroke (mm) / 10.7 + 0.0254 * Stroke (mm) / 12.3 + 0.8 * (nSA -4) + 0.0254 * Stroke (mm) 0.32 / 0.37 / 0.48 + 0.03 * (nSA -4) 144.1 192.3
Get quote
20 x 10 0 / 2 / (4 / 6 / 8 / 10) 8.2 + 0.0114 * Stroke (mm) / 8.9 + 0.0114 * Stroke (mm) / 9.7 + 0.4 * (nSA -4) + 0.0114 * Stroke (mm) 3 / 3.07 / 3.21 + 0.035 * (nSA -4) 6.2 + 0.0127 * Stroke (mm) / 6.8 + 0.0127 * Stroke (mm) / 7.6 + 0.4 * (nSA -4) + 0.0127 * Stroke (mm) 0.17 / 0.22 / 0.33 + 0.025 * (nSA -4) 144.1 192.3
Get quote
20 x 20 0 / 2 / (4 / 6 / 8 / 10) 8.2 + 0.0114 * Stroke (mm) / 8.9 + 0.0114 * Stroke (mm) / 9.7 + 0.4 * (nSA -4) + 0.0114 * Stroke (mm) 3 / 3.07 / 3.21 + 0.035 * (nSA -4) 8.5 + 0.0127 * Stroke (mm) / 9.1 + 0.0127 * Stroke (mm) / 10.1 + 0.5 * (nSA -4) + 0.0127 * Stroke (mm) 0.18 / 0.29 / 0.50+0.055 * (nSA -4) 144.1 192.3
Get quote
20 x 50 0 / 2 / (4 / 6 / 8 / 10) 8.2 + 0.0114 * Stroke (mm) / 8.9 + 0.0114 * Stroke (mm) / 9.7 + 0.4 * (nSA -4) + 0.0114 * Stroke (mm) 3 / 3.07 / 3.21 + 0.035 * (nSA -4) 24.4 + 0.0127 * Stroke (mm) / 25.5 + 0.0127 * Stroke (mm) / 27.1 + 0.6 * (nSA -4) + 0.0127 * Stroke (mm) 0.28 / 0.55 / 1.08 + 0.0135 * (nSA -4) 144.1 192.3
Get quote
