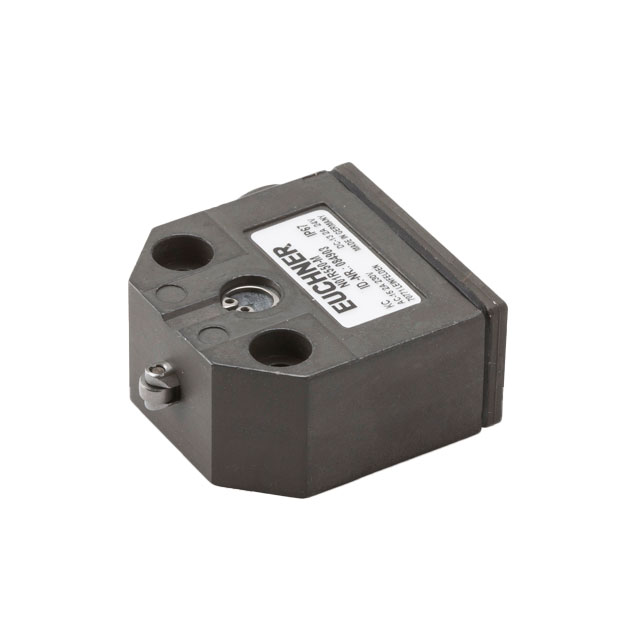

MS - Mechanical Switch

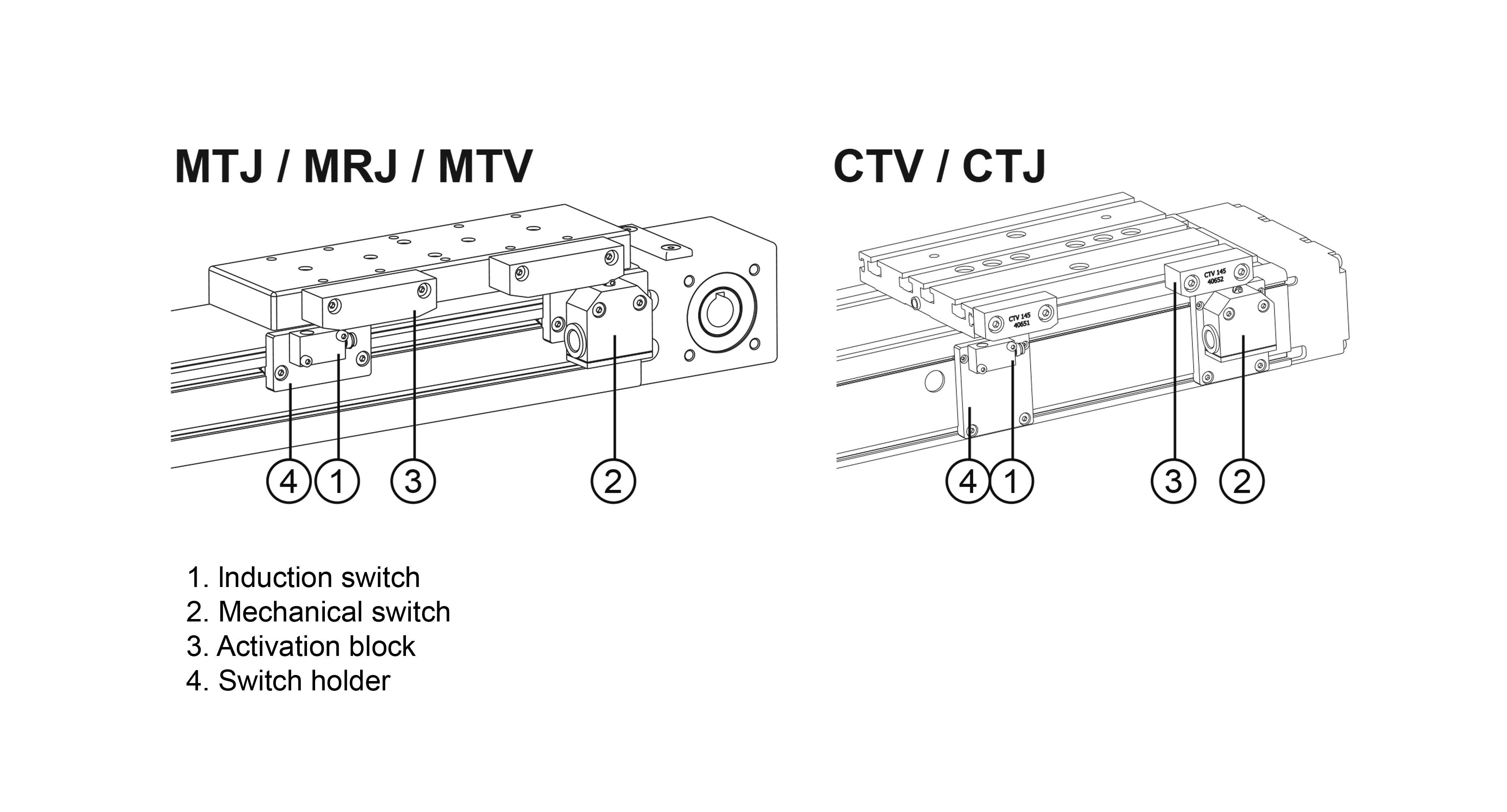

Mounting and using the induction and mechanical switch, can be done only if the CTV and CTJ series linear units are delivered with connection plates.
Contact Rollco for CAD-files.

Dimensions in mm.
Download PDF

Product Information

Protection class IEC 60529: IP67
Ambient temperature: -5°C ... +80°C
Operating point accuracy: ± 0.05 mm
Approach speed max.: 45 m/min
Approach speed min.: 0,01 m/min
Switching contact: 1 changeover
Switching principle: Snap-action
Rated voltage: 250 V AC
: 10 mA
Switching voltage: 24 V DC
Cable entry: M12 x 1,5

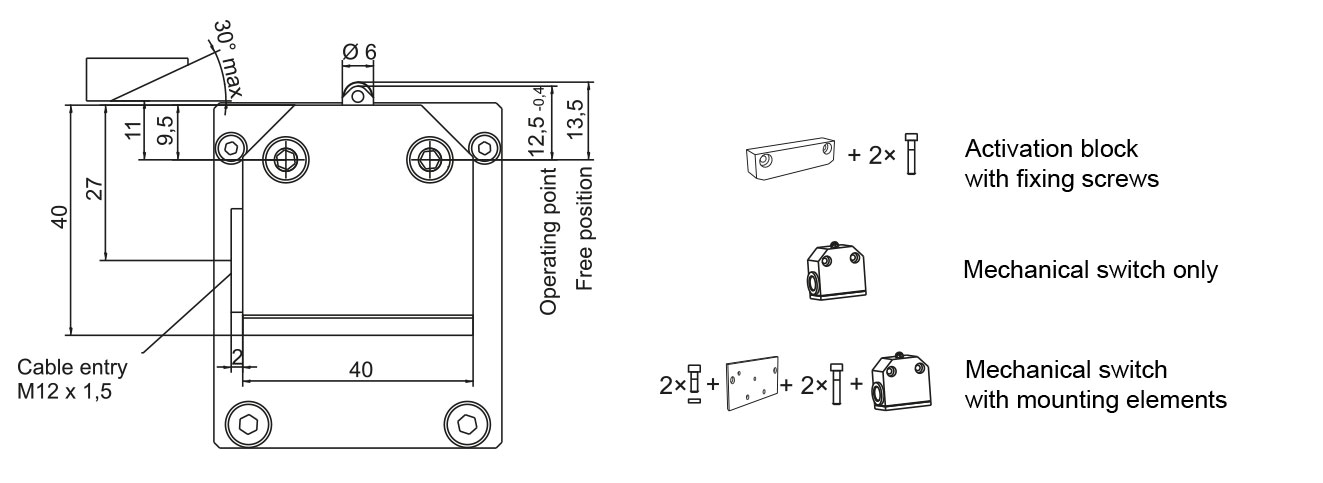

Technical Drawing
Designation Lead Time * Compatible with
2 MTJ/MRJ 40 Get quote
2 MTJZ 40 Get quote
2 MTJ/MRJ/MTV 65 MTJZ 65/80 Get quote
2 MTJ/MRJ/MTV 80 Get quote
2 MTJ/MRJ/MTV 110 Get quote
2 MTJZ 110 Get quote
2 MTJ ECO 40 Get quote
2 CTV/CTJ 90 Get quote
2 CTV/CTJ 110 Get quote
2 CTV/CTJ 145/200 Get quote
2 All models Get quote
2 MTJ/MRJ 40 MTJZ 40 Get quote
2 MTJ/MRJ/MTV 65 MTJZ 65/80 Get quote
2 MTJ/MRJ/MTV 80 Get quote
2 MTJ/MRJ/MTV 110 Get quote
2 MTJZ 110 Get quote
2 MTJ ECO 40 Get quote
2 CTV/CTJ 90 Get quote
2 CTV/CTJ 110 Get quote
2 CTV/CTJ 145 Get quote
2 CTV/CTJ 200 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
