Linear Unit MTJZ 110
The MTJZ series contains Z-axis linear units with toothed belt drive, integrated ball rail system and compact dimensions. This linear units provide high performance features such as, high speed, good accuracy and repeatability by vertical applications.
In the linear units MTJZ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
The in the profile slot driving timing belt protects all the parts in the profile from dust and other contaminations. The drive block provides the possibility to attach a motor or gearbox housing and additional accessories on it.
For CAD-files please contact Rollco.

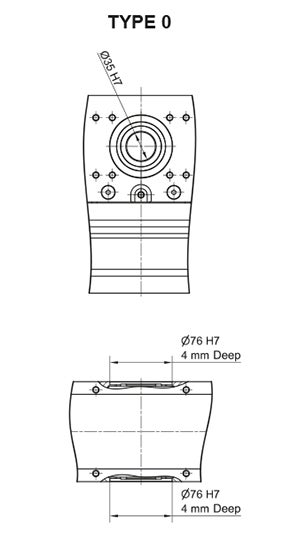

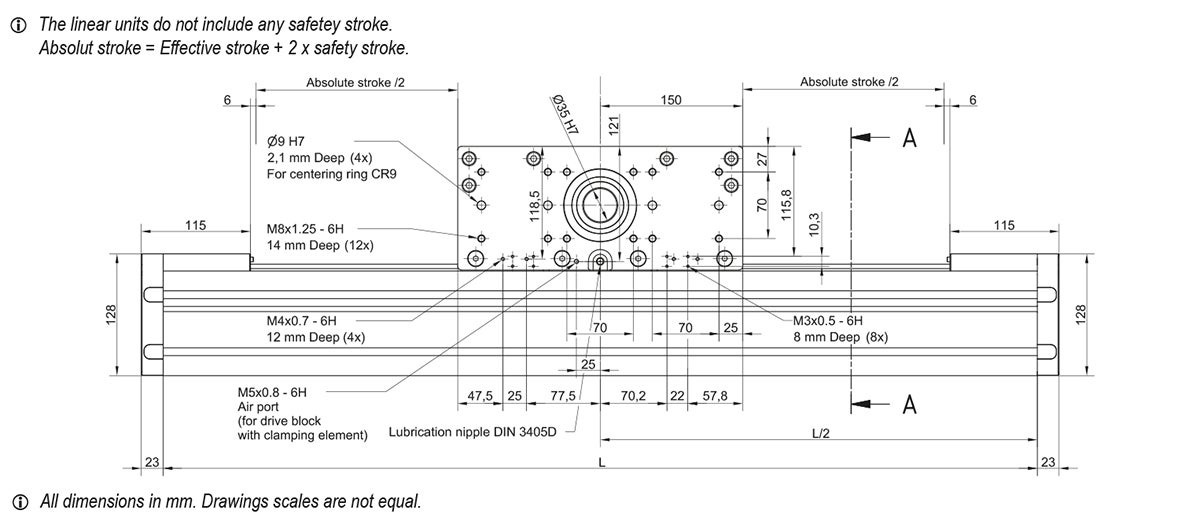

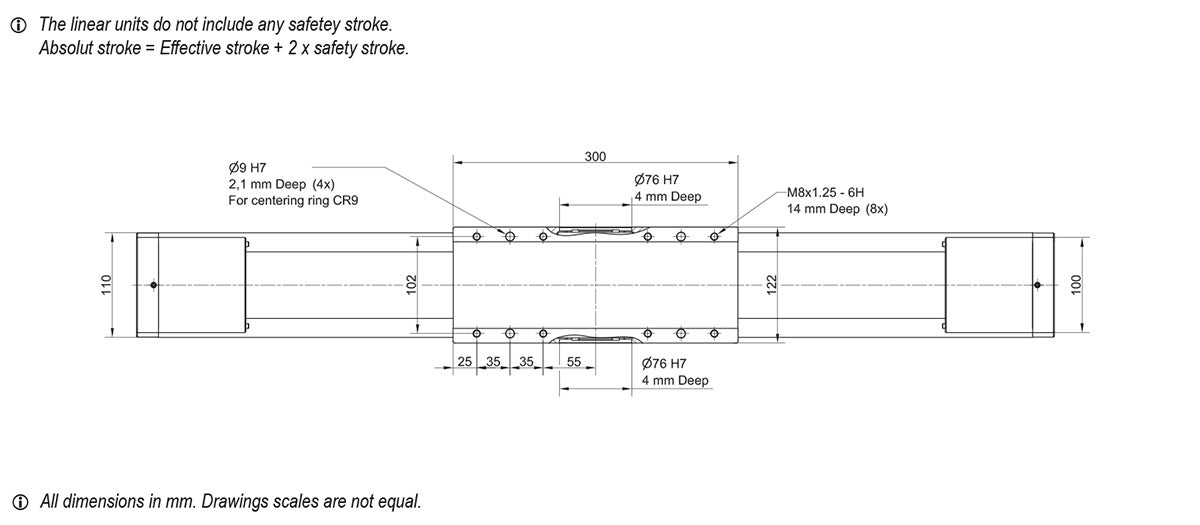

Dimensions in mm.
In the linear units MTJZ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
The in the profile slot driving timing belt protects all the parts in the profile from dust and other contaminations. The drive block provides the possibility to attach a motor or gearbox housing and additional accessories on it.
For CAD-files please contact Rollco.
Dimensions in mm.

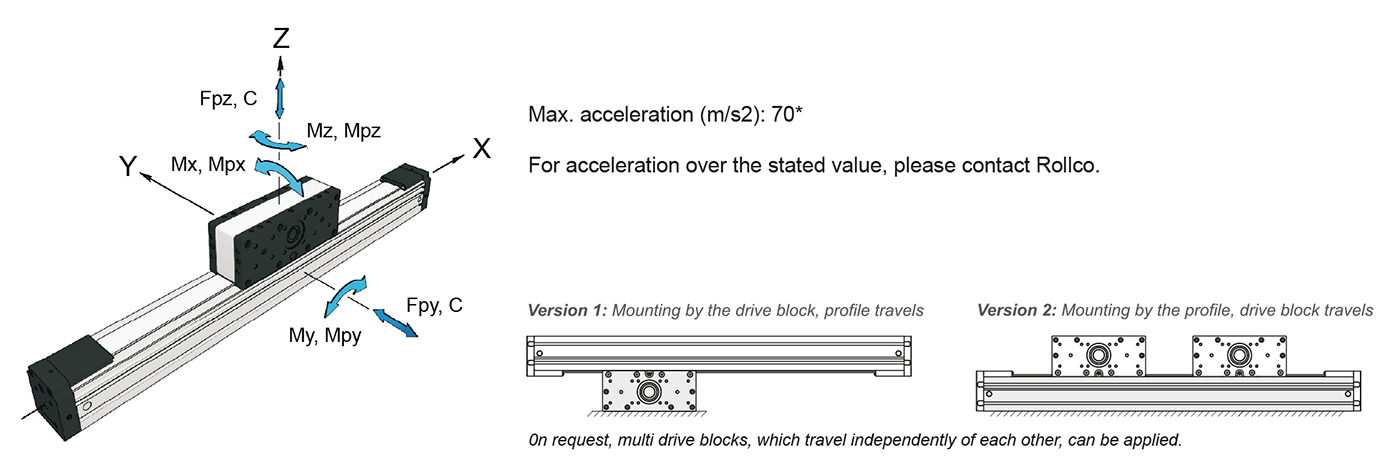

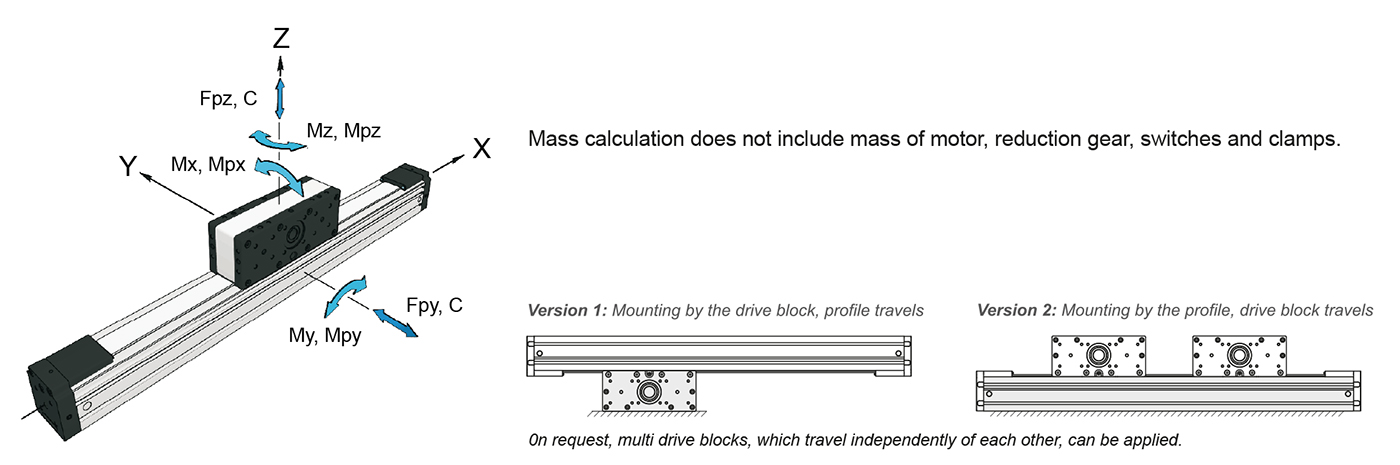

Product Information

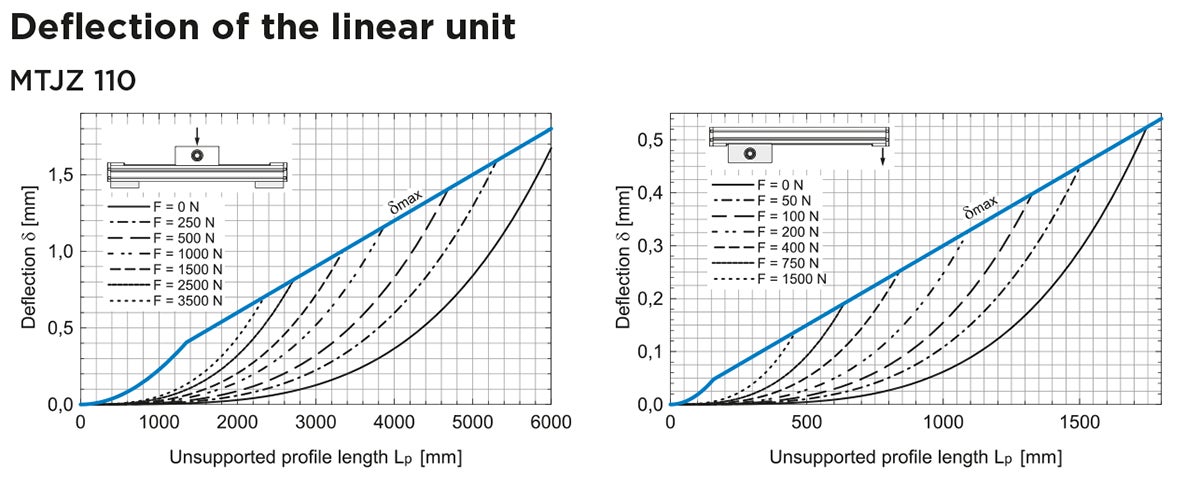

Modulus of elasticity: E = 70000 N / mm2
Operating temperature: 0°C ~ +60°C For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%

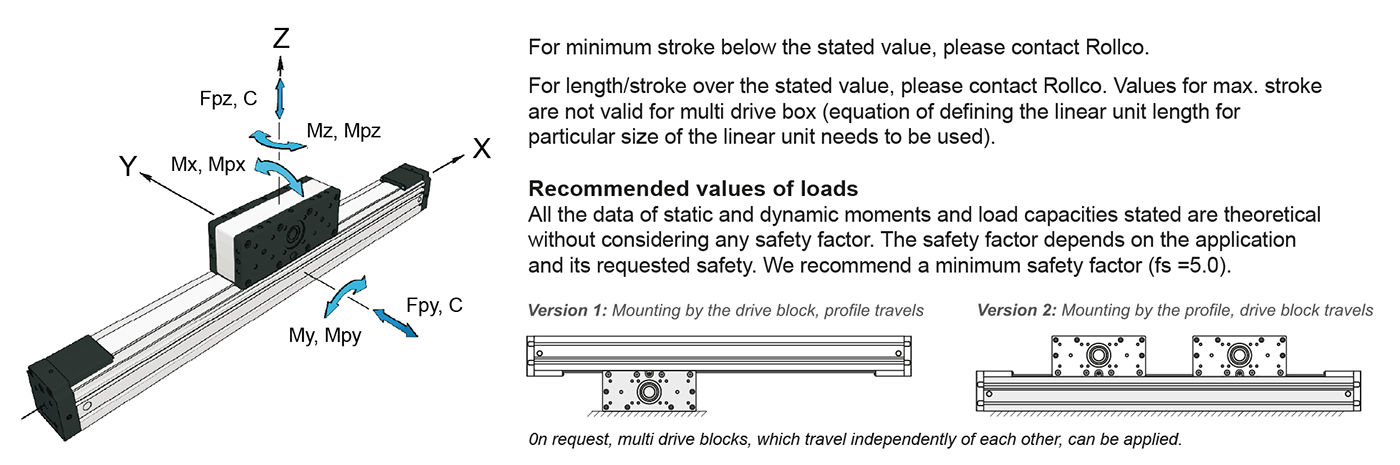

| Designation | Lead Time * | Drive block length Lv | Dynamic Load Capacity C | Static Load Capacity C0 | Dynamic Moment Mx | Dynamic Moment My | Dynamic Moment Mz | Mass of drive block | Max permissible loads Forces Fpy | Max permissible Loads Forces Fpz | Max. permissible loads Moments Mpx | Max. permissible loads Moments Mpy | Max. permissible loads Moments Mpz | Max. repeatability | Max length version 1 (Lmax) | Max length version 2 (Lmax) | Max. stroke version 1 | Max. stroke version 2 | Min. stroke | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 300 | 49600 N | 85000 N | 630 Nm | 3470 Nm | 3470 Nm | 11,3 kg | 10000 N | 14290 N | 260 Nm | 1000 Nm | 700 Nm | ± 0,08 | 1800 | 6000 | 1304 | 5504 | 65 | Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

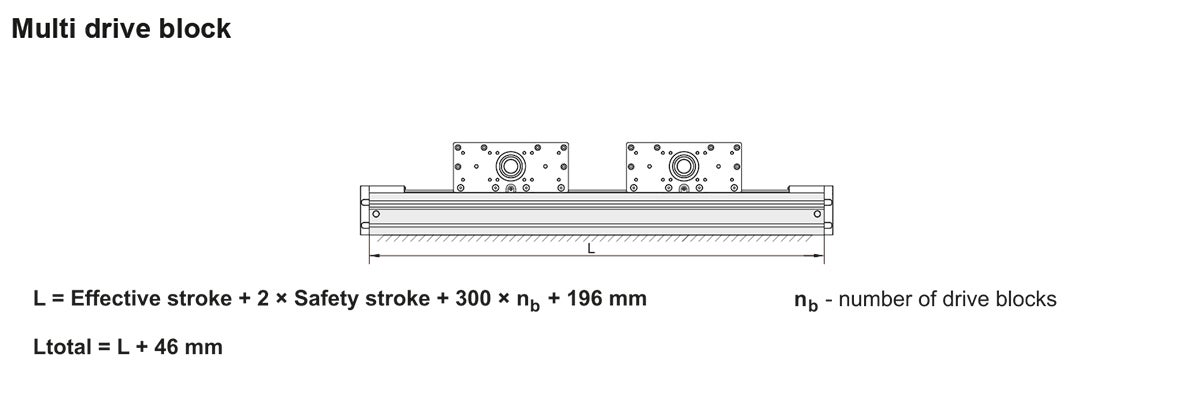

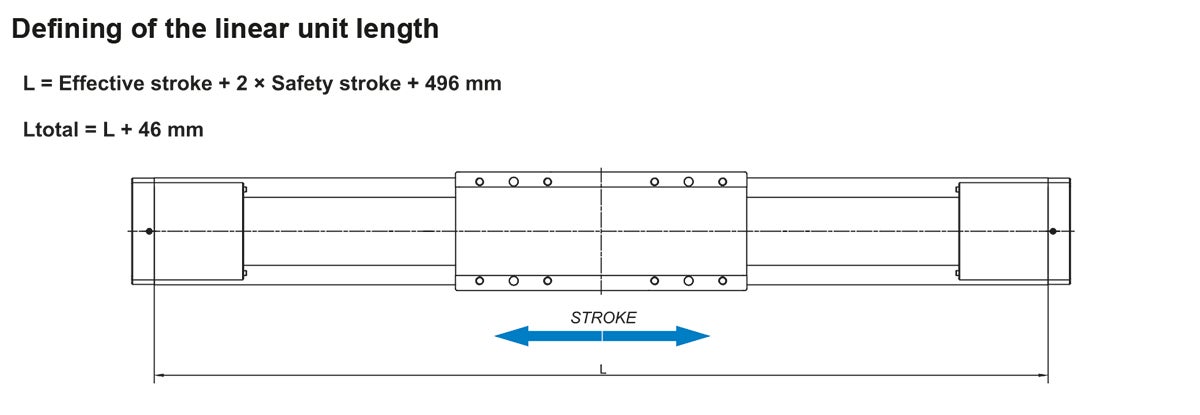

| Designation | Max travel speed | Max. drive torque | Pulley drive ratio | Pulley diameter | Min. stroke | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | Belt type | Belt width | Max. force transmitted by belt | Specific spring constant Cspec | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5 m/s | 110 Nm | 300 mm/rev | 95,49 | 65 | 513 | 620 | AT10 | 70 | 2300 N | 2450000 N | Get quote |
-
-

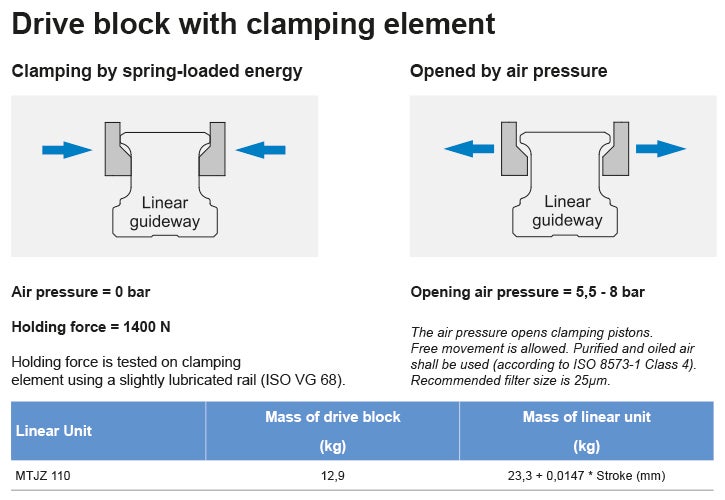

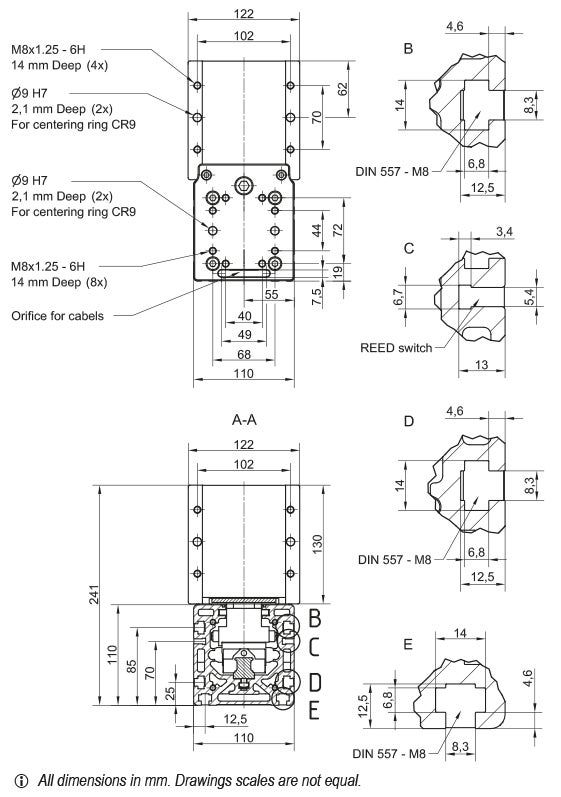

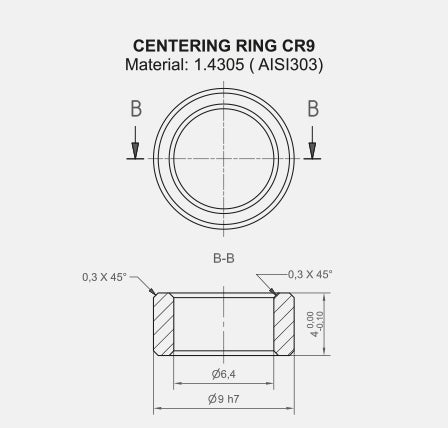

Fixing System
The linear units are mounted by using fixtures placed in the slot on the side of the profile -
-
-
-
-
-
-
-
-
-
-
-
-
-
