Linear Unit CTJ 200
The CTJ series includes linear units with a toothed belt drive and two parallel, integrated, zero-backlash rail guides. In the linear units CTJ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.
The in the profile slot driving timing belt, protects all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.
For CAD-files please contact Rollco.

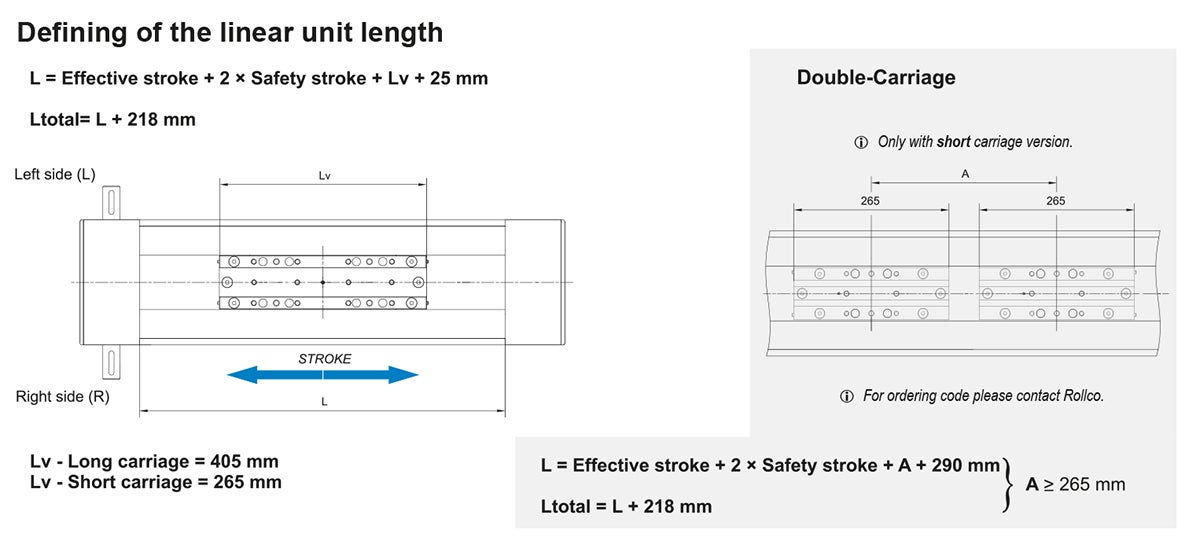

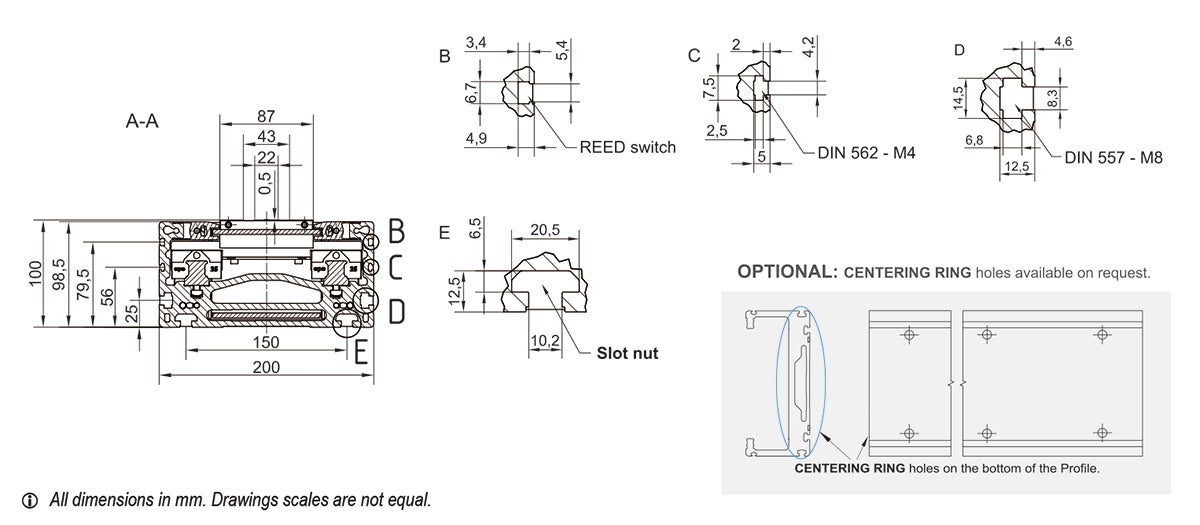

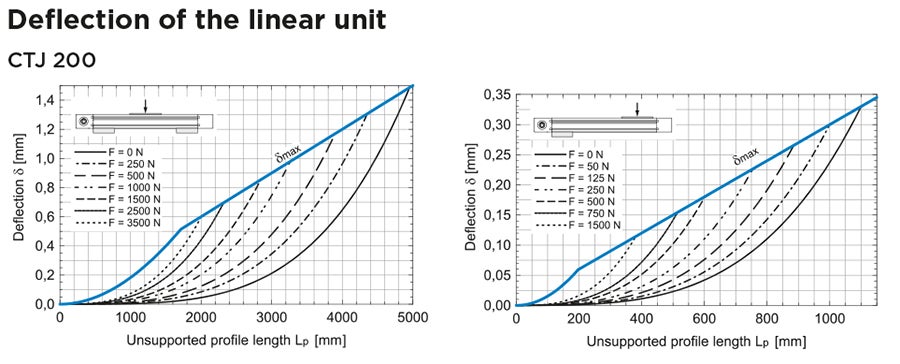

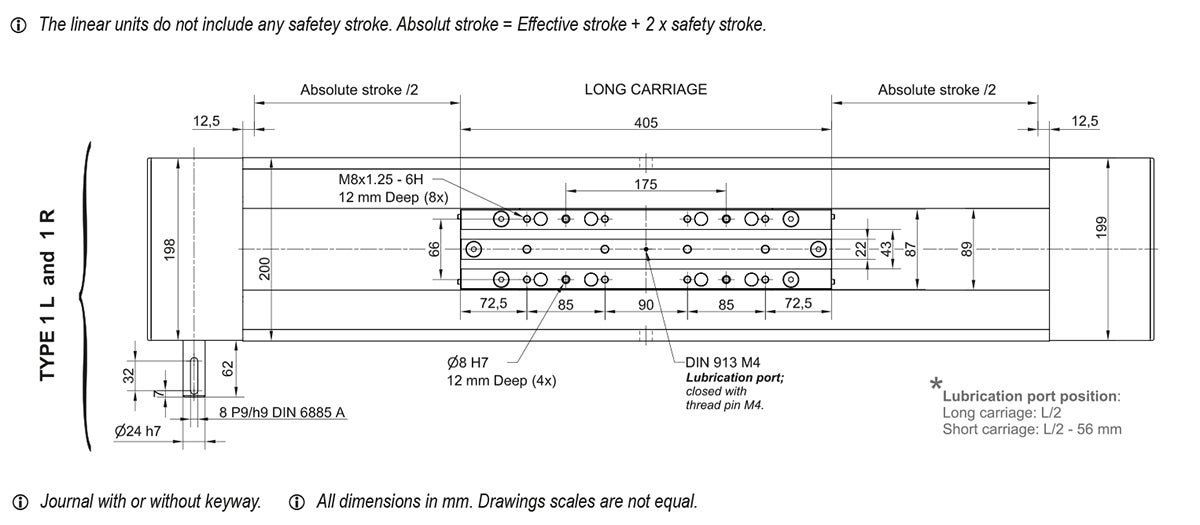

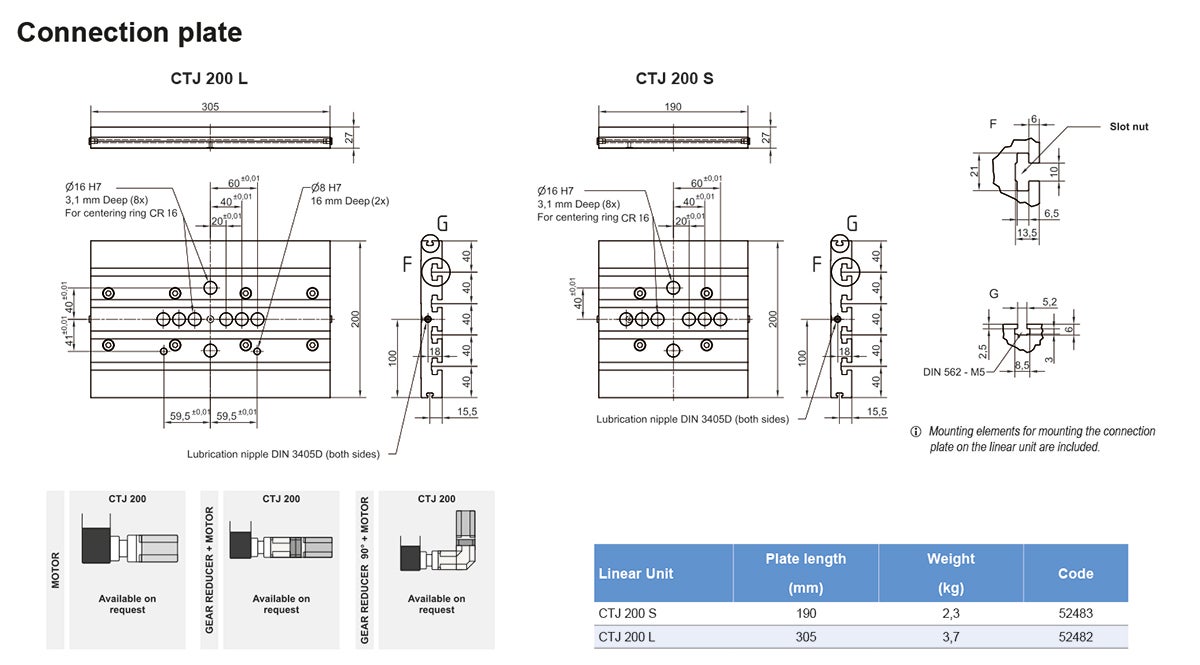

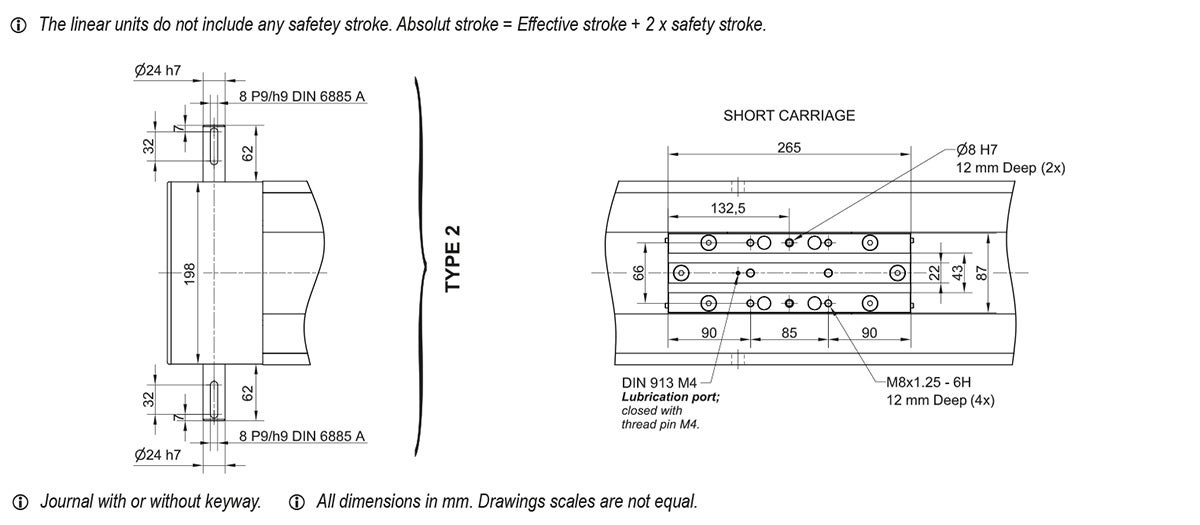

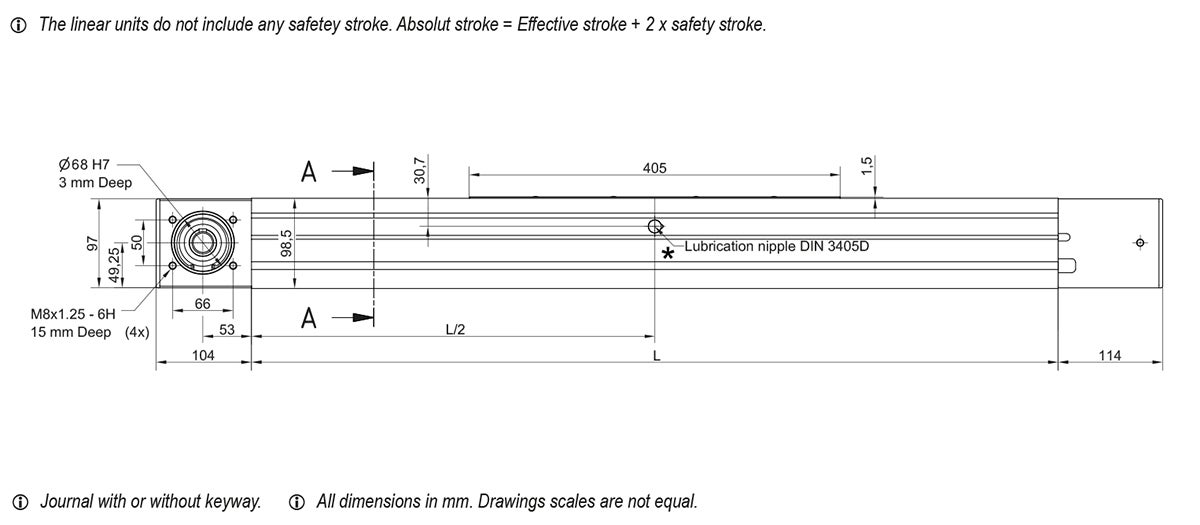

Dimensions in mm.
The in the profile slot driving timing belt, protects all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.
For CAD-files please contact Rollco.
Dimensions in mm.
Product Information
Modulus of elasticity: E = 70000 N / mm2
Operating temperature: 0°C ~ +60°C For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%

Designation | Lead Time * | Carriage Length Lv | Dynamic Moment Mx | Dynamic Moment My | Dynamic Moment Mz | Dynamic Load Capacity C | Static Load Capacity C0 | Max permissible loads Forces Fpy | Max permissible Loads Forces Fpz | Max. permissible loads Moments Mpx | Max. permissible loads Moments Mpy | Max. permissible loads Moments Mpz | Moved mass | Max. repeatability | Max length Lmax | Max. stroke | Min. stroke | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2 | 265 | 3235 Nm | 450 Nm | 900 Nm | 49600 N | 85000 N | 10000 N | 24520 N | 1600 Nm | 450 Nm | 308 Nm | 3,05 kg | ± 0,08 | 6000 | 5710 | 65 | Get quote | |
|
2 | 405 | 6470 Nm | 8680 Nm | 8680 Nm | 99200 N | 170000 N | 20000 N | 50900 N | 3250 Nm | 4550 Nm | 1750 Nm | 5,7 kg | ± 0,08 | 6000 | 5570 | 65 | Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Designation | Carriage version | Dyn. Load Capacity C | Stat. Load Capacity C0 | Dynamic Moment Mx | Dynamic Moment My | Dynamic Moment Mz | Max perm. Loads Forces Fpy | Max perm. Loads Moments Mpx | Max perm. Loads Moments Mpy | Max perm. Loads Moments Mpz | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2 | 99200 N | 170000 N | 6470 Nm | 49,6 * A (mm) Nm | 49,6 * A (mm) Nm | 20000 | 3200 | 24,5 * A (mm) | 10,0 * A (mm) | Get quote | |
|
S2 | 99200 N | 170000 N | 6470 Nm | 49,6 * A (mm) Nm | 49,6 * A (mm) Nm | 20000 | 3200 | 24,5 * A (mm) | 10,0 * A (mm) | Get quote |

Designation | Max travel speed | No load torque | Pulley drive ratio | Pulley diameter | Belt type | Belt width | Max. force transmitted by belt | Specific spring constant Cspec | Max. drive torque | Min. stroke | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6 m/s | 2,3 Nm | 250 mm/rev | 79,58 | AT 10 | 100 | 3250 N | 4350000 N | 102 Nm | 65 | 376,40 | 2 744,60 | Get quote | |
|
6 m/s | 2,8 Nm | 250 mm/rev | 79,58 | AT 10 | 100 | 3250 N | 4350000 N | 129 Nm | 65 | 376,40 | 2 744,60 | Get quote |

Designation | Carriage Length Lv | Mass of linear unit | Mass moment of inertia (10⁻⁵ kg * m²) | Planar moment of inertia ly cm⁴ | Planar moment of inertia lz cm⁴ | Moved mass | No load torque | ||
---|---|---|---|---|---|---|---|---|---|
|
265 | 20,2 + 0,0245 * Stroke (mm) kg | 778 + 0, 1868 * Stroke (mm) | 376,40 | 2 744,60 | 3,05 kg | 2,3 Nm | Get quote | |
|
405 | 26,2 + 0,0245 * Stroke (mm) kg | 1210 + 0,1868 * Stroke (mm) | 376,40 | 2 744,60 | 5,7 kg | 2,8 Nm | Get quote |
-
-
