Linear Unit MTJ 65

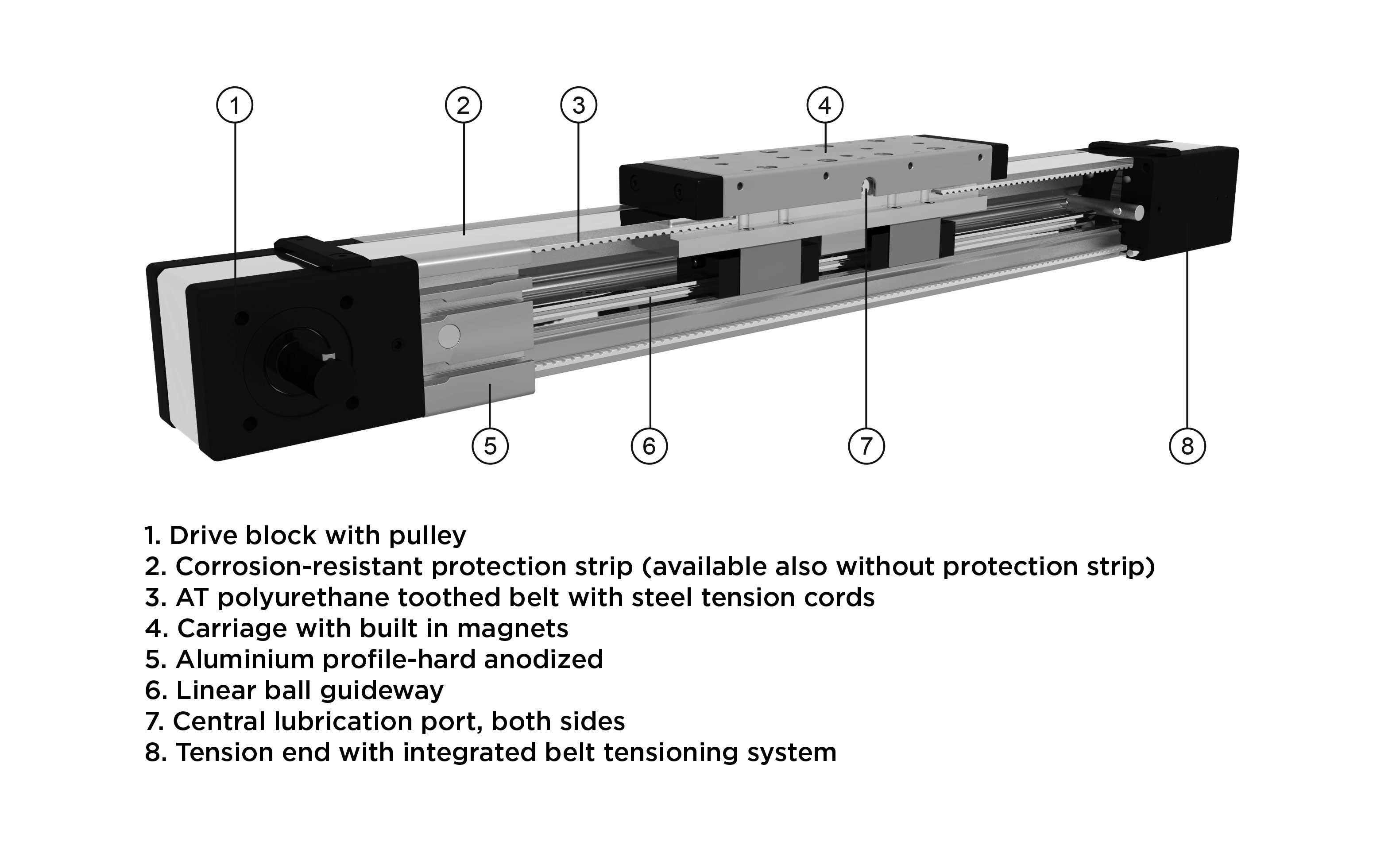

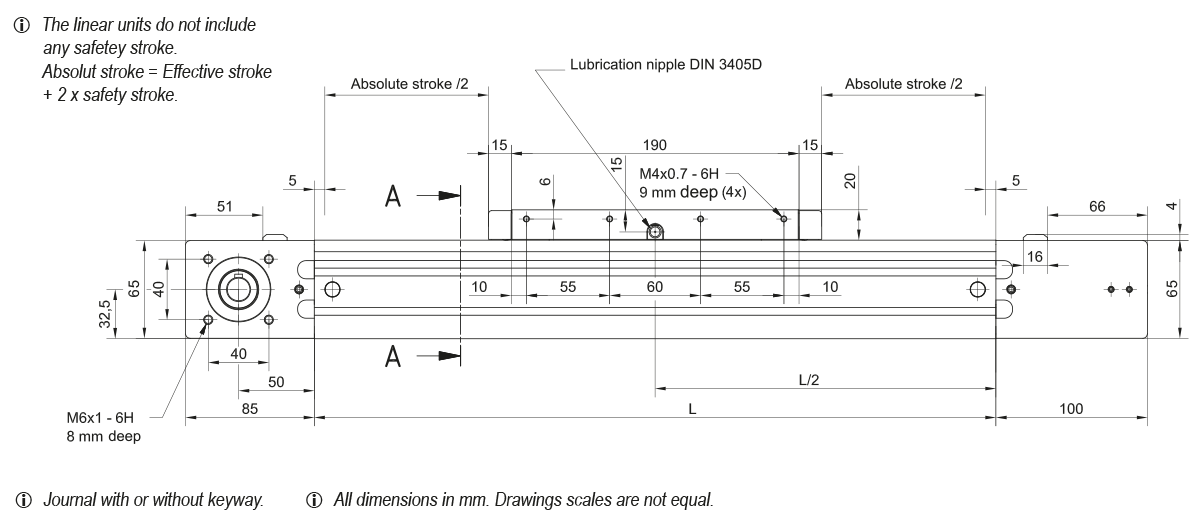

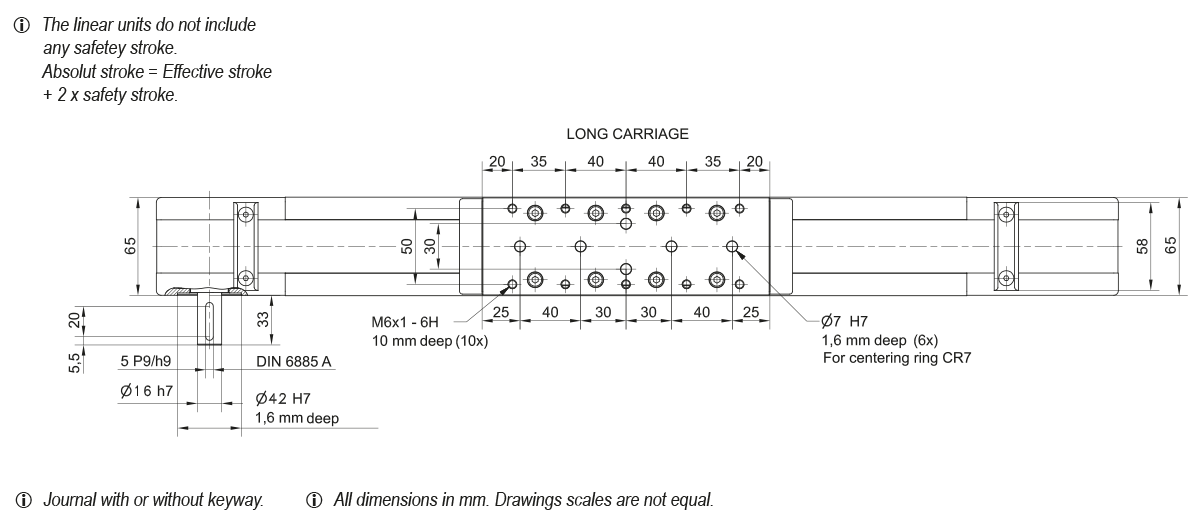

The MTJ linear units have toothed belt drive and compact dimensions to provide high performance features such as high speed and good accuracy.

The unit MTJ have a pre-tensioned steel reinforced AT polyurethane timing toothed belt.
In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.

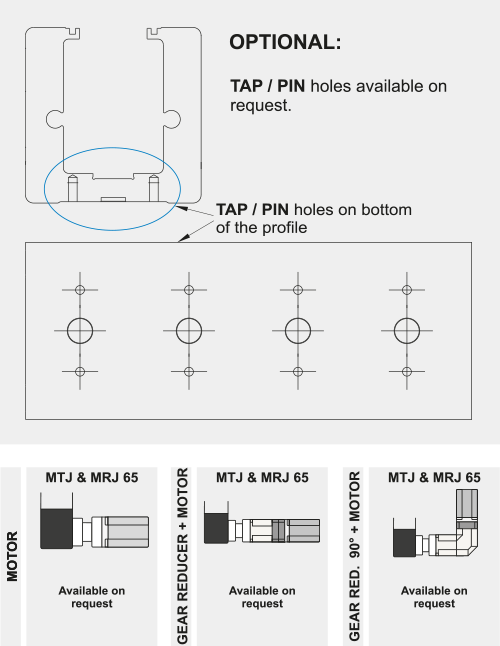

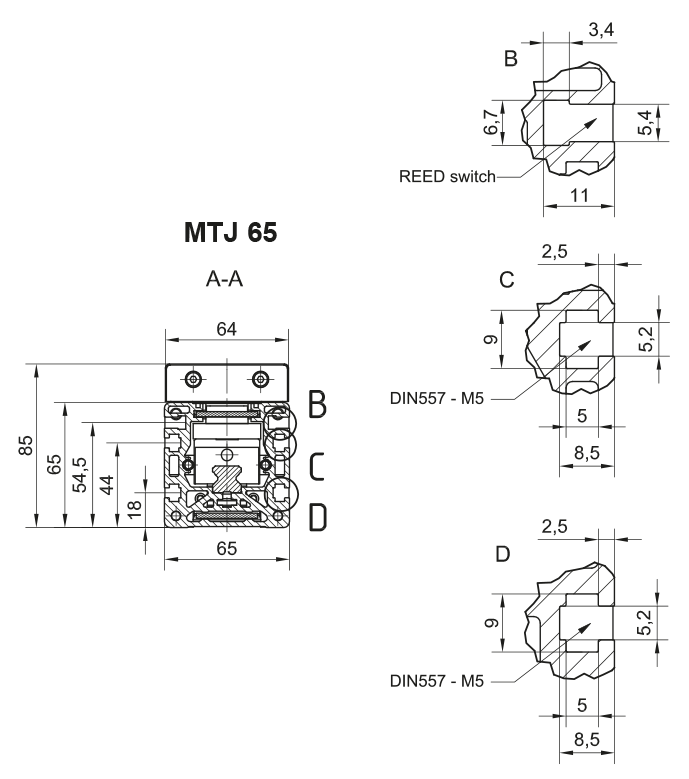

All parts in the profile are protected from dust and other contaminations. As corrosion-resistant protection strip is available as option.
Read more

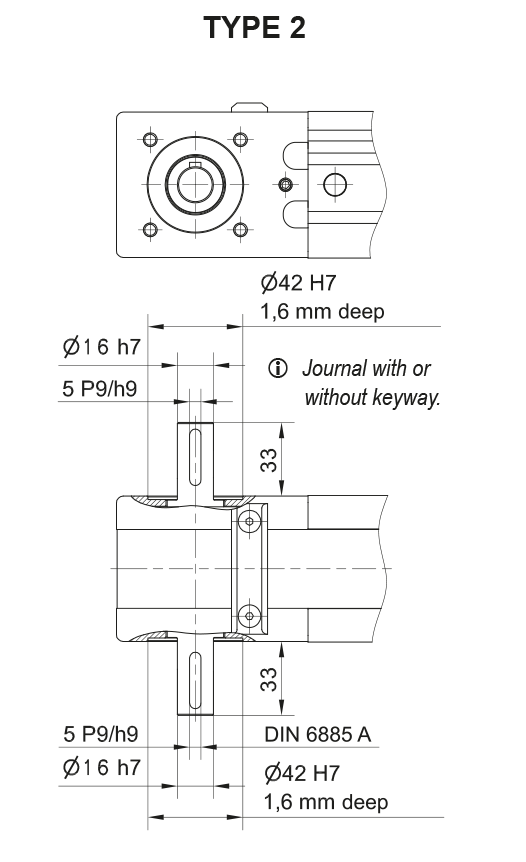

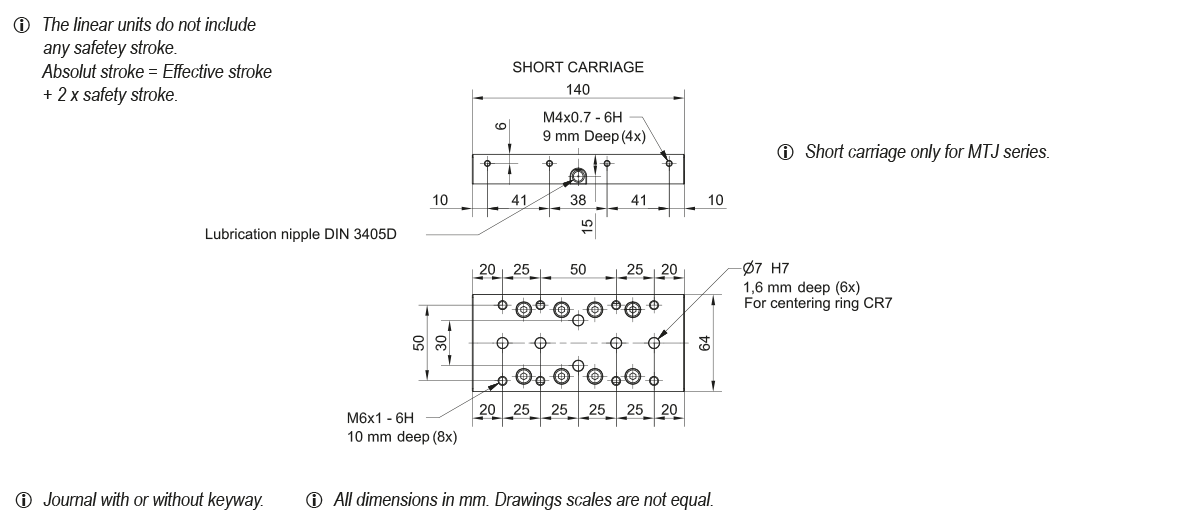

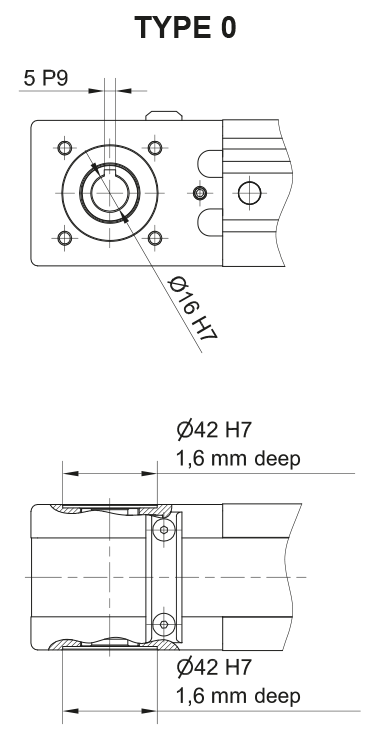

Product Information

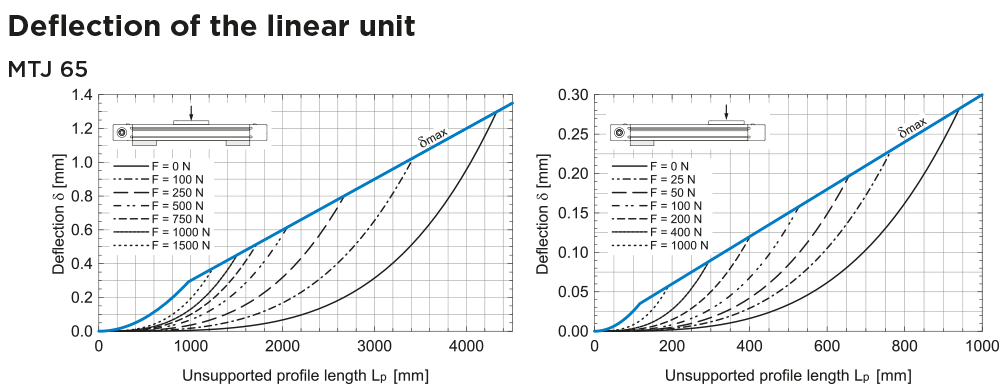

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 70
Max. Travel Speed (m/s): 6

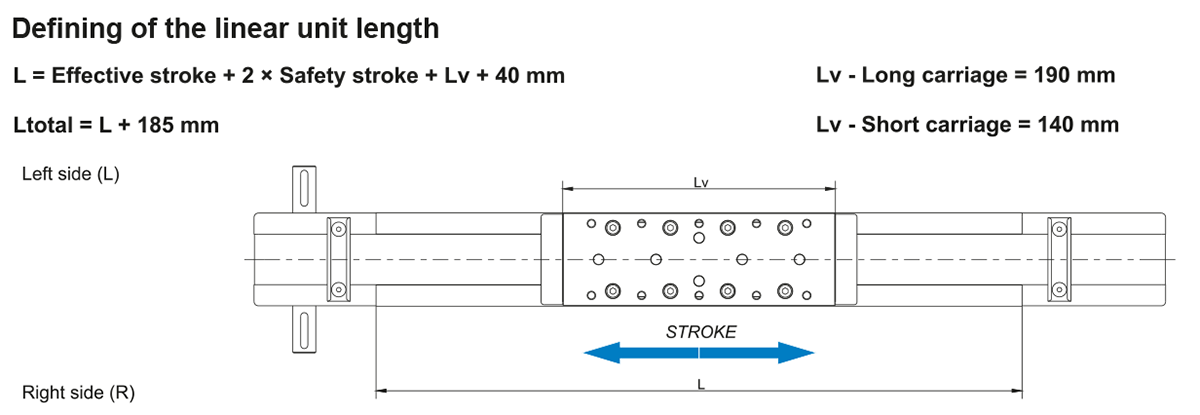

Designation Select all CAD Compare Get quote Lead Time * Carriage Length Lv (mm) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Moved Mass (kg) Max. Repeatability (mm) Max. Length Lmax (mm) Max. Stroke (mm) Min. Stroke (mm)
Get quote 2 140 79 59 59 9900 17500 3270 5100 34 34 34 1 ± 0.08 6000 5820 40
Get quote 2 190 158 1025 1025 19800 35000 6540 10190 60 530 340 1.45 ± 0.08 6000 5770 40

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

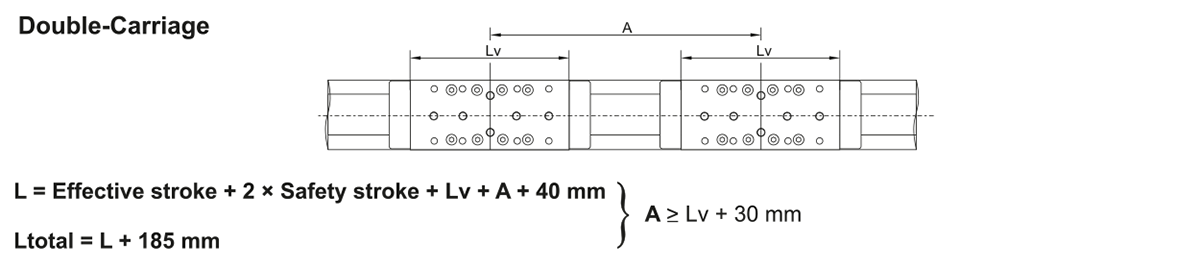

Designation Select all CAD Compare Get quote Carriage version Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm)
Get quote S2 19800 35000 158 9.9 × A (mm) 9.9 × A (mm) 6540 10190 68 5.1 × A (mm) 3.3 × A (mm)
Get quote L2 39600 70000 316 19.8 × A (mm) 19.8 × A (mm) 13080 20380 120 10.2 × A (mm) 6.5 × A (mm)

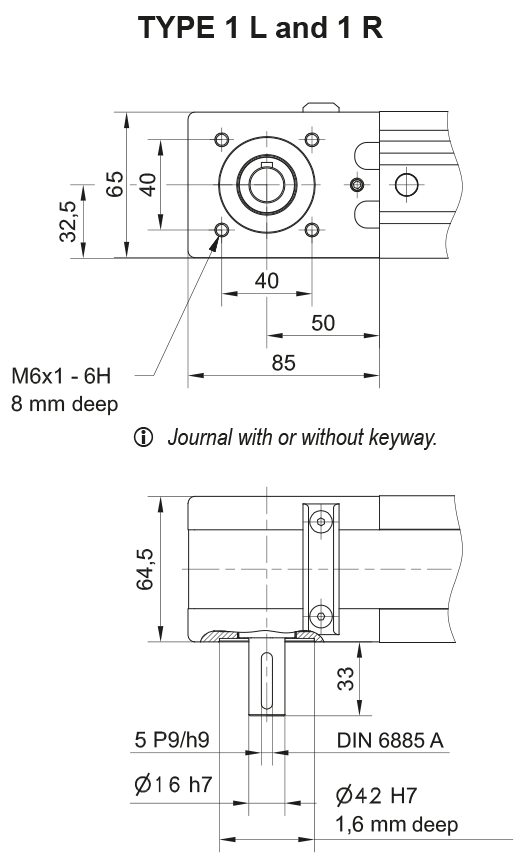

Designation Select all CAD Compare Get quote Max. Travel Speed (m/s) Max. Drive Torque Ma (Nm) No Load Torque with Strip (Nm) No Load Torque without Strip (Nm) Pulley Drive Ratio (mm/rev) Pulley Diameter Belt Type Belt Width Max. Force Transmitted by Belt (N) Specific Spring Constant Cspec (N) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴)
Get quote 6 13.1 1.1 0.8 165 52.52 AT5 32 500 600000 59.7 74.4
Get quote 6 13.1 1.2 0.9 165 52.52 AT5 32 500 600000 59.7 74.4
Designation Select all CAD Compare Get quote Mass of Linear Unit (kg) Mass Moment of Inertia (10⁻⁵ kg m²) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) Moved Mass (kg)
Get quote 4.0 + 0.0055 × (Abs. Stroke + (nc - 1) × A) + 1.0 × (nc - 1) 98.4 + 0.0154 × (Abs. Stroke + (nc - 1) × A) + 69.0 × (nc - 1) 59.7 74.4 1
Get quote 4.6 + 0.0055 × (Abs. Stroke + (nc - 1) × A) + 1.45 × (nc - 1) 130.1 + 0.0154 × (Abs. Stroke + (nc - 1) × A) + 100.0 × (nc - 1) 59.7 74.4 1.45
