Magnetic Field Sensors

STOCK ITEM
Contact Rollco for CAD-files.

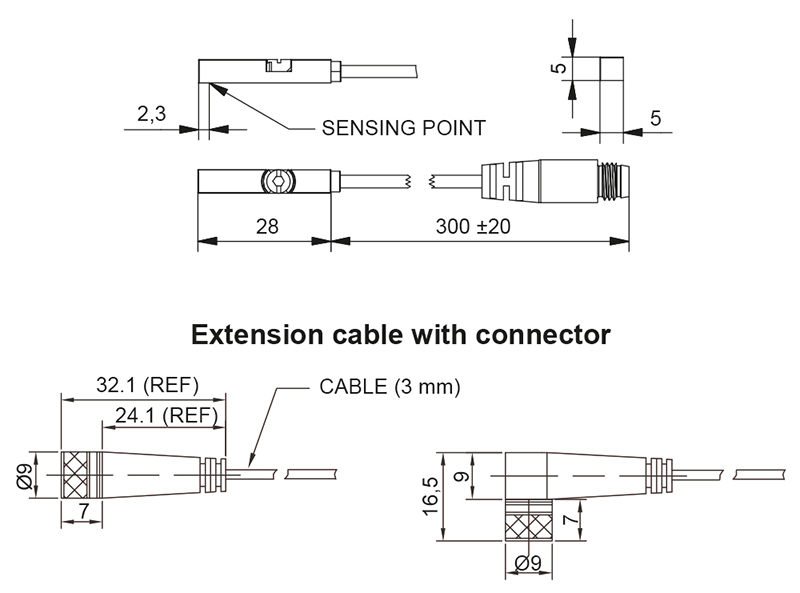

Dimensions in mm.
Read more

Product Information

Ambient Temperature (°C): -10 ~ +70
Sensor Type: GMR sensor
Switching function: NC/NO
Max. Switching Current (mA): 200x.
Switching Frequency (Hz): 1000
Voltage drop: 1.5 V / 200 mA max.
Protection Class: IP67
Electrical connection: M8, 3-pin
Extension cable: Energy chain compliant
Cable material length: PU - 0.3 m
Output: PNP
Operating Voltage (V DC): 10 ~ 28
Max. Power Rating (W): 5.5 max.
Current consumption: 10 mA / 24 V max.
Shock/vibration: 50 G / 9 G
LED indicator: Yellow

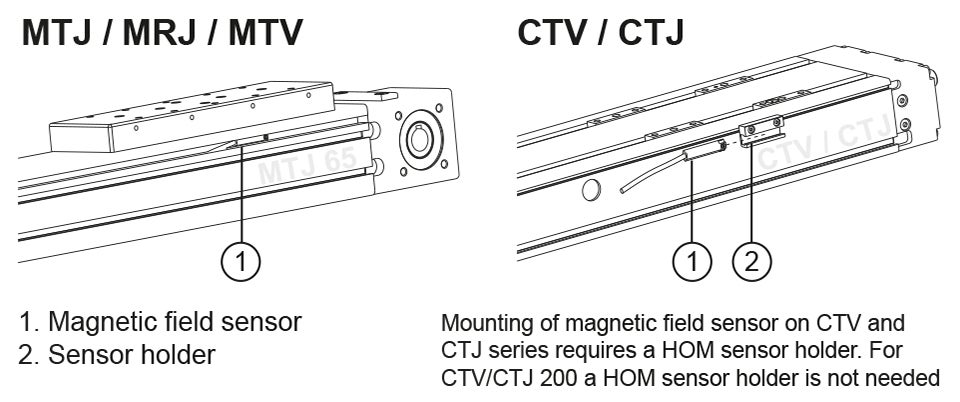

Designation Select all CAD Compare Get quote Lead Time * Compatible with
Get quote 2 CTV 90, 110, 145CTJ: 90, 110, 145
Get quote 2 MTJ / MRJ / MTV / MTJZ:40, 65, 80, 110 CTV / CTJ: 200
Get quote 1 CTV 90, 110, 145CTJ: 90, 110, 145
Get quote 2 MTJ / MRJ / MTV / MTJZ:40, 65, 80, 110 CTV / CTJ: 200
Get quote 1 CTV 90, 110, 145CTJ: 90, 110, 145
Get quote 2 -
Get quote 2 -
Get quote 2 -
Get quote 2 -

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
