Synchronisation Shaft OSL

For longer distances bearing supports are needed, please contact Rollco.

For CAD-files contact Rollco.

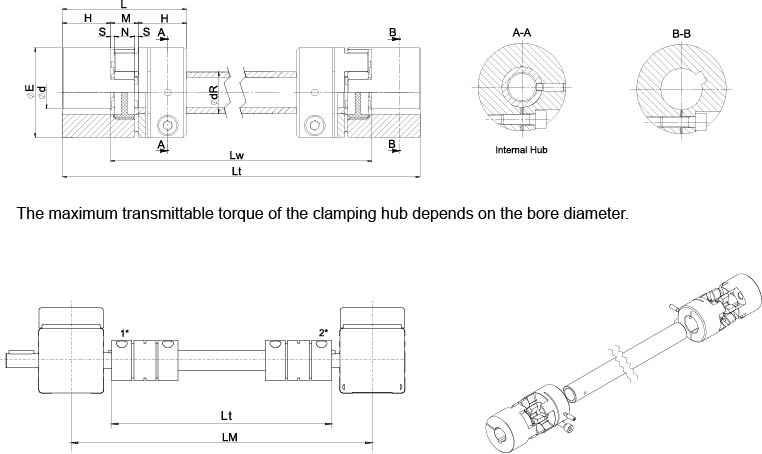

Dimensions in mm.

Explanations to the table below:
CT = Torsional rigidity per meter (Nm/rad)
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Designation Select all Lead Time * Internal Hub Ms (Nm) Internal Hub MT (Nm) CT (Nm/rad) Mass moment of inertia (10(⁻⁶) E H L M N S Weight (kg) ød min. ød max. Lw min. Lt dR x thickness Moment of inertia (10⁻⁶kg*m²) Compare
2 1.34 6 59 - 30 11 35 13 10 1.5 0.072 + 0.00021 * Lw 4 16 48 On request 14 x 2.0 10.4 + 0.0076 * Lw
Get quote
2 10 34 314 72.4 + 0.0324 * Lw 40 25 66 16 12 2 0.284 + 0.00044 * Lw 6 24 82 On request 20 x 3.0 72.4 + 0.0324 * Lw
Get quote
2 10 45 596 - 55 30 78 18 14 2 0.624 + 0.00048 * Lw 8 28 96 On request 25 x 2.5 300 + 0.0614 * Lw
Get quote
2 25 105 2868 - 65 35 90 20 15 2.5 0.960 + 0.00128 * Lw 10 38 110 On request 35 x 5.0 656 + 0.2954 * Lw
Get quote
2 25 123 4521 - 80 45 114 24 18 3 1.760 + 0.00149 * Lw 12 45 138 On request 40 x 5.0 1862 + 0.4656 * Lw
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
