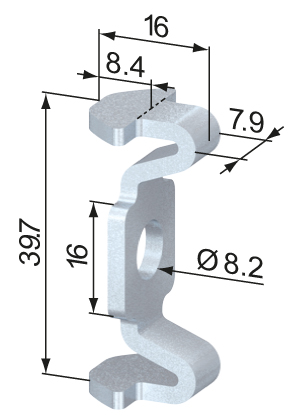

Standard Connector 40

Application:
An inexpensive and simple connection for profiles. The t-slot is not de­formed when the joint is made, gi­ving greater stability to the joint. At the same time, the fastener guarantees no twisting of the joined profiles.

Assembly:
Bore hole for Km 8: Ø 8.5 mm, 20 mm from the profile end, 40 mm deep.
Bore for cap screw head: Ø 15 mm, 20 mm from the profile end, 12.4 mm deep.
Tap center hole of mating profile with an M8 thread.
