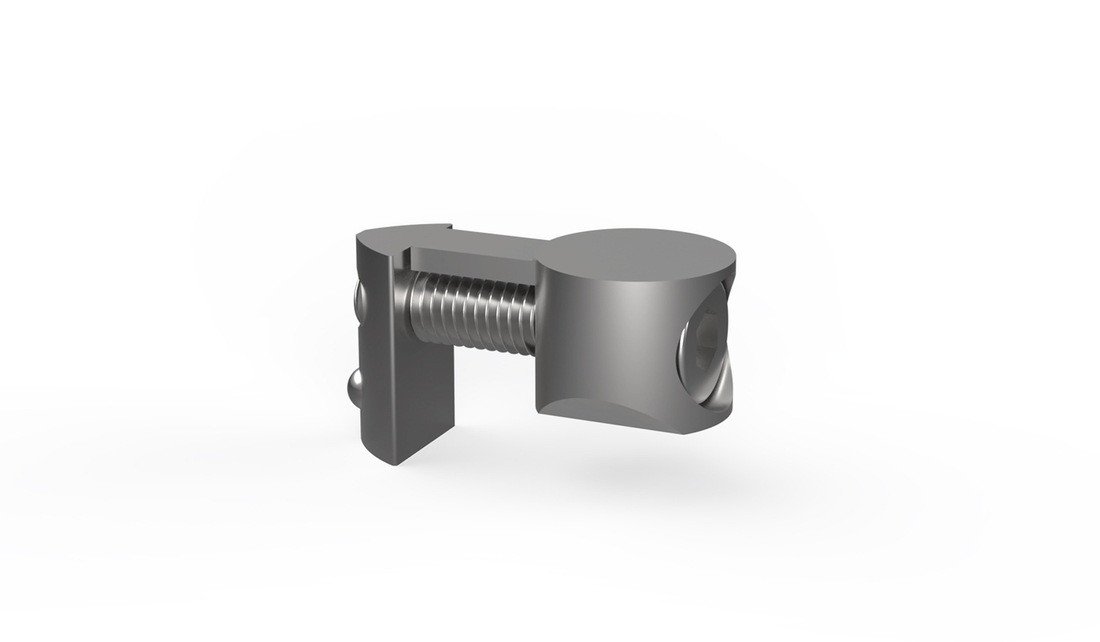

Universal Fastener

STOCK ITEM

Application:

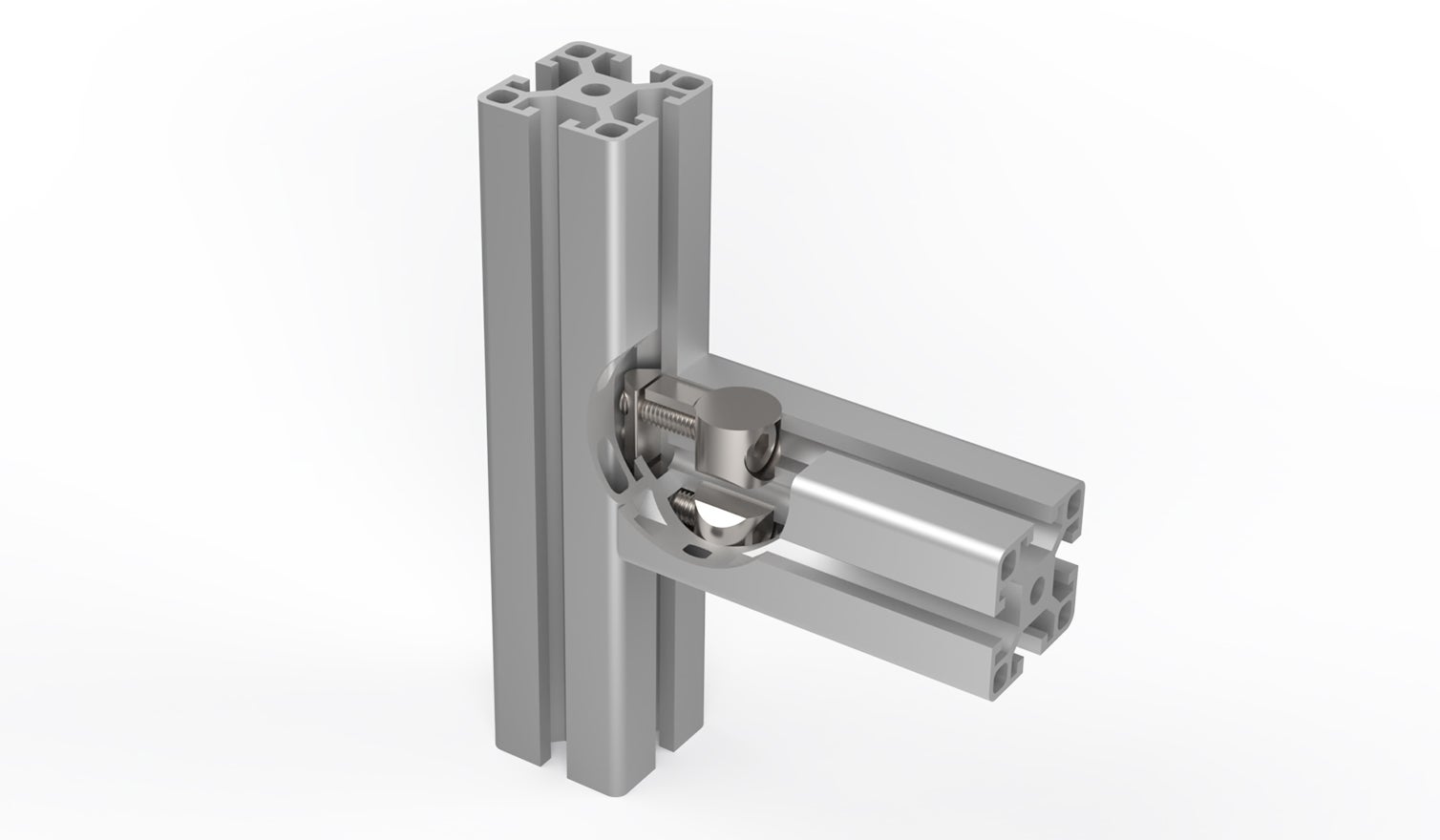

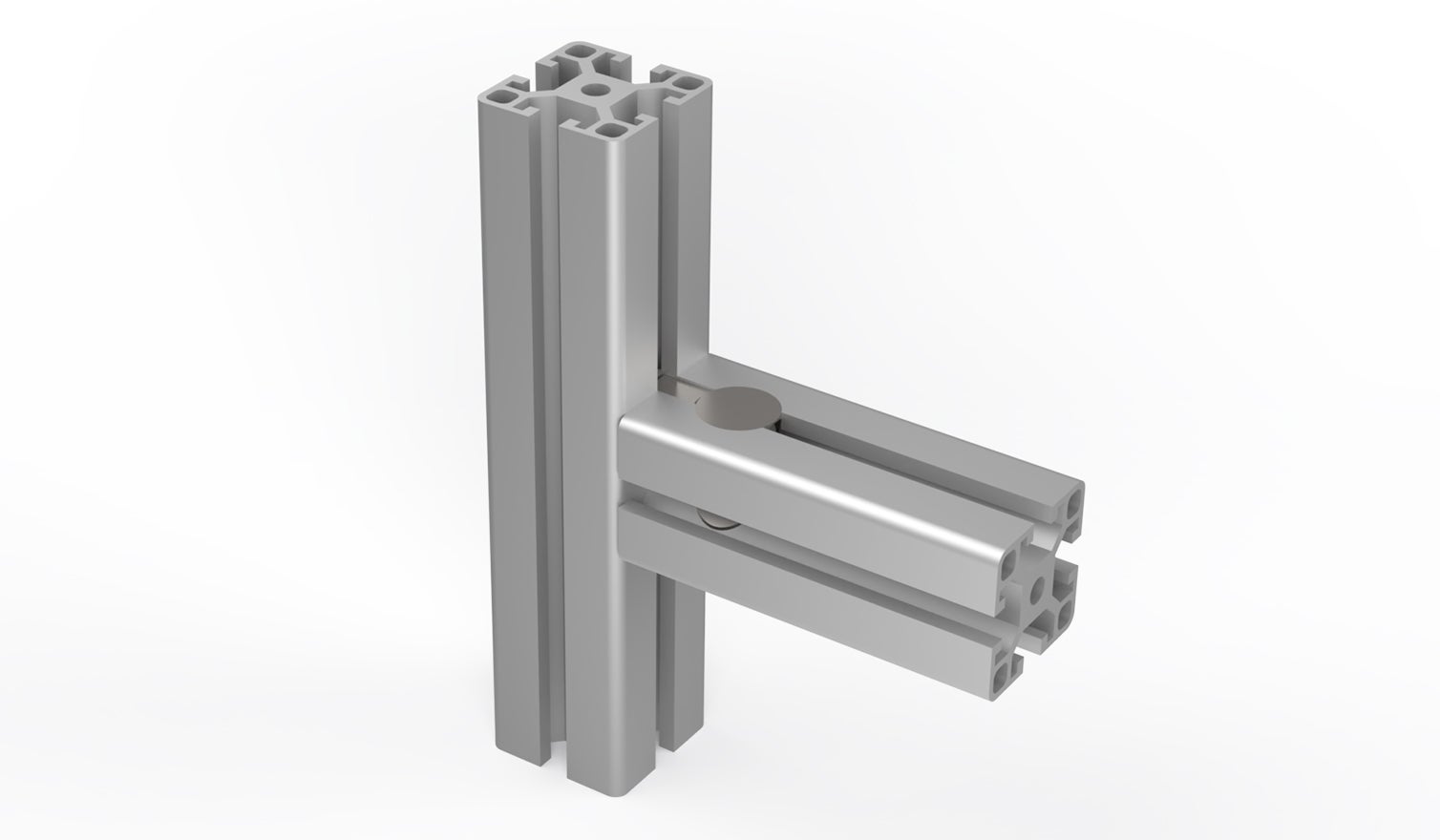

Links two aluminium profiles.

Supply:
Set of universal fastener with guide lug and 8 mm hole. M8 slot nut and cheese head screw included.

Ladda ner PDF (all data) Generating PDF

+ Lägg till i PDF-katalog

Product Information

Material: Die-cast zinc, galvanised

System: 40 - Slot 8

Designation	Select all	Lead Time *	Description	Fmax (N)	Mmax (Nm)	CAD	Compare
PV1015	/storage/047C3002086452DBBC8CAAFB55B5F0D4E5A94C70420CF1D6BA8DE05F111769D8/e6d8674294d346a49a2a385f0e369b34/STEP/media/7d6ba192fd544b49b5a63d20b16cce61/CAD_PV1015_UniversalFastener_Rollco.STEP	1	Universal Fastener Set 8 with lug	1750	80			Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
