Standard Connector 40
Inexpensive and simple connection of profiles

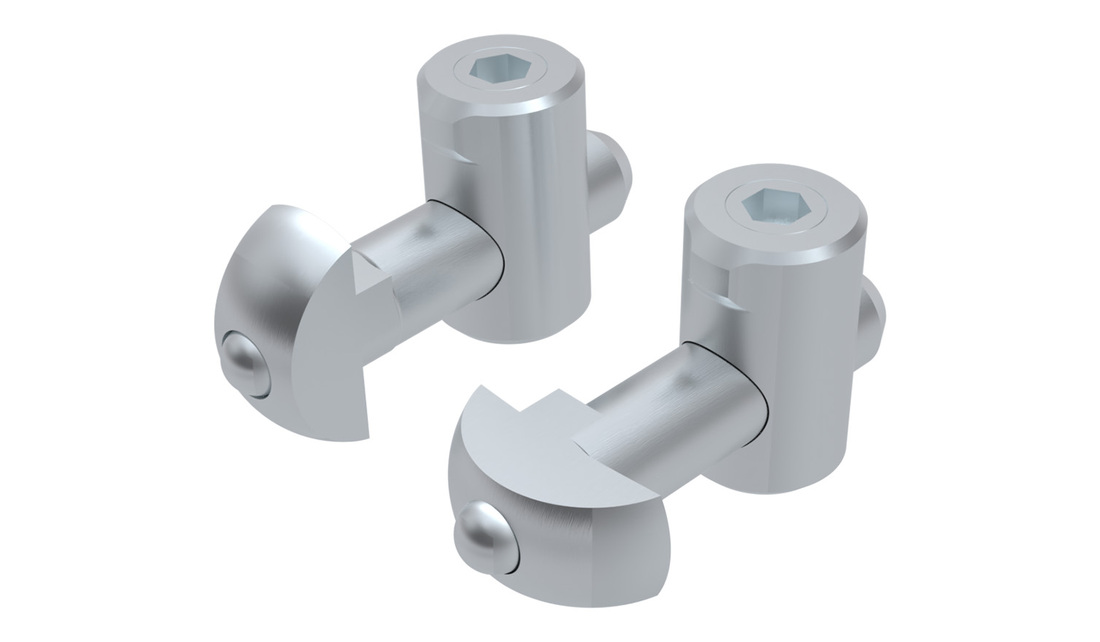

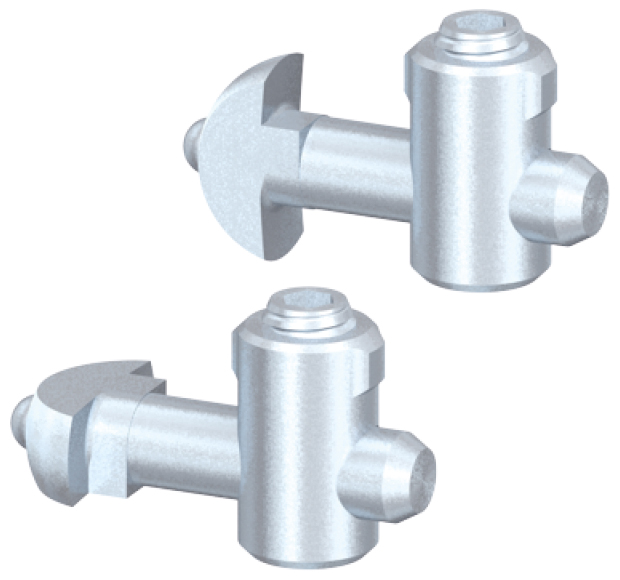

Central Fastener 40 EL / EQ
Application:
All-purpose universal fastener. The twist-in anchor, with an anti-twist feature, can be fixed in the profile groove at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
All-purpose universal fastener. The twist-in anchor, with an anti-twist feature, can be fixed in the profile groove at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Material | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
2 | Central Fastener 40 EL | Steel, zinc-plated | 26 |
|
|||
|
|
/storage/D2B3D8186B9113CBE9EB4A186A4710E7714F050A6D7416DEECAFB744556694D1/8a60d3dcc8a2408eadca726b9204b72d/stp/media/3ac18824c74047b0baa80496b2de04c1/CAD_SV1021V_CentralFastener40ELEQ_Rollco.stp | 2 | Central Fastener 40 EQ | Steel, zinc-plated | 26 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
