Standard Connector 40
Inexpensive and simple connection of profiles
Central Fastener 40 GC / GCV
Application:

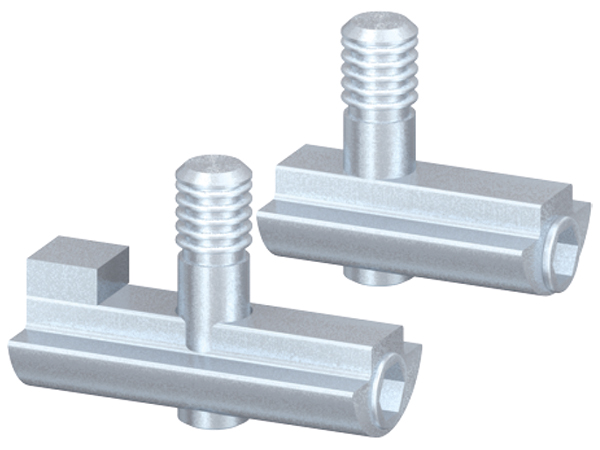

All-purpose universal fastener. Uses a slide-in t-nut with locking grub screw. The anchor with M8 thread is screwed into the opposing profile. The Central Fastener 40 GCV includes an anti-twist feature.
Assembly:
Slide t-nut portion into the t-slot from the end of the profile. Tap center hole of mating profile with an M 8 thread and screw in threaded anchor. Twist to orient indented portion of fastener so that it is facing the same direction as the barrel housing.
All-purpose universal fastener. Uses a slide-in t-nut with locking grub screw. The anchor with M8 thread is screwed into the opposing profile. The Central Fastener 40 GCV includes an anti-twist feature.
Assembly:
Slide t-nut portion into the t-slot from the end of the profile. Tap center hole of mating profile with an M 8 thread and screw in threaded anchor. Twist to orient indented portion of fastener so that it is facing the same direction as the barrel housing.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|
|
|
/storage/3EDC5BDBCC9B2CE8D58E0054DA88E6FB50339F4F2E37B976C57BFEF4EB6B13EC/79b9b91d7a534189a2471e08527fe57f/stp/media/735e5d97e6f44968875c8a579e20e2f9/CAD_SV1301V_CentralFastener40GCGCV_Rollco.stp | 2 | Central Fastener 40 GC | 30.7 |
|
||
|
|
/storage/F3CE22D4CFAD2EBF2F4E41F343AF7585C8B5C0BC085739414F927EE81BCD6333/885196fe5f3f4a728ef83bbf40bb10ba/stp/media/10c9dcb538ee42ce90d413307c8e4b36/CAD_SV1311V_CentralFastener40GCGCV_Rollco.stp | 2 | Central Fastener 40 GCV | 40.8 |
|
