Standard Connector 40
Inexpensive and simple connection of profiles

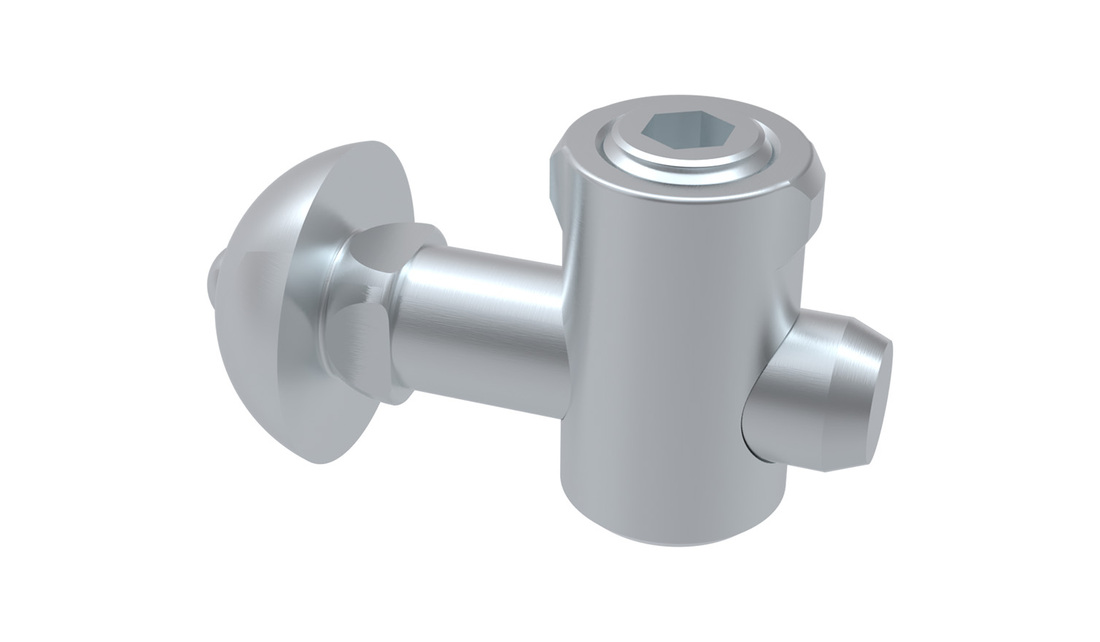

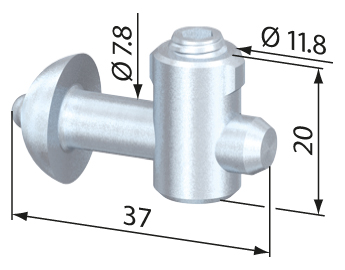

Central Fastener 40 S / SV
Application:

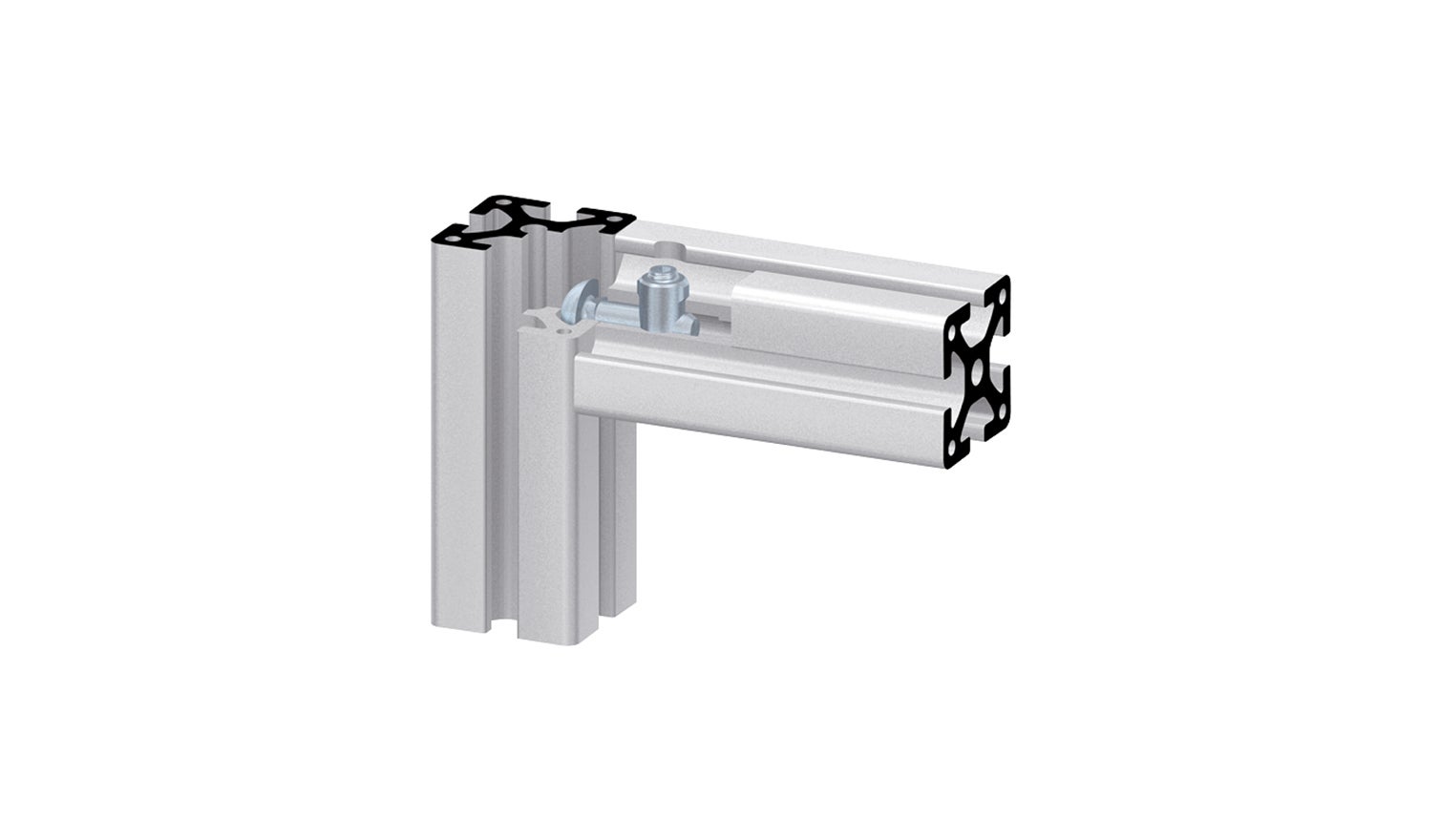

All-purpose universal fastener. The slide-in anchor is held in position in the profile groove by a spring-loaded ball in the opposing profile t-slot. The SV fasteners have an anti-twist feature. The SV ON fastener is to be used with closed profiles.
Assembly:

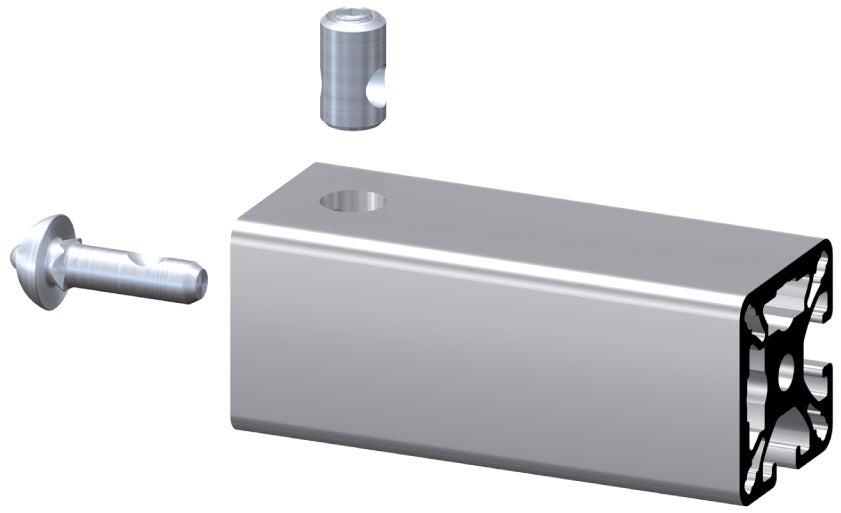

Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep. Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
All-purpose universal fastener. The slide-in anchor is held in position in the profile groove by a spring-loaded ball in the opposing profile t-slot. The SV fasteners have an anti-twist feature. The SV ON fastener is to be used with closed profiles.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep. Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Material | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/D965C6DA9EA3BA5DC17C81222400FE2512AB518C8E65CE7D3B08344676BF01B7/187e9f837b094500b9f15341c4401deb/stp/media/3b4d427ce7bc40599b98bd007abd93cd/CAD_SV1001V_CentralFastener40SSV_Rollco.stp | 2 | Central fastener 40 S | Steel, zinc-plated | 28 |
|
||
|
|
/storage/EEEDC06D81347711851DB7548D3A13FE56E51714D35AD1CFFBD36AD11817B732/afdbe3eddb8248ddbc7f6af2a871f9a4/stp/media/1e2253ef6df7408bb36e9641026eb18b/CAD_SV1211V_CentralFastener40SSV_Rollco.stp | 1 | Central fastener 40 SV | Steel, zinc-plated | 28 |
|
||
|
|
2 | Central fastener 40 SV ON | Steel, zinc-plated | 27 |
|
|||
|
|
/storage/280489767EC0069910D77EED53CFAD3BB8B2F8C19787588E517816891CAAF499/5552b95464cf44caae90e1c55cedbb24/stp/media/92e41daca23a47168af2511b1a82f2a1/CAD_SV1350V_CentralFastener40SSV_Rollco.stp | 2 | Central fastener 40 SV VA | Stainless steel | 30 |
|
