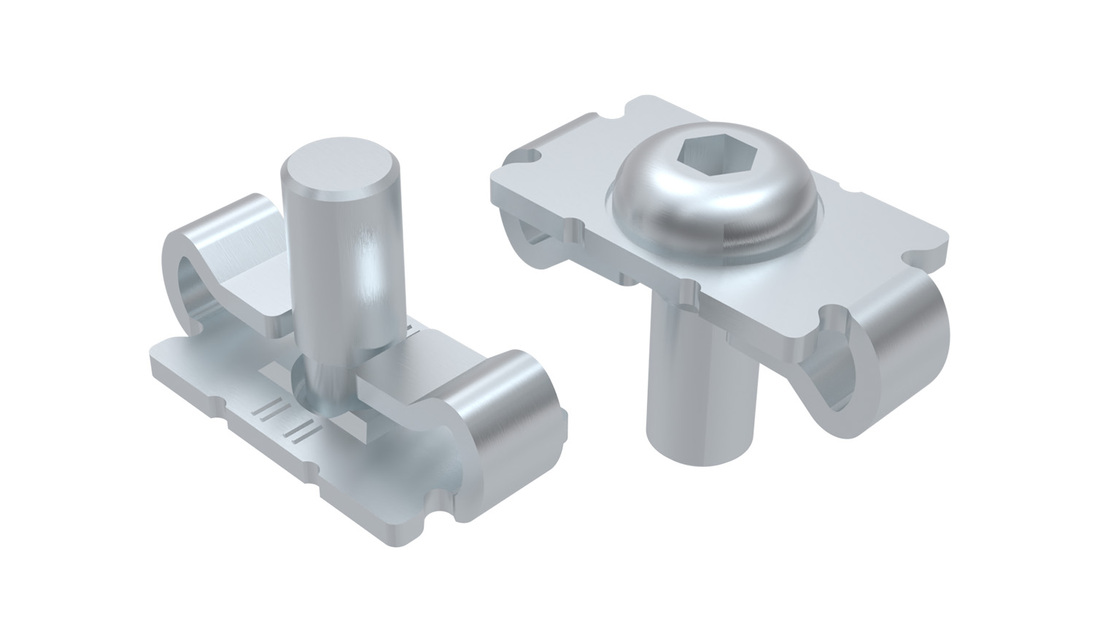

Standard Fastening Set

STOCK ITEM

Application:
An inexpensive and simple connection for two profiles. Teeth crack the anodized coating and create a reliable and conductive link. A fixed joint similar to SV1900V this connector comes instead as a set including screw and anti-rotation element.

Supply:

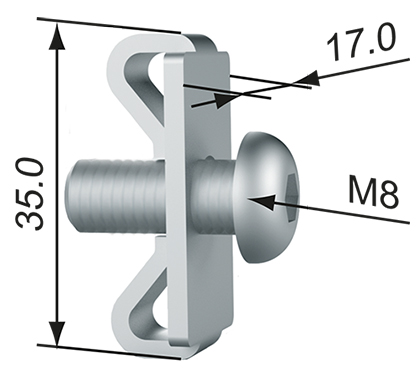

1 x ISO 7380 M8x20 fillister head screw

Ladda ner PDF (all data) Generating PDF

+ Lägg till i PDF-katalog

Product Information

Material: Steel, galvanised

System: 40 - Slot 8

Designation	Select all	Lead Time *	Torque (Nm)	Weight (g)	CAD	Compare
PV1022	/storage/B727F6A97462C0C3FF04E757766D8DB1D5CAB9FC8E49956A378B61774FED8D0C/122363a499254a4ea5947109e0911f11/STEP/media/f14be4b6a77947c59066f6b8a8a7ad70/CAD_PV1022_StandardFasteningSet_Rollco.STEP	1	25	14			Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
