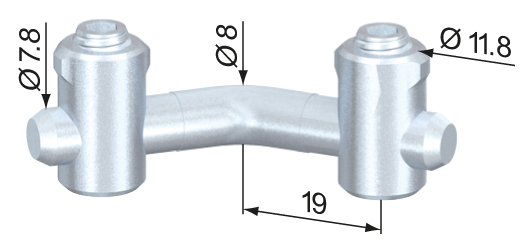

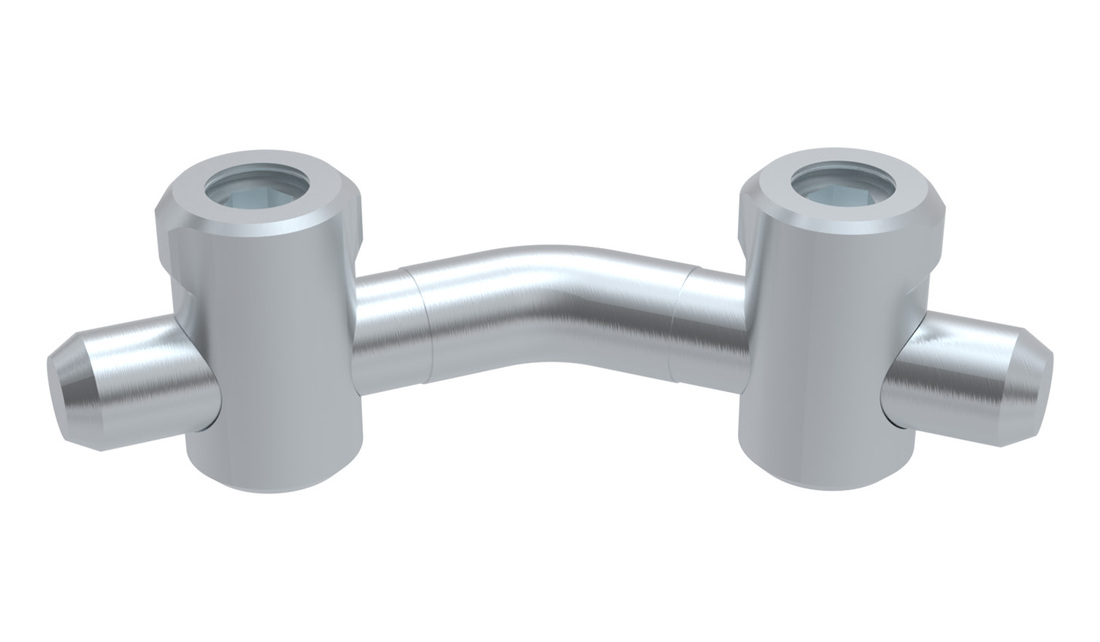

Central Fastener 40 135°
Application:
Fastener for 45° mitered joint, cut angle is 67,5°.
Assembly:
Bore hole for the barrel housing (2x): Ø 12 mm, 27 mm from profile end, 30 mm deep
Bore for center hole on end of profile for anchor (2x): Ø 8.5 mm, 40 mm deep; Ø 10 mm, 26 mm deep
Fastener for 45° mitered joint, cut angle is 67,5°.
Assembly:
Bore hole for the barrel housing (2x): Ø 12 mm, 27 mm from profile end, 30 mm deep
Bore for center hole on end of profile for anchor (2x): Ø 8.5 mm, 40 mm deep; Ø 10 mm, 26 mm deep
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Material | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/50095BFCB14305468D1972F82EEAB7BD0528C482E69DF4D370B07FD426823BDB/f0ff05ed02d94f09b9b03c13b81e4ce9/stp/media/a61c0a4ba37448e2ba7b370d94b5e3bb/CAD_SV1645V_CentralFastener40135_Rollco.stp | 2 | Central Fastener 40 135° | Steel, zinc-plated | 42 |
|
||
|
|
2 | Plastic Corner 40 135° | POM, black | 6 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
