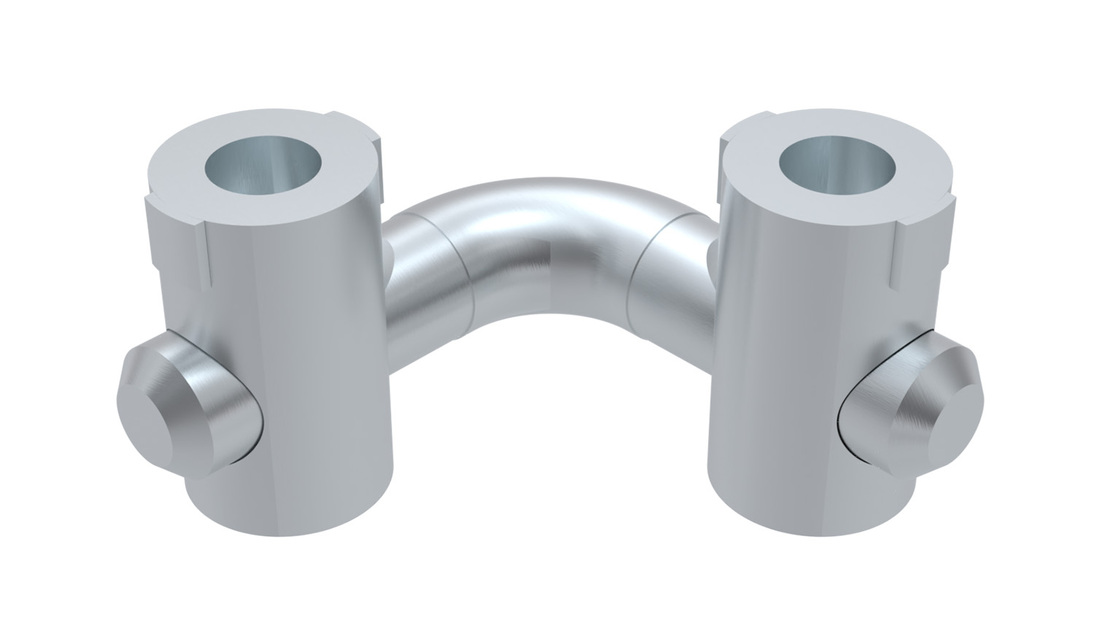

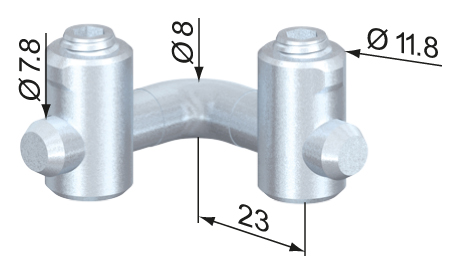

Central Fastener 40 90°
Application:
Fastener for 90° mitered joint, cut angle is 45°
Assembly:
Bore hole for the barrel housing (2x): Ø 12 mm, 38 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor (2x): Ø 8.5 mm, 50 mm deep; Ø 10 mm, 26 mm deep.
Fastener for 90° mitered joint, cut angle is 45°
Assembly:
Bore hole for the barrel housing (2x): Ø 12 mm, 38 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor (2x): Ø 8.5 mm, 50 mm deep; Ø 10 mm, 26 mm deep.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Material | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/F4A7FCA598C1569EDF88893CA520E59609392F082B7BEA91694D7EB99413C31D/e54522058aac41049af4f3df8913425d/stp/media/c30f33dc94614c2da77d154a423787db/CAD_SV1650V_CentralFastener4090_Rollco.stp | 2 | Central Fastener 40 90° | Steel, zinc-plated | 42 |
|
||
|
|
2 | Plastic Corner 40 90° | POM, black | 8 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
