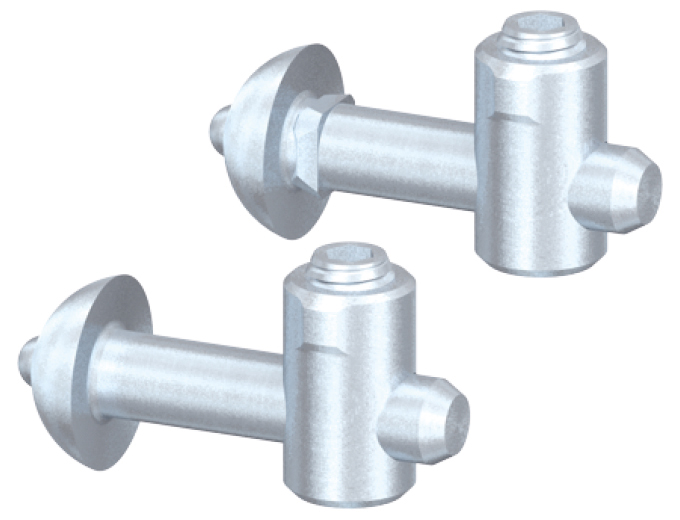

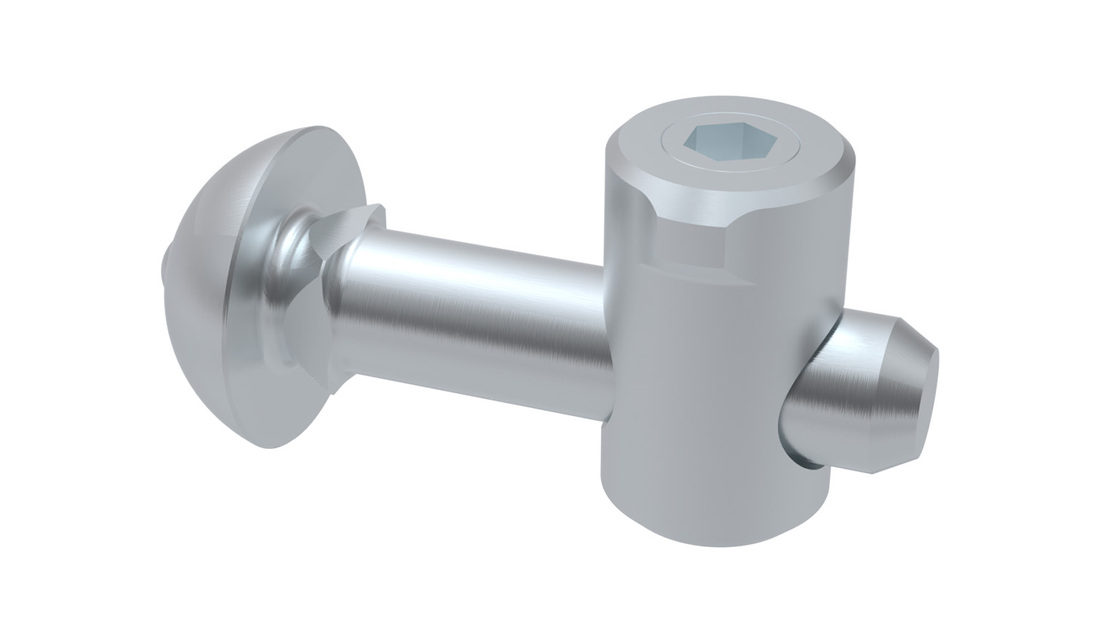

Central Fastener 40 SL / SVL
Application:

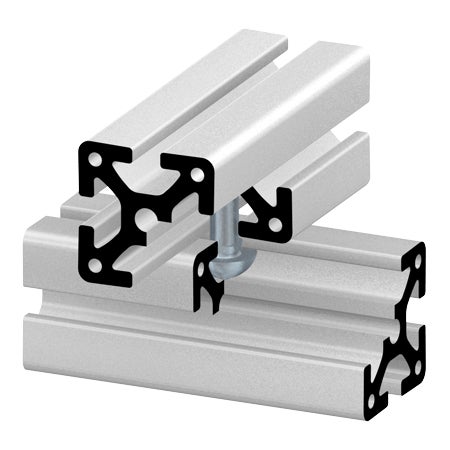

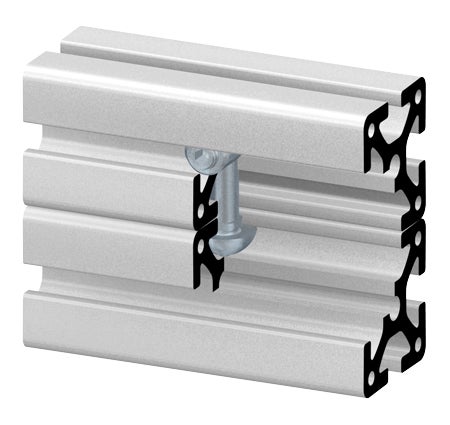

Special applications. The slide-in anchor, with an anti-twist feature, can be fixed in the profile t-slot at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot. The SVL fastener has an anti-twist feature. Both fasteners can be used for parallel and transverse connections.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 20 mm from profile end, 30 mm deep.
Bore for anchor in the profile: Ø 8.5 mm, 20 mm from profile end, 25 mm deep.
Special applications. The slide-in anchor, with an anti-twist feature, can be fixed in the profile t-slot at any point. The anchor is held in position by a spring-loaded ball in the opposing profile t-slot. The SVL fastener has an anti-twist feature. Both fasteners can be used for parallel and transverse connections.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 20 mm from profile end, 30 mm deep.
Bore for anchor in the profile: Ø 8.5 mm, 20 mm from profile end, 25 mm deep.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Steel, zinc-plated
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|
|
|
/storage/B49A0CF29C71386151388FB99C929501366430D033559AA369FEA107E7DD653E/03e12212234a4c8fa642e0d0cd982331/STEP/media/ff8b9e3cb16942b8b6508289ef81f1c5/CAD_SV1221V_CentralFastener40SLSVL_Rollco.STEP | 1 | Central Fastener 40 SVL | 31 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
