Standard Connector 40
Inexpensive and simple connection of profiles
Central Fastener 40 SVL
Application:
All-purpose universal fastener. The slide-in anchor is held in position in the profile groove by a spring-loaded ball in the opposing profile t-slot. The SV fasteners have an anti-twist feature.
Assembly:

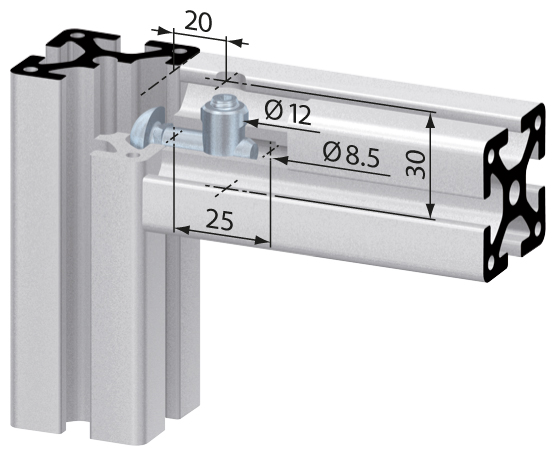

Bore hole for the barrel housing: Ø 12 mm, 20 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
All-purpose universal fastener. The slide-in anchor is held in position in the profile groove by a spring-loaded ball in the opposing profile t-slot. The SV fasteners have an anti-twist feature.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 20 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Steel, zinc-plated
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Weight (g) | Compare | |
|---|---|---|---|---|---|---|
|
|
1 | Central fastener SVL90 | 31 |
|
