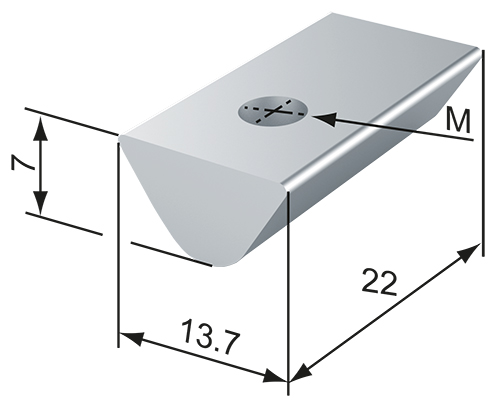

T-Nuts, ball-type, push-in, flat
Application:
T-nut for swiveling into the t-slot. Fits into the t-slot at any point. Held in position by a spring-loaded ball.
T-nut for swiveling into the t-slot. Fits into the t-slot at any point. Held in position by a spring-loaded ball.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Steel, zinc-plated
System: 40 - Slot 8
| Designation | Select all | Lead Time * | System | Thread | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/768E8ECEFF966F58A27DC8D97AD217C5421E7695833BAB171CCA15F7E29A1214/53d04e7cd969431485fdc5e9a56d3115/stp/media/658d8ee10ff84c72a580b9e728bfb480/CAD_PN1030_TNutsFlat_Rollco.stp | 2 | 40 - Slot 8 | M4 | 11 |
|
||
|
|
/storage/5BD2EB144E4B05A7AA1D53CFE4025152D68456725F489D8E6593050E7C6DC4EA/739a0221c8b341599aef21d1b3a14115/stp/media/aa288ad1f3a142669a6f2626b5ddffdb/CAD_PN1035_TNutsFlat_Rollco.stp | 1 | 40 - Slot 8 | M5 | 11 |
|
||
|
|
/storage/B7B05BB5B66FEB34F0CCDDFFAFB4B4CFEACEEDFC9D393687FB5E542E75019078/a55bd5a46d6744d5841c154be153a1a6/stp/media/54612a40d8564663b046a8443a412c71/CAD_PN1040_TNutsFlat_Rollco.stp | 1 | 40 - Slot 8 | M6 | 10 |
|
||
|
|
/storage/E492AA8E007507DD2DC8FBA629E6974BF6F5B4E868D0F099814D245664AC577E/15c89e35ef4b4d198ceeaf97a07cb690/stp/media/b4d9a40419b743b8ad23b6d26b2773a5/CAD_PN1045_TNutsFlat_Rollco.stp | 1 | 40 - Slot 8 | M8 | 9 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
