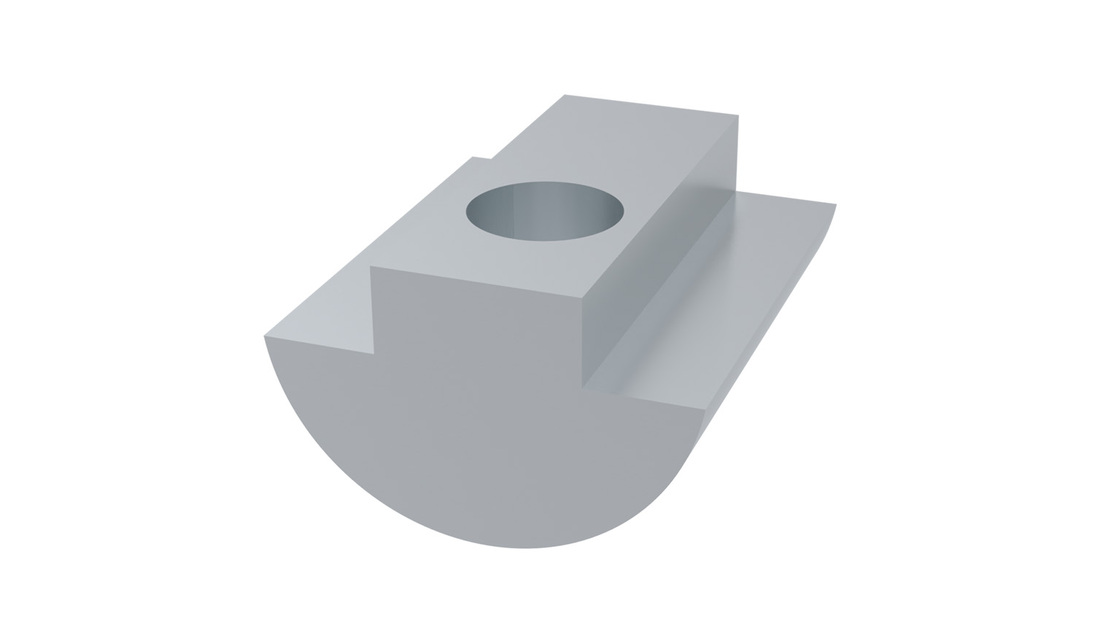

T-Nuts, ball-type, slide-in

Slides in the t-slot from the end of the profile and is held in position by a spring-loaded ball. The wide supporting surface of the t-nut makes it suitable for higher fastening forces. (SV2003V is machined after threading.)
Read more

Product Information

Material: Steel, zinc-plated
System: 40 - Slot 8
Type: T-nuts
Designation Select all CAD Compare Get quote Lead Time * System Thread Weight (g)
Get quote 1 40 - Slot 8 M5 17
Get quote 1 40 - Slot 8 M6 17
Get quote 1 40 - Slot 8 M8 15
Get quote 2 40 - Slot 8 M8 S 14

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
