Gusset Plates AL
For strengthening t- and corner connections

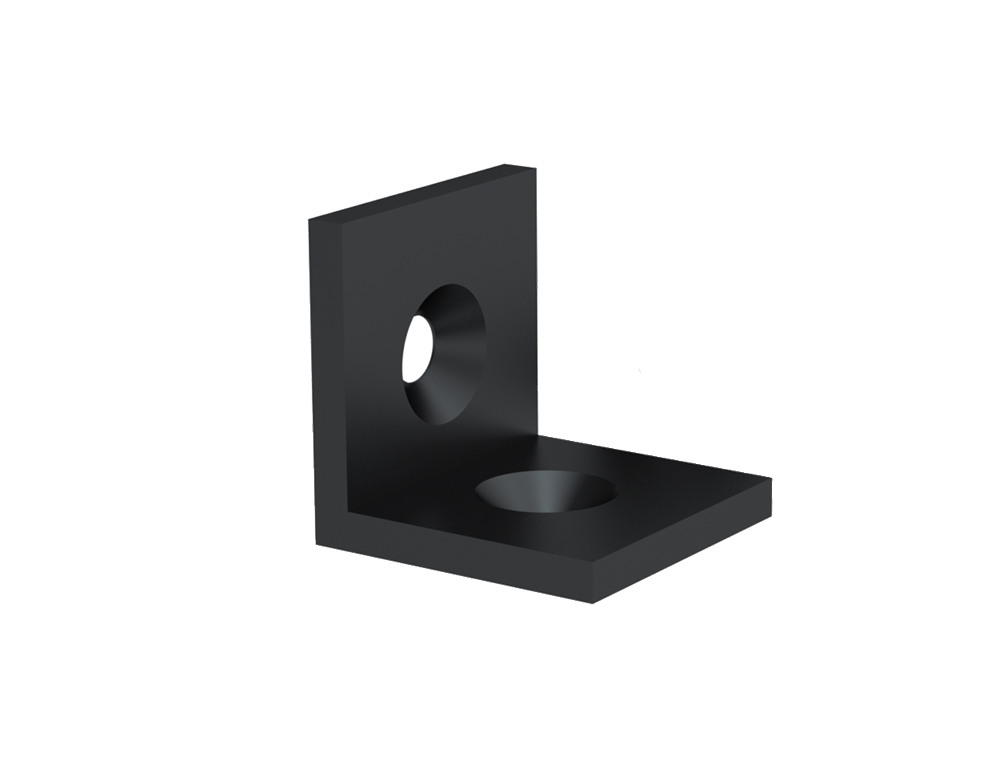

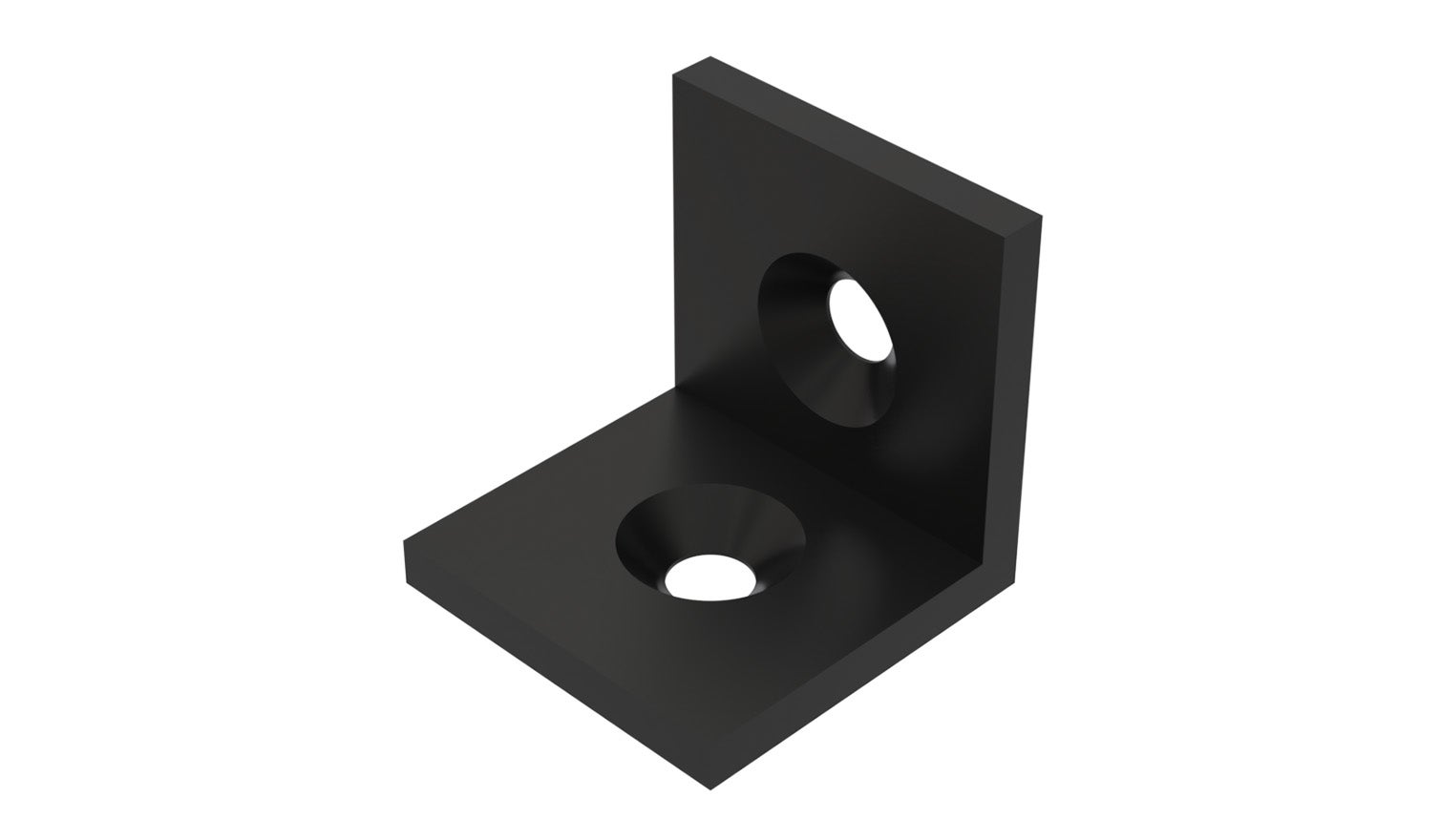

Angle Plate, steel
Universally applicable attachment bracket. Links two aluminium profiles at a right angle.
Mounting material:
M8 × 14 countersunk screw (DIN7991), M8 slot 8 slot nut
Mounting material:
M8 × 14 countersunk screw (DIN7991), M8 slot 8 slot nut
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Steel, black
System: 40 - Slot 8

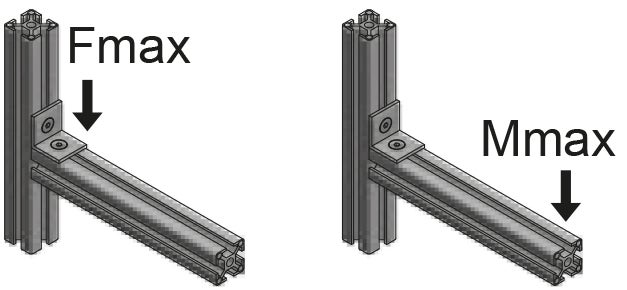

| Designation | Select all | Lead Time * | Description | System | Fmax (N) | Mmax (Nm) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/E8ECBDE5100B37A38359972238715F8A9C91463E8F95B5EB5288890EE3F2F34E/b249859d27b34308b7ab722e966c1543/stp/media/a9ddc193ca044efa87c6d201d95b1d5b/CAD_PZ1125_AnglePlate_Rollco.stp | 1 | Bracket 40 × 40 | 40 - Slot 8 | 1500 | 50 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
