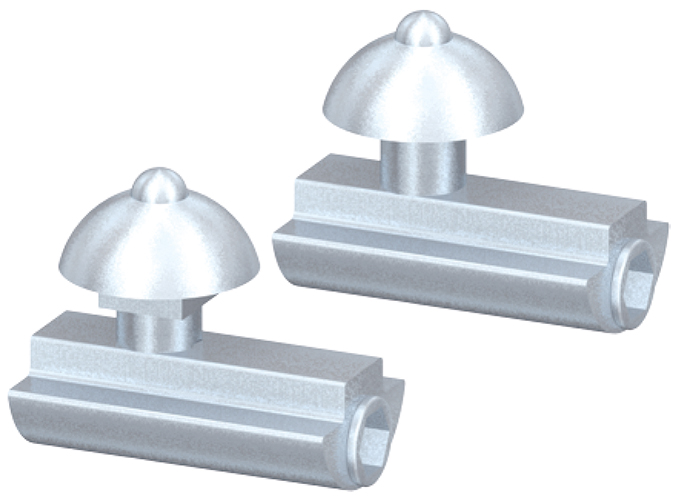

Central Fastener 40 SPS / SVPS
Application:
All purpose universal fastener. The anchor must be positioned in the profile t-slot from the end of the profile and is held in position by a spring-loaded ball. The Central Fastener 40 SVPS has an anti-twist feature. No drilling required.
Assembly:
Slide anchor into the t-slot profile which is to be connected. Slide t-nut portion of into the t-slot from the end of the profile. Lock in anchor with set screw located in t-nut portion of fastener.
All purpose universal fastener. The anchor must be positioned in the profile t-slot from the end of the profile and is held in position by a spring-loaded ball. The Central Fastener 40 SVPS has an anti-twist feature. No drilling required.
Assembly:
Slide anchor into the t-slot profile which is to be connected. Slide t-nut portion of into the t-slot from the end of the profile. Lock in anchor with set screw located in t-nut portion of fastener.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Steel, zinc-plated
System: 40 - Slot 8
| Designation | Select all | Lead Time * | Description | Weight (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|
|
|
/storage/E631B0552BC42F387219C69C2446A6C30B43FEE3AAAF3FB405DFCAB0A57EABB7/e2bceaf144da4b46b013e4bfb9e9b81c/stp/media/580a588b9dcc46468bc4190e37869dce/CAD_SV1231V_CentralFastener40SPSSVPS_Rollco.stp | 2 | Central Fastener 40 SPS | 35 |
|
||
|
|
/storage/F964BB4360699F8EBC11138B391E990CEAA00310836DB7232B3A833C96A9B9F1/d0ffcc38325c46f9ac1a974e788fd483/stp/media/17c6451c53e34ebb92882fdc9ef942e6/CAD_SV1241V_CentralFastener40SPSSVPS_Rollco.stp | 2 | Central Fastener 40 SVPS | 35 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
