SBI SV

STOCK ITEM

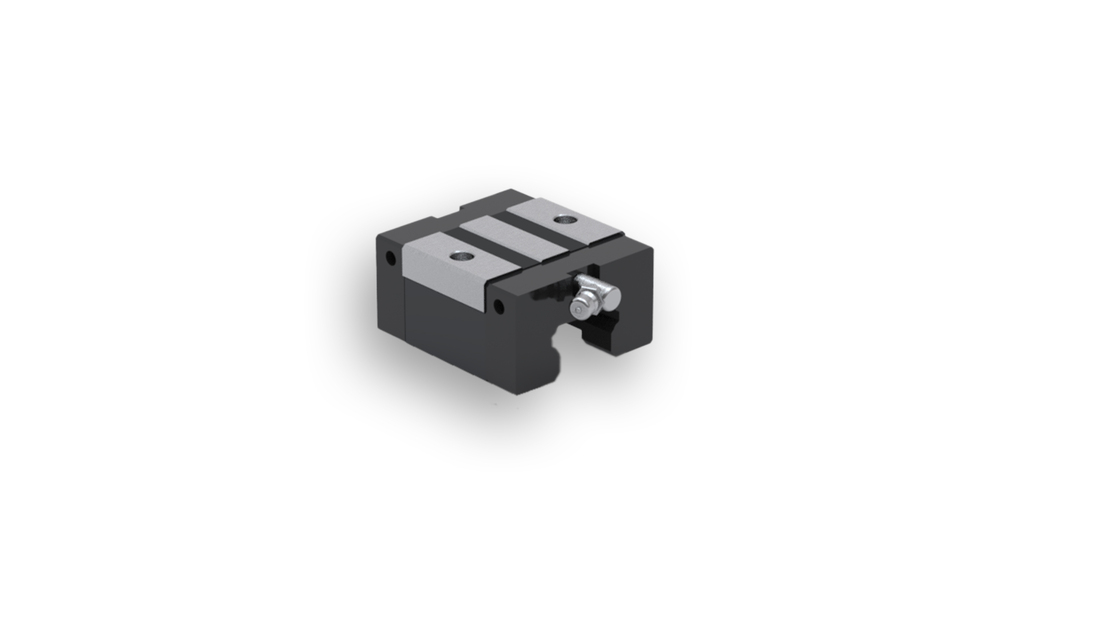

Super short block without flange. Side-nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

Linear_Rail_SBI_Technical_Information.pdf
Linear_Rail_SBI_OrderCodes.pdf
Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) Weight Block (g) Weight Rail (g/m) CAD Compare
1 5800 12800 40 30 30 18 14 14 100 1300
Get quote
1 9400 20200 120 100 100 56 47 47 240 2200
Get quote
1 12400 26100 190 170 170 90 81 81 370 3000
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L) W2 CAD Compare
24 34 39.9 9.5
Get quote
28 44 49.1 12
Get quote
33 48 52.6 12.5
Get quote
Designation Select all P2 CAD Compare
26
Get quote
32
Get quote
35
Get quote
Designation Select all W1 H1 P D x d x g1 Length Hole Pitch (P) CAD Compare
15 13 60 7.5 x 4.5 x 5.5 3000 60
Get quote
20 16.5 60 9.5 x 6 x 8.5 4000 60
Get quote
23 20 60 11 x 7 x 9 4000 60
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 S1 E S2 N3 N1 N2 MxDP T H1 CAD Compare
39.9 34 21.3 21 9.5 4.5 5.5 3.8 3.4 M4x0.7 Ø 3.5 M4x4 6 13
Get quote
49.1 44 27.1 23.4 12 4.8 12 4 5 M6x0.75 Ø 3.5 M5x5 7.8 16.5
Get quote
52.6 48 30.6 27.5 12.5 5.4 12 5.4 5 M6x0.75 Ø 3.5 M6x6 9 20
Get quote
