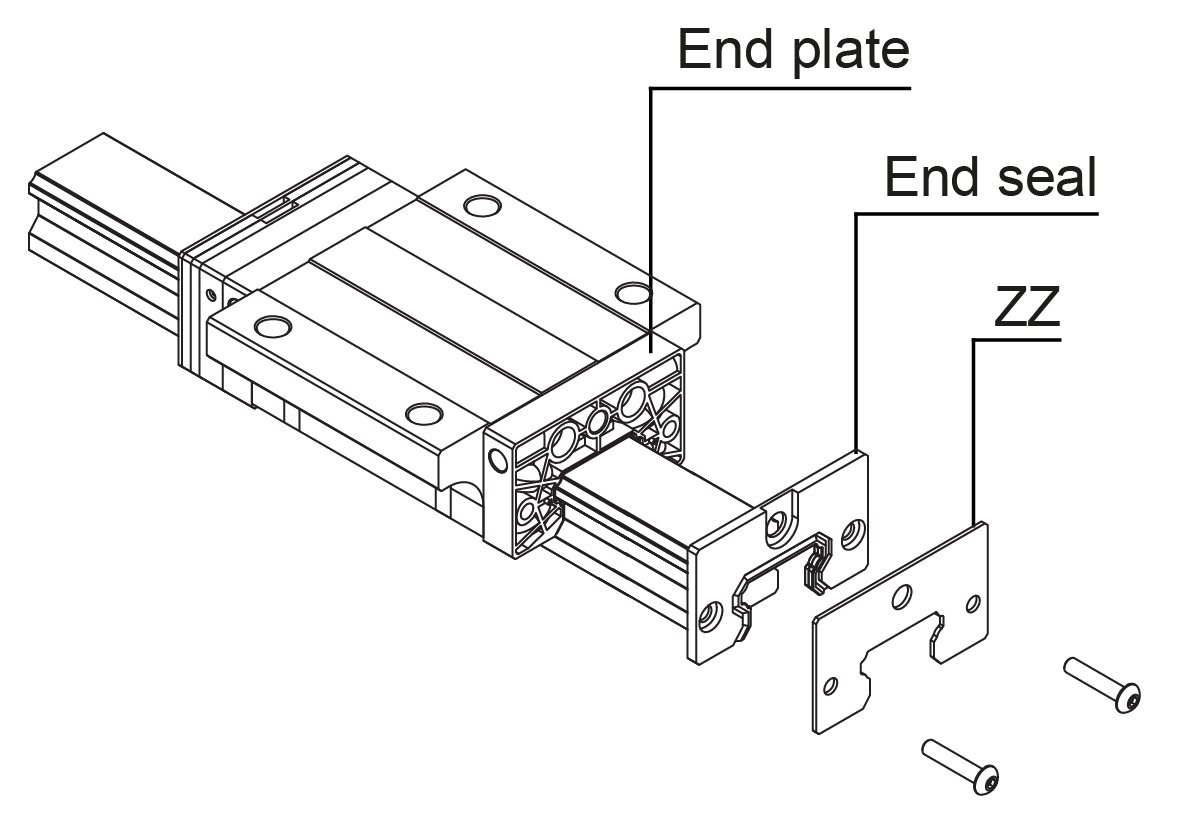

Steel Scraper

Steel scrapers can be added to the additional rubber-seals. Blocks with side-nipple can be supplied.

For all blocks ordered with both MF lubrication system and the steel scraper, the blocks will be supplied with side nipple. Please contact Rollco for more information.

Dimensions in mm.

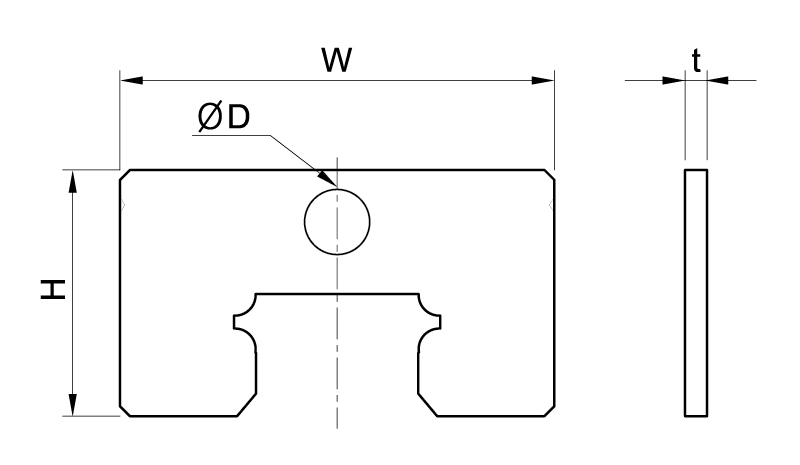

Technical Drawing
Designation Block Type W t H D
FL/FLL/HL/HLL/SL/SLL/FV/SV 33,40 1,20 20,20 4
FL/FLL/SL/SLL 43,40 1,20 24,60 6,50
CL/CLL/FV/SV 43,40 1,20 22,60 6,50
FL/FLL/HL/HLL/SL/SLL 47 1,20 29,70 6,50
CL/CLL/FV/SV 47 1,20 26,70 6,50
FL/FLL/HL/HLL/SL/SLL 59 1,20 34,20 6,50
FL/FLL/HL/HLL/SL/SLL 69 1,20 39,70 6,50
FL/FLL/HL/HLL/SL/SLL 85 1,20 49,70 10,50
FL/FLL/HL/HLL/SL/SLL 98 1,20 56 10,50
FL/FLL/SL/SLL 123 1,20 69 10,50
