MF Container Self Lubricant

STOCK ITEM
For protecting the linear rail system from fine foreign matter and where grease feeding is not easy, the self-lubricant container (MF) is a good option.

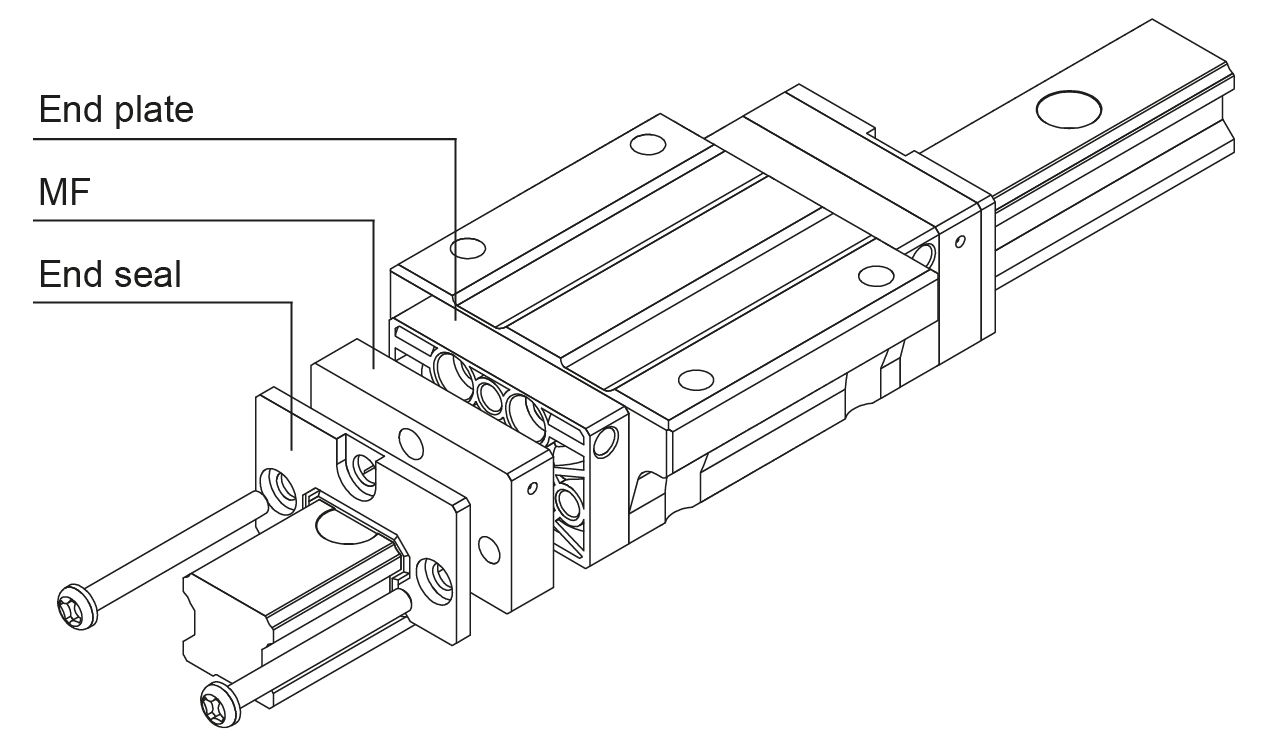

MF (Self lubricating) contains grease impregnated felt which feeds the grease on the raceway continuously. Each compact seal kit will guarantee total surface lubrication and long maintenance free bearing life.

(Wipe the raceway and grease is coating on the raceway) .

Function and classification in accordance with seal type:
MF: Self lubricating for long maintenance intervals

When ordering slider with MF container the slider is supplied without grease nipple. See attached file for Lifetime test.

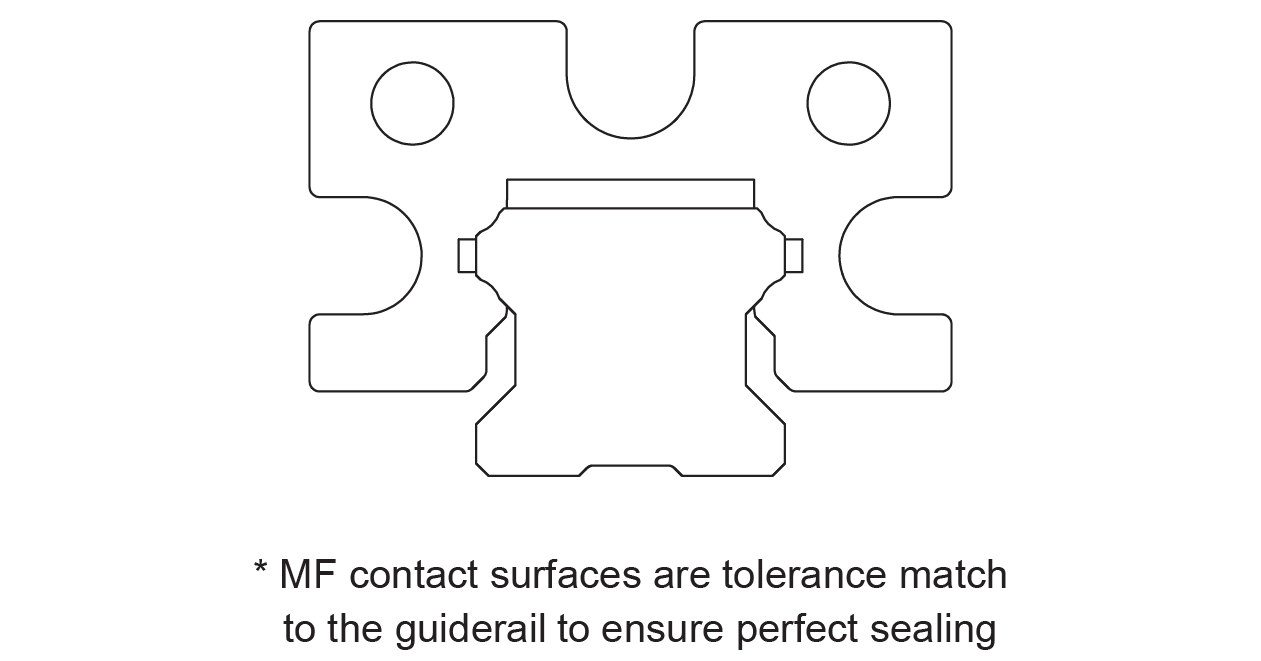

Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Designation Select all Lead Time * Block Type W t H D
1 FL/FLL/HL/HLL/SL/SLL/FV/SV 33,40 7 20,20 4
Get quote
1 FL/FLL/SL/SLL 43,40 7 24,60 6,50
Get quote
1 CL/CLL/FV/SV 43,40 7 22,60 6,50
Get quote
1 FL/FLL/HL/HLL/SL/SLL 47 7 29,70 6,50
Get quote
2 CL/CLL/FV/SV 47 7 26,70 6,50
Get quote
1 FL/FLL/HL/HLL/SL/SLL 59 8 34,20 6,50
Get quote
1 FL/FLL/HL/HLL/SL/SLL 69 8 39,70 6,50
Get quote
1 FL/FLL/HL/HLL/SL/SLL 85 8 49,70 10,50
Get quote
1 FL/FLL/HL/HLL/SL/SLL 98 9 56 10,50
Get quote
2 FL/FLL/SL/SLL 123 9 69 10,50
Get quote

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
