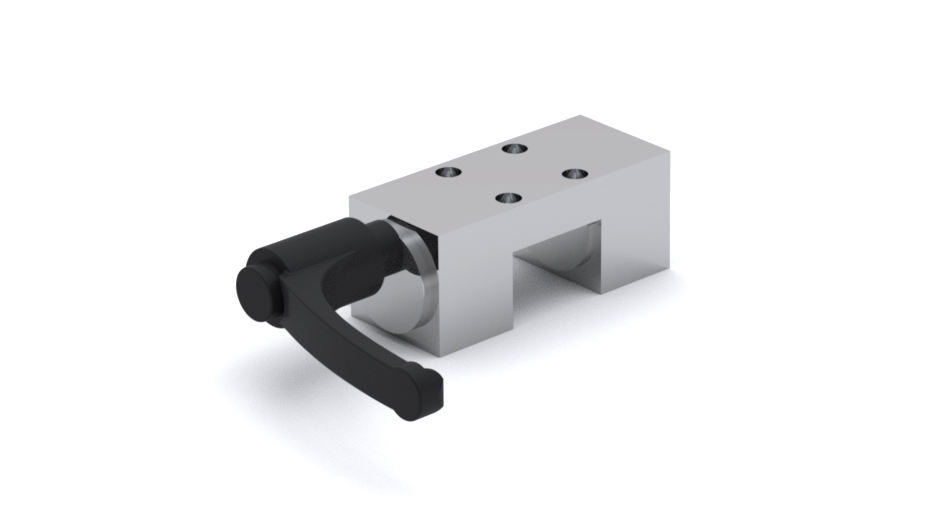

RCS Clamping Element
Clamping elements are designed to be used for holding a position when using SBI Linear Rail Guides.
For other types contact Rollco.
Compatible with Linear Rail SBI only.
Dimensions in mm.
For other types contact Rollco.
Compatible with Linear Rail SBI only.
Dimensions in mm.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | H1 | MxDP | P1 | P2 | P3 | E | Tightening Torque (Nm) | Clamping Force (N) | Compatible with | Remark | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/3B241956A96FB2E5D91C22DEC2D56AA234C90D69CDA3D6FC4C3B66D332F9F0CD/a1862b57a5c44afd9b152df2b5dd01bb/step/media/e8904b5b03a045168a491f71cdfb228d/Clamping-element-RCS-15-Rollco.step | 1 | 45 | M4x6 | 17 | 17 | 41 | 4 | 5 | 1200 | SBI15, SBI15-B | Use Distance Plate RCP15-4 for SBI15SL |
|
||
|
|
/storage/1BECE0C8E14AEF4AE4415ACF197DB247CF7F7D6D014406DD6D8ACB2E25ED8E91/355d9709da3d46c7bc56e084c7ffdbf4/step/media/0bd40883337147e8b7b2953e915413f5/Clamping-element-RCS-20-Rollco.step | 1 | 45 | M5x6 | 15 | 15 | 41 | 4.5 | 5 | 1200 | SBI20, SBI20-B | Use Distance Plate RCP20-2 for SBI20FL, SBI20SL, SBI20FLL, SBI20SLL |
|
||
|
|
/storage/6B37C7196D8E939ED3DFCC5490DFDF5EF6EBBC645CE6E1C33C8D45A5A9E48FD2/65615930eb8f43e5949ccec4cf8c2140/step/media/c7556cc67d8145299a9f8539cbb0eedd/Clamping-element-RCS-25-Rollco.step | 1 | 64 | M6x8 | 20 | 20 | 52 | 5 | 7 | 1200 | SBI25, SBI25-B | Use Distance Plate RCP25-4 for SBI25SL, SBI25SLL |
|
||
|
|
/storage/700E63EAB1180E934F4C8B9DDA4F727F81311EA820E6DBCAD64FAF74552819AC/3a5711184cba48df8345019f84f3a5a3/step/media/b39220c4e08f44a7a5b33f911fbb5e11/Clamping-element-RCS-30-Rollco.step | 1 | 64 | M6x14 | 22 | 22 | 52 | 8.5 | 15 | 2000 | SBI30, SBI30-B | Use Distance Plate RCP30-3 for SBI30SL, SBI30SLL |
|
||
|
|
/storage/F6B533CAE462296F4D3A6636A920B0B288978439FB7E81076C34CEA6EACAC87A/089cd70c1586459f8b1f615b969ce852/step/media/b3febb0cf2e34c2ba1c4844f1c2643f1/Clamping-element-RCS-35-Rollco.step | 1 | 83 | M8x14 | 24 | 24 | 67 | 7.5 | 15 | 2000 | SBI35, SBI35-B | Use Distance Plate RCP35-7 for SBI35SL, SBI35SLL |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | C | E | H | H1 | L | W | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/3B241956A96FB2E5D91C22DEC2D56AA234C90D69CDA3D6FC4C3B66D332F9F0CD/a1862b57a5c44afd9b152df2b5dd01bb/step/media/e8904b5b03a045168a491f71cdfb228d/Clamping-element-RCS-15-Rollco.step | 6.5 | 4 | 24 | 45 | 25 | 47 |
|
||
|
|
/storage/1BECE0C8E14AEF4AE4415ACF197DB247CF7F7D6D014406DD6D8ACB2E25ED8E91/355d9709da3d46c7bc56e084c7ffdbf4/step/media/0bd40883337147e8b7b2953e915413f5/Clamping-element-RCS-20-Rollco.step | 7 | 4.5 | 30 | 45 | 24 | 60 |
|
||
|
|
/storage/6B37C7196D8E939ED3DFCC5490DFDF5EF6EBBC645CE6E1C33C8D45A5A9E48FD2/65615930eb8f43e5949ccec4cf8c2140/step/media/c7556cc67d8145299a9f8539cbb0eedd/Clamping-element-RCS-25-Rollco.step | 7 | 5 | 36 | 64 | 30 | 70 |
|
||
|
|
/storage/700E63EAB1180E934F4C8B9DDA4F727F81311EA820E6DBCAD64FAF74552819AC/3a5711184cba48df8345019f84f3a5a3/step/media/b39220c4e08f44a7a5b33f911fbb5e11/Clamping-element-RCS-30-Rollco.step | 9 | 8.5 | 42 | 64 | 39 | 90 |
|
||
|
|
/storage/F6B533CAE462296F4D3A6636A920B0B288978439FB7E81076C34CEA6EACAC87A/089cd70c1586459f8b1f615b969ce852/step/media/b3febb0cf2e34c2ba1c4844f1c2643f1/Clamping-element-RCS-35-Rollco.step | 13 | 7.5 | 48 | 83 | 39 | 100 |
|
-
