ST Stainless Dustproof Tape
Tape for improved rail sealing
SBI FLL
Long standard block with flange. Side nipple, dustproof end seal and self-lubricant container end seal as option.
* S: Bolt size for bottom mounting type of block
All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option
Please contact Rollco for more information.Dimensions in mm.
* S: Bolt size for bottom mounting type of block
All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option
Please contact Rollco for more information.Dimensions in mm.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information

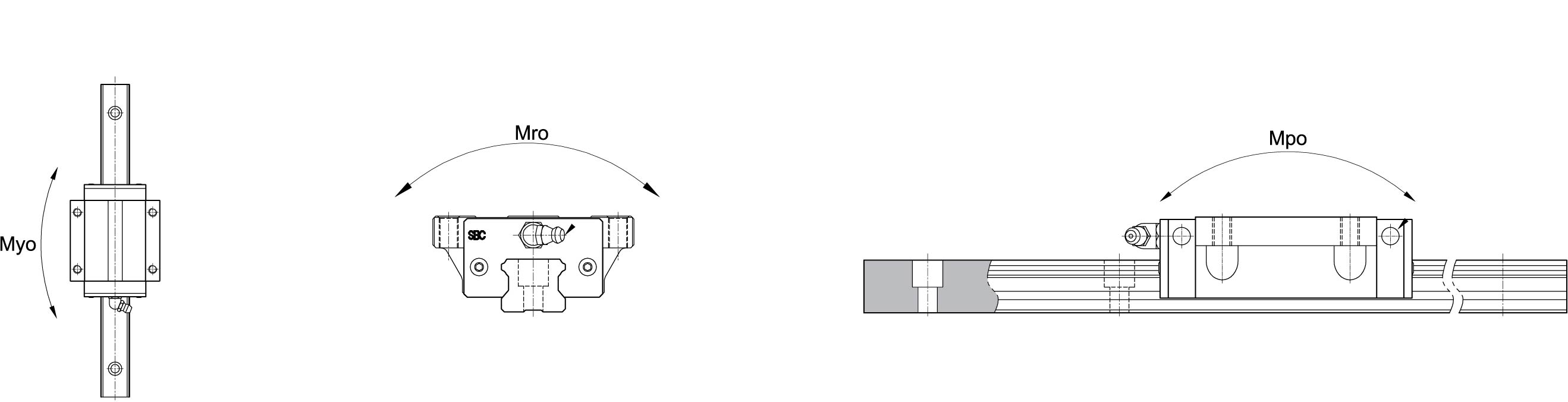

| Designation | Select all | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Weight Block (g) | Weight Rail (g/m) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 17100 | 31700 | 210 | 290 | 290 | 260 | 1300 |
|
|||
|
|
1 | 27900 | 50000 | 470 | 560 | 560 | 540 | 2200 |
|
|||
|
|
1 | 36700 | 64400 | 690 | 840 | 840 | 850 | 3000 |
|
|||
|
|
1 | 51300 | 84700 | 1100 | 1300 | 1300 | 1370 | 4250 |
|
|||
|
|
1 | 71300 | 115300 | 1830 | 2120 | 2120 | 2040 | 6020 |
|
|||
|
|
1 | 94800 | 150500 | 3210 | 3140 | 3140 | 3690 | 9770 |
|
|||
|
|
1 | 147900 | 224500 | 5950 | 4780 | 4780 | 5820 | 13720 |
|
|||
|
|
1 | 232500 | 354100 | 11150 | 9860 | 9860 | 11980 | 23170 |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

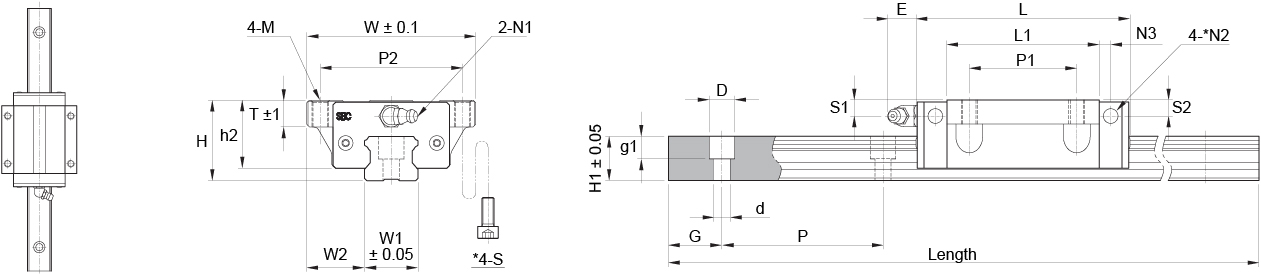

| Designation | Select all | W1 | H1 | P | D x d x g1 | Length | Hole Pitch (P) | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
15 | 13 | 60 | 7,5 x 4.5 x 5,5 | 3000 | 60 |
|
|||
|
|
20 | 16,50 | 60 | 9,5 x 6 x 8,5 | 4000 | 60 |
|
|||
|
|
23 | 20 | 60 | 11 x 7 x 9 | 4000 | 60 |
|
|||
|
|
28 | 23 | 80 | 14 x 9 x 12 | 4000 | 80 |
|
|||
|
|
34 | 26 | 80 | 14 x 9 x 12 | 4000 | 80 |
|
|||
|
|
45 | 32 | 105 | 20 x 14 x 17 | 4000 | 105 |
|
|||
|
|
53 | 38 | 120 | 23 x 16 x 20 | 4000 | 120 |
|
|||
|
|
63 | 53 | 150 | 26 x 18 x 22 | 4000 | 150 |
|
| Designation | Select all | L1 | h2 | W2 | S1 | E | S2 | N3 | N1 | N2 | T | H1 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
60,80 | 21 | 16 | 4,50 | 5,50 | 3,80 | 3,80 | M4x0,7 | Ø 3,5 | 9 | 13 |
|
|||
|
|
74,40 | 25,40 | 21,50 | 6 | 12 | 5,80 | 5 | M6x0,75 | Ø 3,5 | 12 | 16,50 |
|
|||
|
|
86 | 30,50 | 23,50 | 6 | 12 | 5 | 5 | M6x0,75 | Ø 3,5 | 14 | 20 |
|
|||
|
|
103,60 | 35 | 31 | 8,50 | 12 | 7,80 | 5 | M6x0,75 | Ø 5,7 | 15,50 | 23 |
|
|||
|
|
122,60 | 40,50 | 33 | 8 | 12 | 8 | 6 | M6x0,75 | Ø 5,7 | 15 | 26 |
|
|||
|
|
140 | 51 | 37,50 | 10,50 | 13,50 | 9,30 | 6,50 | PT 1/8 | Ø 5,7 | 18 | 32 |
|
|||
|
|
170,40 | 58 | 43,50 | 12 | 13 | 12 | 8 | PT1/8 | Ø 8,7 | 22 | 38 |
|
|||
|
|
222,80 | 71 | 53,50 | 14 | 13 | 14 | 10 | PT1/8 | Ø 8,7 | 26 | 53 |
|
-
-
DF Seal High Dust Proof
Dustproof end seal -
MF Container Self Lubricant
Self-lubricant container, end seal -
RCS Clamping Element
Manually operated clamping element -
Adapter Plate for RCS Clamping Element
To compensate for different block heights
-
Standard Rail SBI
Counterbore from above -
Bottom Mounting Rail SBI-B
Tapped from the bottom
