SBI HLL / SBI CLL - Block Narrow Long Types

Dimensions in mm.

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.

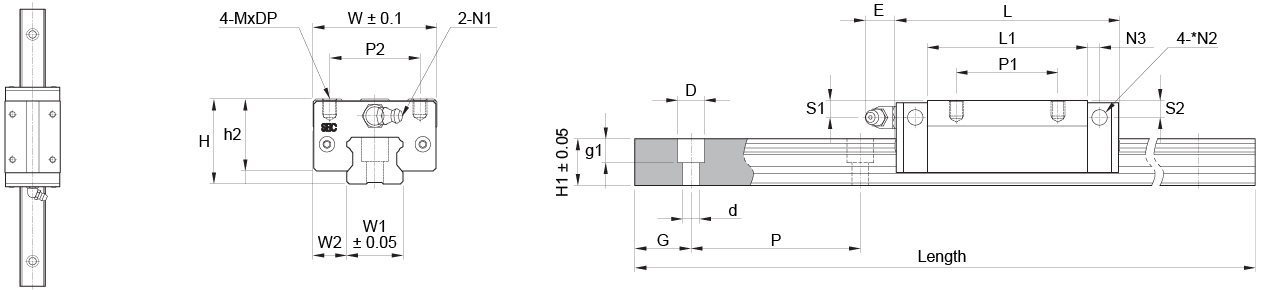

Technical Drawing
Designation Lead Time * System Height (H) System Width (W) Block Length (L) Length Hole Pitch (P) Dxdxg1 H1 MxDP W1 P1 P2 E
1 24 34 79,40 3 000 60 7,5 x 4,5 x 5,5 13 M4x4 15 34 26 5,50
1 28 44 96,40 4 000 60 9,5 x 6 x 8,5 16,50 M5x5 20 50 32 12
2 33 48 108 4 000 60 11 x 7 x 9 20 M6x6 23 50 35 12
1 36 48 108 4 000 60 11 x 7 x 9 20 M6x6 23 50 35 12
1 42 60 131,60 4 000 80 14 x 9 x 12 23 M8x8 28 60 40 12
2 48 70 152,60 4 000 80 14 x 9 x 12 26 M8x8 34 72 50 12
2 60 86 174 4 000 105 20 x 14 x 17 32 M10x10 45 80 60 13,50
2 70 100 211,80 4 000 120 23 x 16 x 20 38 M12x12 53 95 75 13

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation E G H1 h2 L1 N1 N2 N3 S1 S2 W1 W2
5,50 20 13 21 60,80 M4x0,7 Ø 3,5 3,80 4,50 3,80 15 9,50
12 20 16,50 23,40 74,40 M6x0,75 Ø 3,5 5 4,80 4 20 12
12 20 20 27,50 86 M6x0,75 Ø 3,5 5 5,40 5,40 23 12,50
12 20 20 30,50 86 M6x0,75 Ø 3,5 5,50 6 5 23 12,50
12 20 23 35 103,60 M6x0,75 Ø 5,7 5 8,50 7,80 28 16
12 20 26 40,50 122,60 M6x0,75 Ø 5,7 6 8 8 34 18
13,50 22,50 32 51 140 PT1/8 Ø 5,7 6,50 10,50 9,30 45 20,50
13 30 38 58 170,40 PT1/8 Ø 8,7 8 12 12 53 23,50

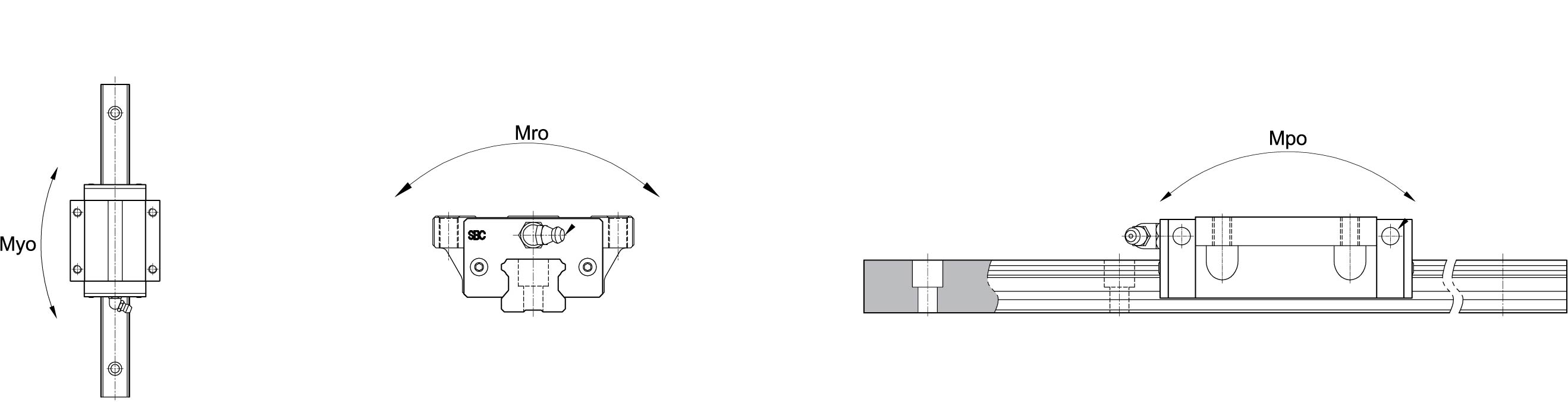

Additional Drawing 1
Designation Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block Weight Rail
17100 N 31700 N 210 Nm 290 Nm 290 Nm 260 g 1300 g/m
27900 N 50000 N 470 Nm 560 Nm 560 Nm 520 g 2200 g/m
36700 N 64400 N 690 Nm 840 Nm 840 Nm 820 g 3000 g/m
36700 N 64400 N 690 Nm 840 Nm 840 Nm 850 g 3000 g/m
51300 N 84700 N 1100 Nm 1300 Nm 1300 Nm 1370 g 4250 g/m
71300 N 115300 N 1830 Nm 2120 Nm 2120 Nm 2040 g 6020 g/m
94800 N 150500 N 3210 Nm 3140 Nm 3140 Nm 3690 g 9770 g/m
147900 N 224500 N 5950 Nm 4780 Nm 4780 Nm 5820 g 13720 g/m
