SBI FV

Corrosion Resistant Option STOCK ITEM
Super short block with flange. Side nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

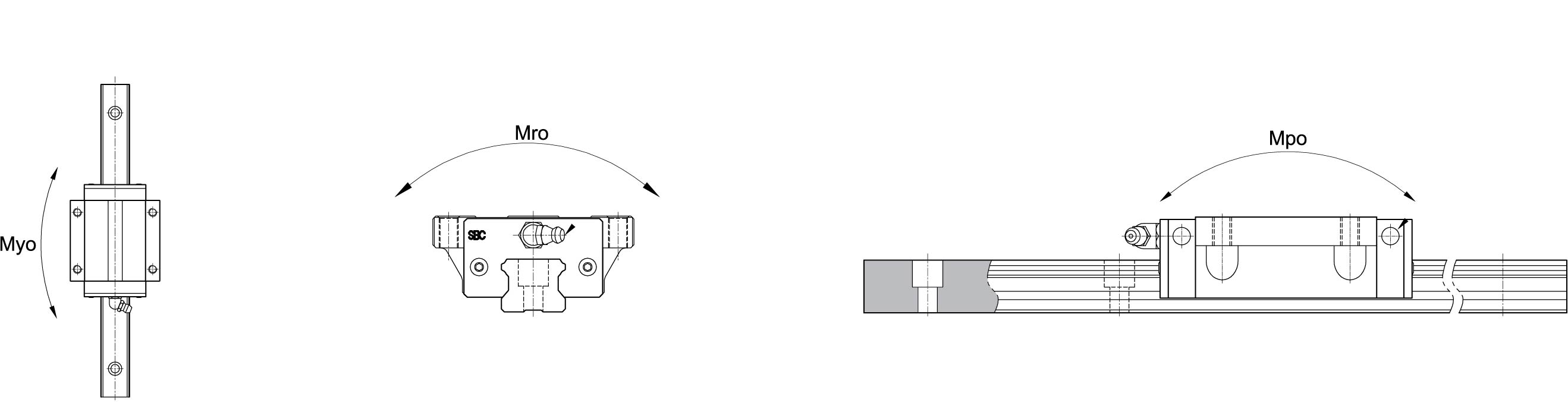

Designation Select all Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Weight Block (g) Weight Rail (g/m)
1 5800 12800 40 30 30 100 1300
Get quote
1 9400 20200 120 100 100 240 2200
Get quote
1 12400 26100 190 170 170 370 3000
Get quote

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

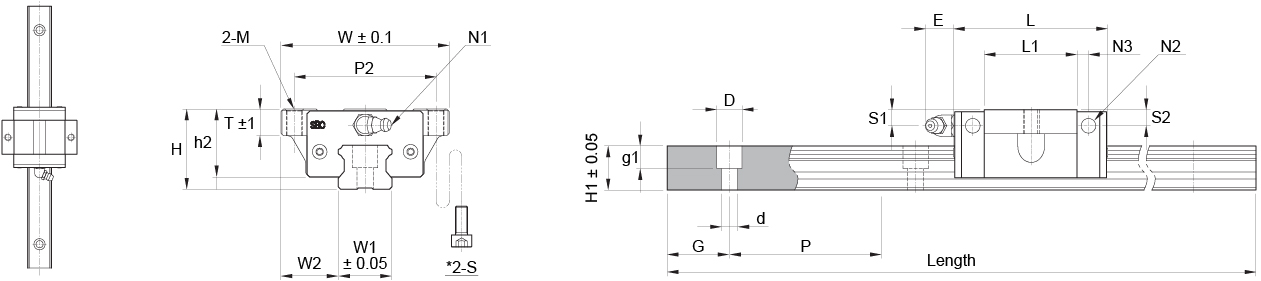

Designation Select all System Height (H) System Width (W) Block Length (L)
24 47 39,90
Get quote
28 63 49,10
Get quote
33 70 52,60
Get quote
Designation Select all P2 M S
38 M5 M4
Get quote
53 M6 M5
Get quote
57 M8 M6
Get quote

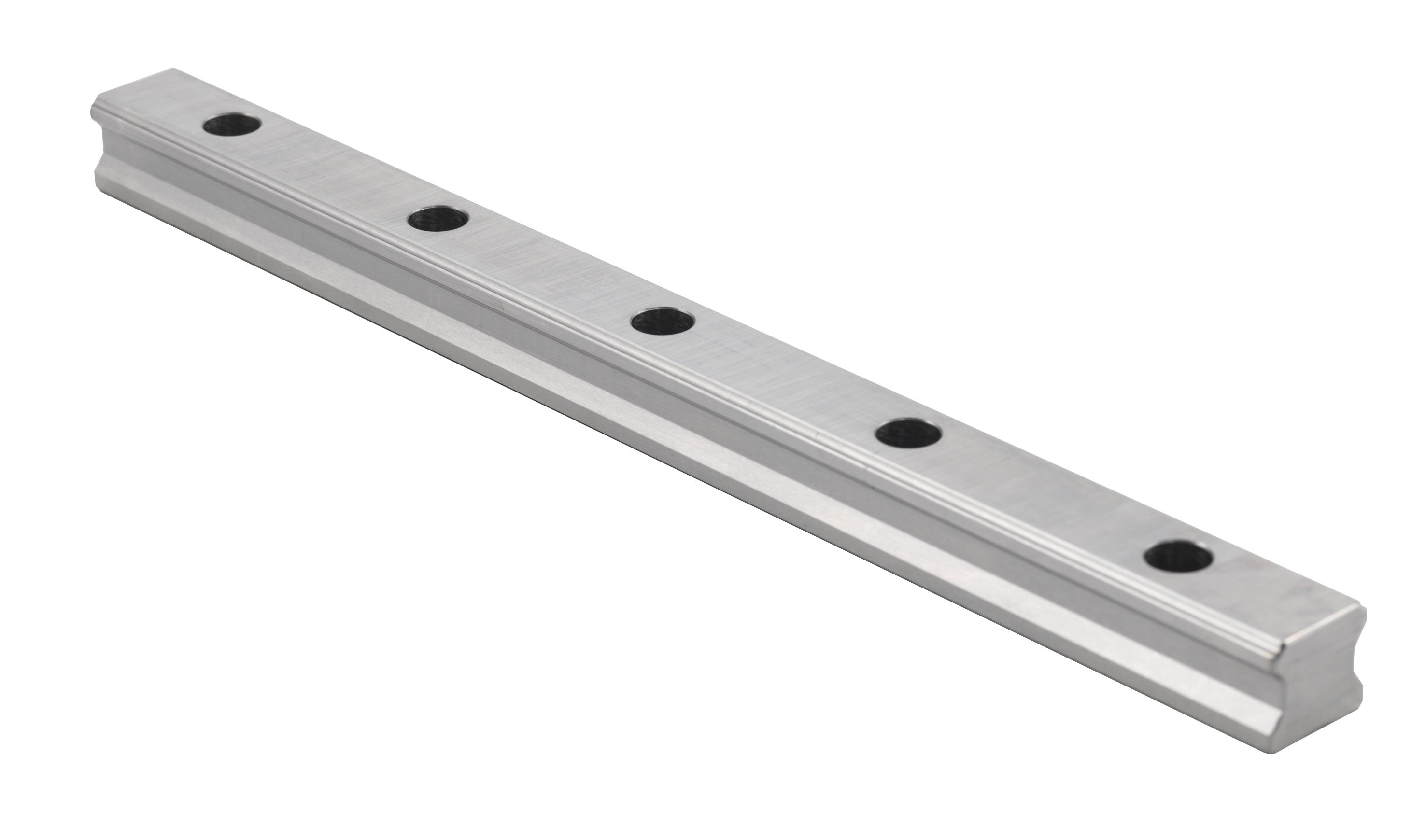

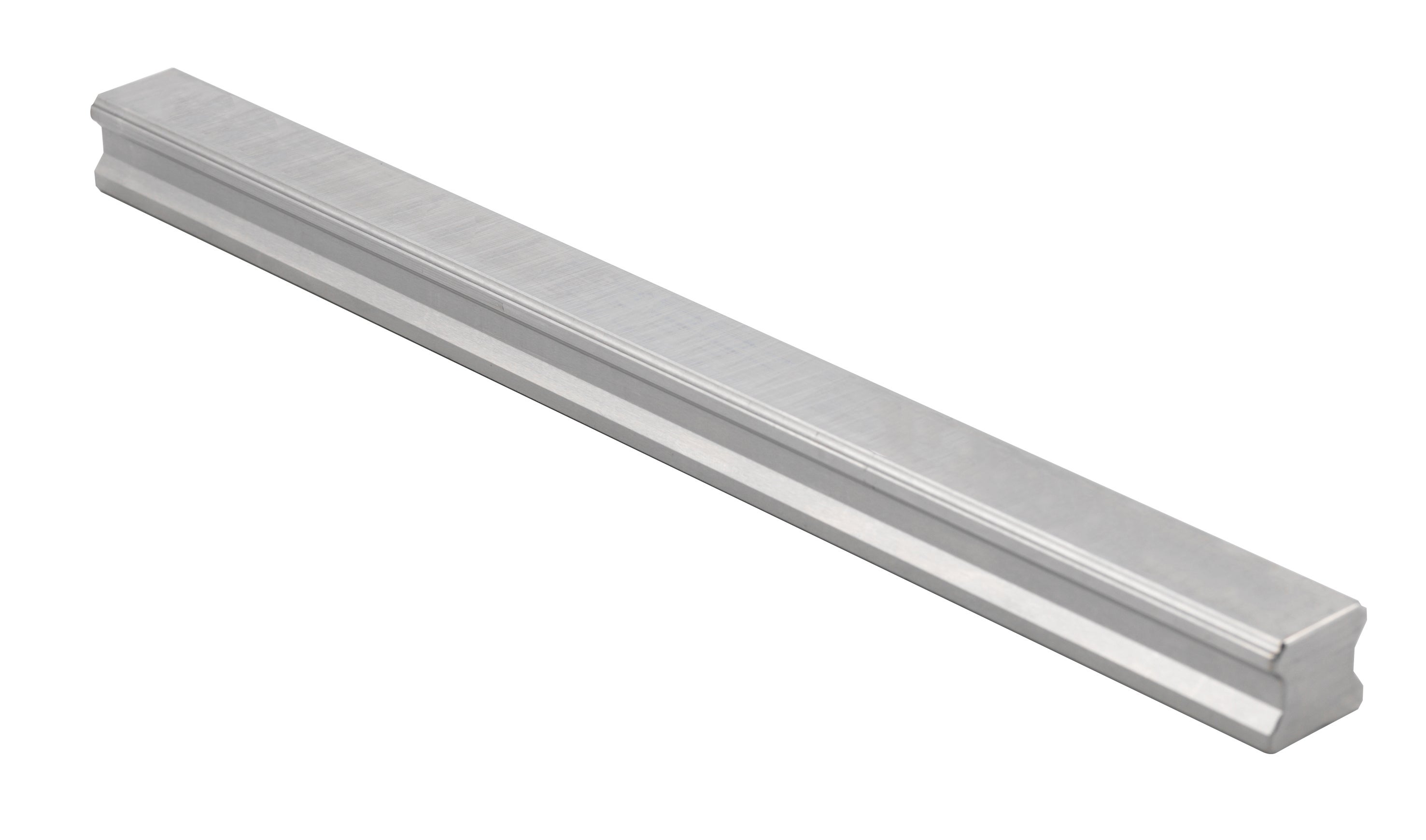

Designation Select all W1 H1 P D x d x g1 Length Hole Pitch (P)
15 13 60 7,5 x 4,5 x 5,5 3000 60
Get quote
20 16,50 60 9,5 x 6 x 8,5 4000 60
Get quote
23 20 60 11 x 7 x 9 4000 60
Get quote
Designation Select all L1 h2 W2 S1 E S2 N3 N1 N2 T H1
21,30 21 16 4,50 5,50 3,80 3,40 M4x0,7 Ø 3,5 8,80 13
Get quote
27,10 23,40 21,50 4,80 12 4 5 M6x0,75 Ø 3,5 8 16,50
Get quote
30,60 27,50 23,50 5,40 12 5,40 5 M6x0,75 Ø 3,5 9 20
Get quote
