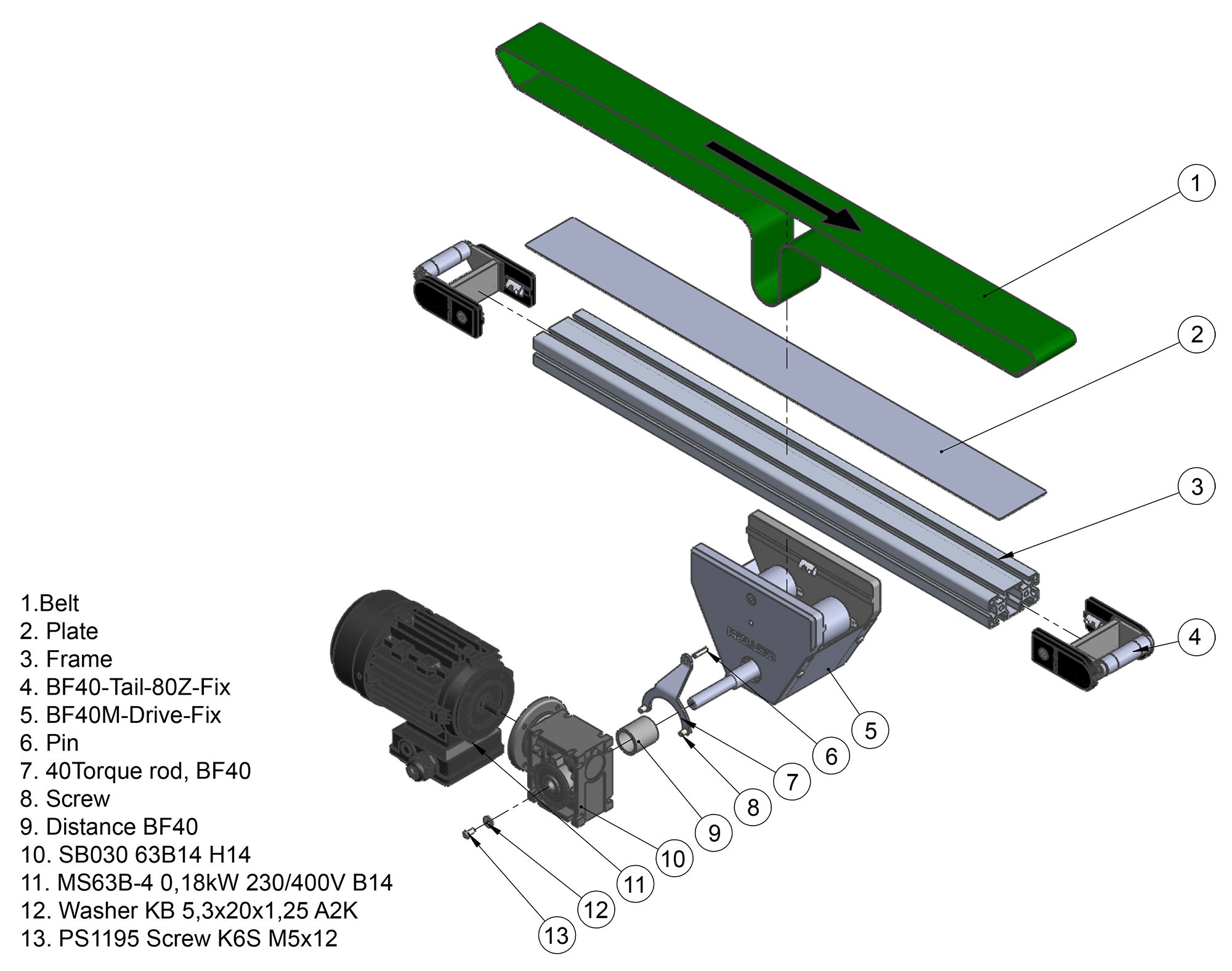

BF40MDK

LOCALLY MANUFACTURED
This is a selection of BF40MDK standard conveyor sizes. Given speeds are based on using an MS63B-4 with the appropriate SB030 gear.

Recommended max. load 75 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.

Dimensions in mm.

For other dimensions please contact Rollco.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Length (mm): Up to 4000
Gear ratio (I): 5 / 7.5 / 10 / 15 / 20 / 25 / 30 / 40 / 50
Speed (m/min): 37 (37.3) / 25 (24.9) / 19 (18.7) / 12 (12.4) / 9 (9.4) / 8 (7.5) / 6 (6.2) / 5 (4.7) / 4 (3.7)
Drive side: Right/left
Motor position: Horizontal/vertical — 1-4
Designation Select all Width (mm)
40
Get quote
80
Get quote
120
Get quote
160
Get quote
200
Get quote
250
Get quote
300
Get quote
350
Get quote
400
Get quote
