BF40M

LOCALLY MANUFACTURED
This is a selection of BF40M standard conveyor sizes. Given speeds are based on using an MS63B-4 with the appropriate SB030 gear.

Recommended max. load 75 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.

Dimensions in mm.

For other dimensions please contact Rollco.
Download PDF

Product Information

Length (mm): Up to 4000
Gear ratio (I): 5 / 7,5 / 10 / 15 / 20 / 25 / 30 / 40 / 50
Speed (m/min): 37 (37,3) / 25 (24,9) / 19 (18,7) / 12 (12,4) / 9 (9,4) / 8 (7,5) / 6 (6,2) / 5 (4,7) / 4 (3,7)
Drive side: Right/left
Motor position: Horizontal/vertical — 1-4

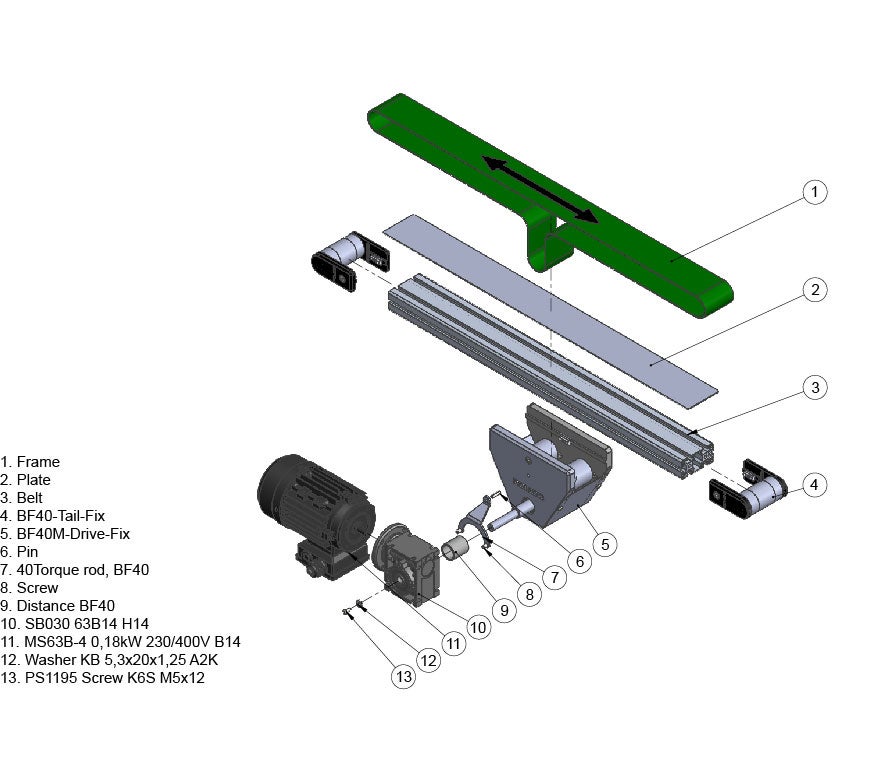

Technical Drawing
Designation Select all Width (mm)
40
Compare
Get quote
80
Compare
Get quote
120
Compare
Get quote
160
Compare
Get quote
200
Compare
Get quote
250
Compare
Get quote
300
Compare
Get quote
350
Compare
Get quote
400
Compare
Get quote
