Tracking Guides

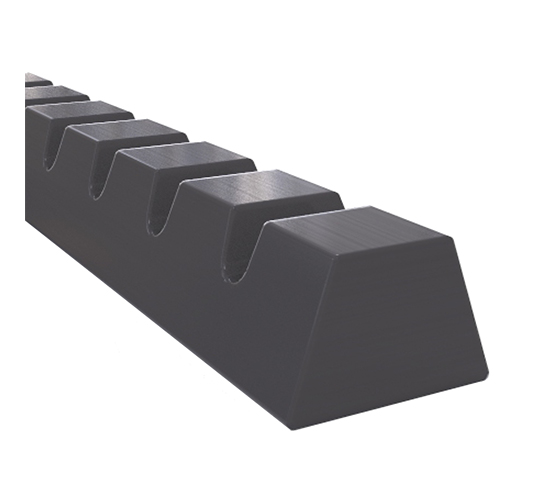

This profile is used as a tracking guide. It is longitudinally applied on the running side of a belt, mainly in applications where transversal forces occur.

Highly flexible V-shaped notched PVC-profile running over pulleys with a specifically shaped groove.

Profiles are applied to the belt using hot air welding or glue.

Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Designation Select all Code Material B H S Weight (kg/m) ø
1 TPU 6 4 4 0.03 Min. 40
2 TPU 8 5 5 0.04 Min. 40
3 TPU 10 6 6 0.06 Min. 40
