Motors for BF40
Standard motors for BF40 conveyors

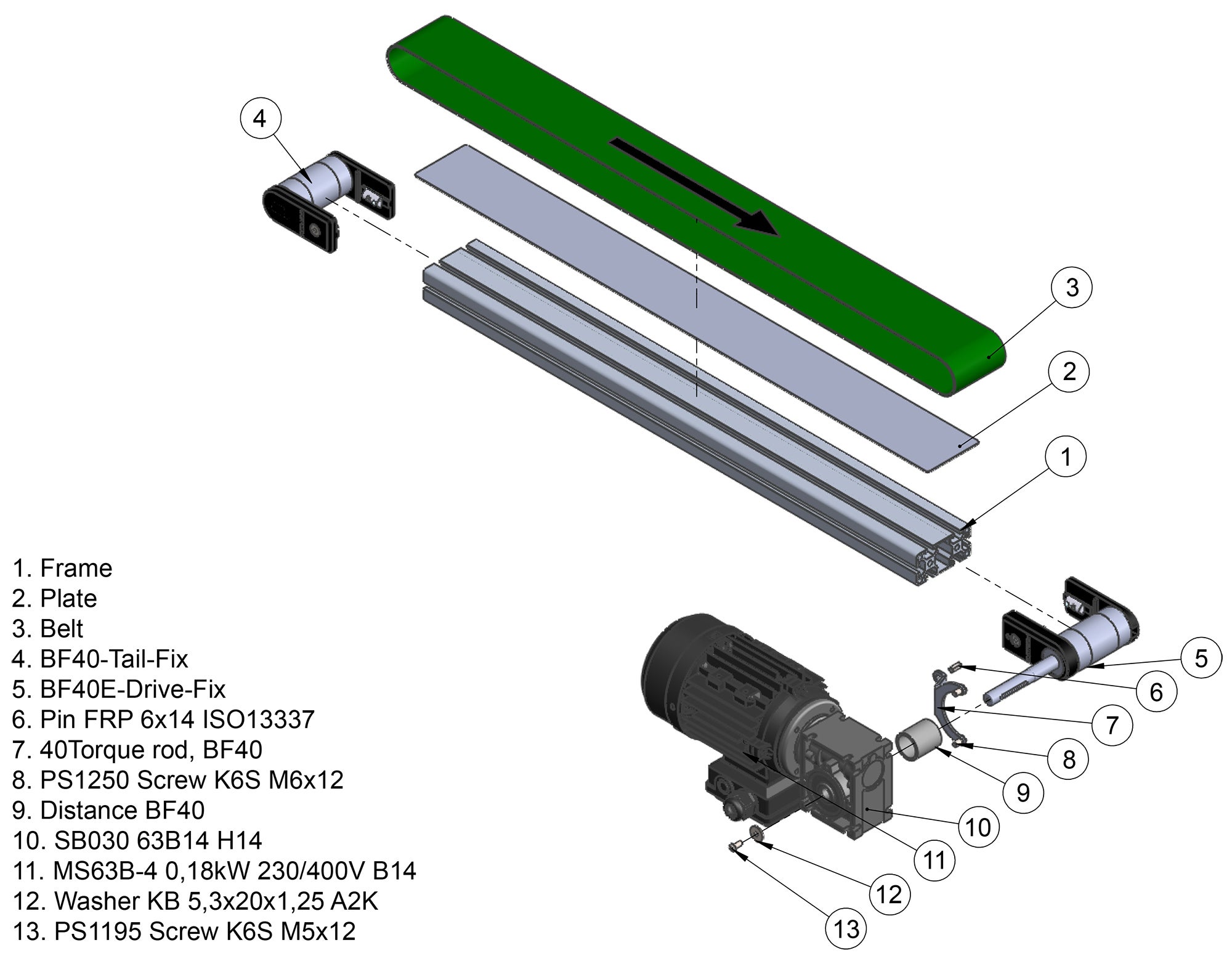

BF40E
This is a selection of BF40E standard conveyor sizes. Given speeds are based on using an MS63B-4 with the appropriate SB030 gear.
Recommended max. load 75 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.
Dimensions in mm.
For other dimensions please contact Rollco.
Recommended max. load 75 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.
Dimensions in mm.
For other dimensions please contact Rollco.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Length (mm): Up to 4000
Gear ratio (I): 5 / 7.5 / 10 / 15 / 20 / 25 / 30 / 40 / 50
Speed (m/min): 37 (37.3) / 25 (24.9) / 19 (18.7) / 12 (12.4) / 9 (9.4) / 8 (7.5) / 6 (6.2) / 5 (4.7) / 4 (3.7)
Drive side: Right/left
Motor position: Horizontal/vertical — 1-4
-
-
