Motors for BF40

This is a selection of standard motors available for our BF40 series.

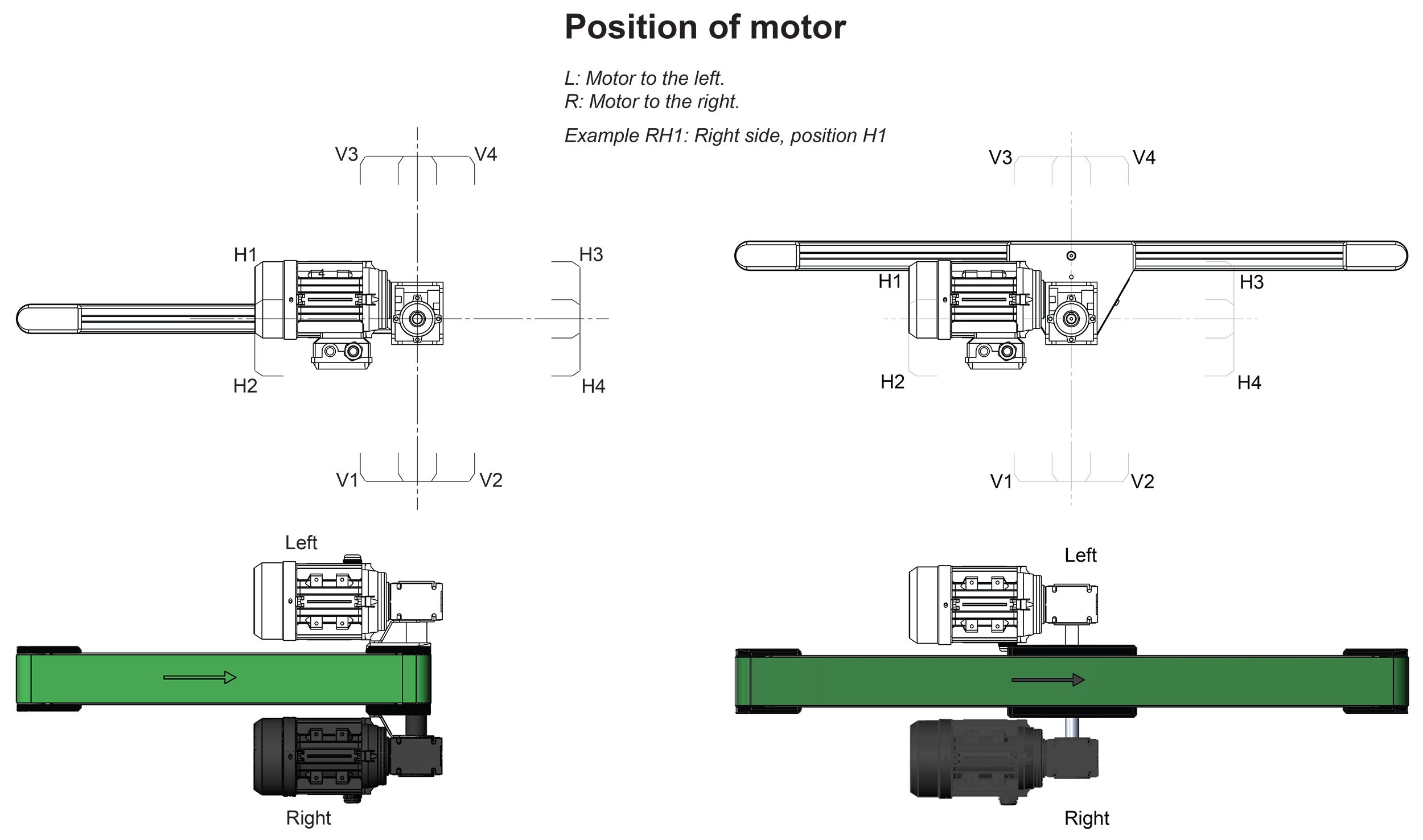

We can customise the drive shaft to accommodate many different motors and gear choices. Please contact Rollco for more information.

Dimensions in mm.

NOTE!
Other motors and frequency converters are available on request. Individual motors are not tested. Motors and gears are not assembled to the unit.
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

Belt_Conveyors_Order_Codes.pdf
Designation Select all Voltage (V) Power (kW) Frequency (Hz) Current (A) Speed (rpm) Protection Class Phase Code Compare
230/400 0.12 50 0.82 / 0.47 1350 IP55 3 1
230/400 0.18 50 1.18 / 0.68 1350 IP55 3 2
230/400 0.25 50 1.58 / 0.91 1340 IP55 3 3
230/400 0.18 50 1.36 1340 IP55 1 4
