BF80E

LOCALLY MANUFACTURED

This table shows a selection of BF80E standard conveyor sizes. Given speeds are based on using an MS71A-4 with the appropriate SB050 gear.

Recommended max. load 150 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.

Dimensions in mm.

For other dimensions please contact Rollco.

Ladda ner PDF (all data) Generating PDF

+ Lägg till i PDF-katalog

Product Information

Length (mm): Up to 6000

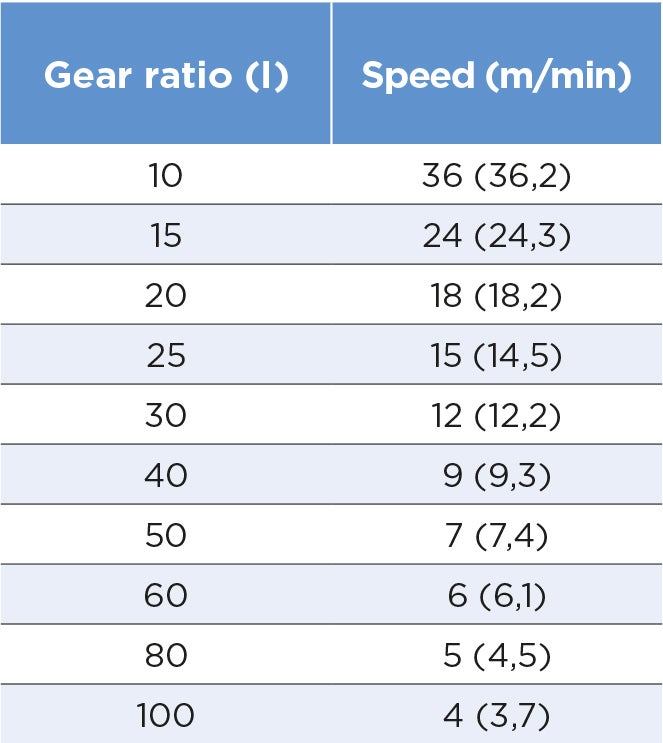

Gear ratio (I): 10 / 15 / 20 / 25 / 30 / 40 / 50 / 60 / 80 / 100

Speed (m/min): 36 (36.2) / 24 (24.3) / 18 (18.2) / 15 (14.5) / 12 (12.2) / 9 (9.3) / 7 (7.4) / 6 (6.1) / 5 (4.5) / 4 (3.7)

Drive side: Right/left

Motor Position: Horizontal/vertical — 1-4

Belt_Conveyors_Order_Codes.pdf

Manual%20Belt%20Conveyor%20BF%20Series_English.pdf

CAD-Drawing

Designation	Width (mm)
BF80E - 500	500	Get quote
BF80E - 600	600	Get quote
BF80E - 700	700	Get quote
BF80E - 800	800	Get quote
BF80E - 900	900	Get quote
BF80E - 1000	1000	Get quote
