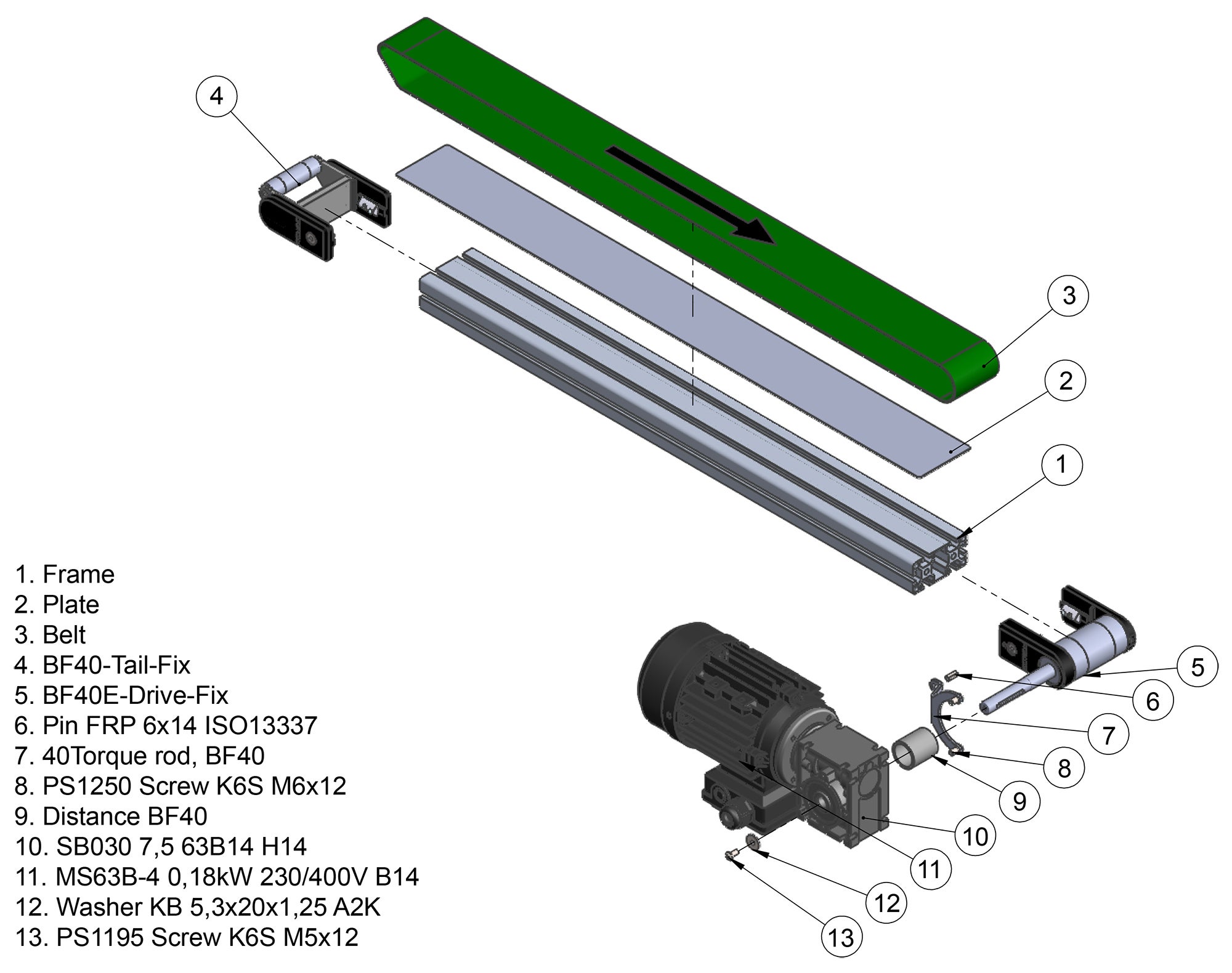

BF40EIK

LOCALLY MANUFACTURED

This is a selection of BF40EIK standard conveyor sizes. Given speeds are based on using an MS63B-4 with the appropriate SB030 gear.

Recommended max. load 75 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.

Dimensions in mm.

For other dimensions please contact Rollco.

Ladda ner PDF (all data) Generating PDF

+ Lägg till i PDF-katalog

Product Information

Length (mm): Up to 4000

Gear ratio (I): 5 / 7.5 / 10 / 15 / 20 / 25 / 30 / 40 / 50

Speed (m/min): 37 (37.3) / 25 (24.9) / 19 (18.7) / 12 (12.4) / 9 (9.4) / 8 (7.5) / 6 (6.2) / 5 (4.7) / 4 (3.7)

Drive side: Right/left

Motor Position: Horizontal/vertical — 1-4

Belt_Conveyors_Order_Codes.pdf

Manual_Belt_Conveyor_BF_Series_English.pdf

CAD-Drawing

Designation	Width (mm)
BF40EIK - 40	40	Get quote
BF40EIK - 80	80	Get quote
BF40EIK - 120	120	Get quote
BF40EIK - 160	160	Get quote
BF40EIK - 200	200	Get quote
BF40EIK - 250	250	Get quote
BF40EIK - 300	300	Get quote
BF40EIK - 350	350	Get quote
BF40EIK - 400	400	Get quote
