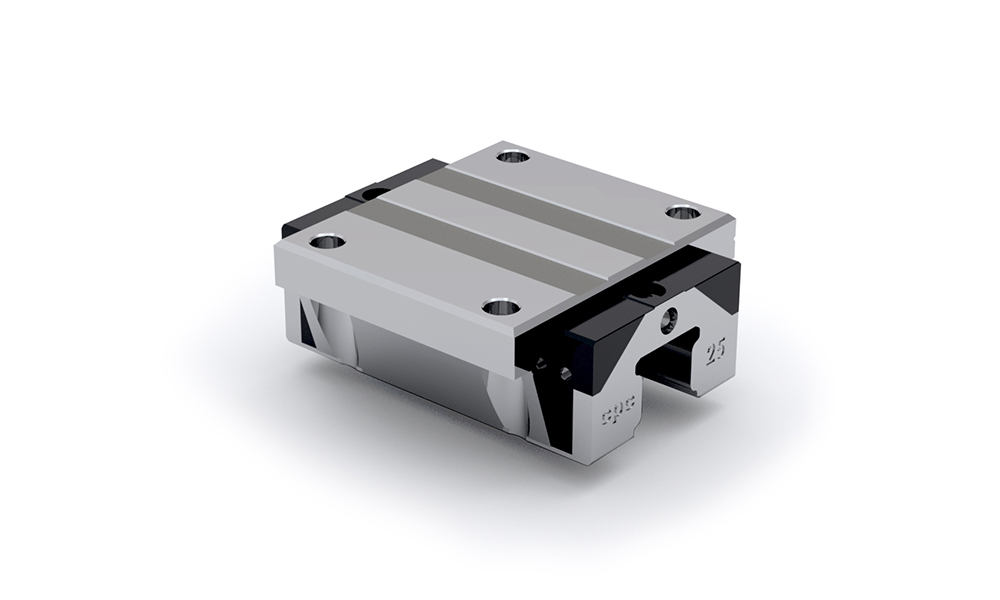

HRC FN

Flanged type block.

N2 = injecting holes
N2, N3 will be seal before shipment, open it when first using the product
N3 = O-ring size for lubrication from above

HRC45FN and HRC55FN are without ball chain.

The rating load capacities and static moment are calculated according to ISO14728 standard. The rating life for basic dynamic load rating is defined as the total 100 km travel distance that 90% of a group of identical linear guides can be operated individually under the same conditions free from any material damage caused by rolling fatigue. When the standard of 50km travel distance is applied, the above basic dynamic load rating C of ISO 14728 should be multiplied by 1.26 for conversion.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Designation Select all Lead Time * Dynamic Load Capacity C (KN) Static Load Capacity C0 (KN) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Weight Block (g)
1 9.9 17.5 140 105 105 200
Get quote
1 17.1 30 325 230 230 318
Get quote
1 24.8 42.5 540 385 385 578
Get quote
1 32.8 53.7 845 565 565 896
Get quote
1 45.9 82.9 1700 1080 1080 1430
Get quote
1 71.3 122.1 3200 1910 1910 2794
Get quote
1 128 186 4949 3278 3278 5440
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Height (H) System Width (W) Block Length (L) W2
24 47 55.5 16
Get quote
30 63 69 21.5
Get quote
36 70 81.2 23.5
Get quote
42 90 95.5 37.5
Get quote
48 100 111.2 31
Get quote
60 120 135.5 33
Get quote
70 140 168.5 43.5
Get quote
Designation Select all P2 P1 Mxg2 M1
38 30 M5x7 M4
Get quote
53 40 M6x10 M5
Get quote
57 45 M8x12 M6
Get quote
72 52 M10x15 M8
Get quote
82 62 M10x15 M8
Get quote
100 80 M12x18 M10
Get quote
116 95 M14x18 M12
Get quote
Designation Select all W1 H1 D x d x g1 Hole Pitch (P)
15 15 7.5x4.5x5.3 60
Get quote
20 20 9.5x6x8.5 60
Get quote
23 23 11x7x9 60
Get quote
28 27 14x9x12 80
Get quote
34 32 14x9x12 80
Get quote
45 39 20x14x17 105
Get quote
53 45.7 24x16x20 120
Get quote
Designation Select all Block Length (L) System Width (W) L1 h2 W2 S1 E S2 N3 N1 N2 Mxg2 Remark S3 S4 T H1
55.5 47 40.3 20.7 16 8.5 3.5 11.5 P3 M3x6.5 M3x6 M5x7 - 9.8 10.9 7 15
Get quote
69 63 52 25 21.5 6 10 9.4 P4 M3x7.5 M3x5.5 M6x10 - 11 11.7 10 20
Get quote
81.2 70 62.2 30 23.5 12 12 16.3 P4 M6x7.5 M3x6.5 M8x12 - 16.6 17.6 12 23
Get quote
95.5 90 71.5 35.2 37.5 10.5 12 15 P5 M6x8.5 M6x5 M10x15 - 20.8 20.5 16 27
Get quote
111.2 100 86.2 40.4 31 15 12 22 P5 M6x10 M6x7 M10x15 - 23.4 24.1 16 32
Get quote
135.5 120 102.5 50.7 33 21.1 14 28.1 P5 PTI/8x12.5 M6x10.5 M12x18 No ball chain 27.3 27.3 19 39
Get quote
168.5 140 126.5 58 43.5 13.5 12 23.5 P5 M6x10 M6x13 M14x18 No ball chain 24.8 23.8 18 45.7
Get quote
