Metal-Plastic Cap

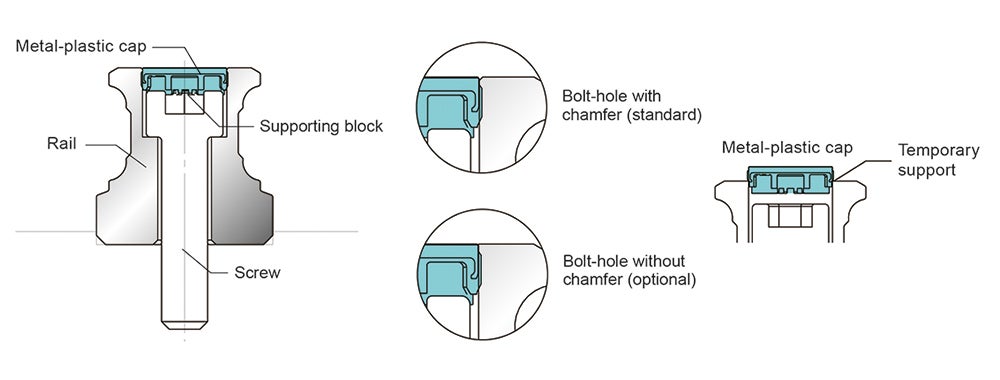

The top of the cap is made of stainless steel and prevents dirt or scrap from piling up in the bolt hole, which may affect the end seal function.

The lower part of the cap is made of plastic and can be installed directly on the standard rail. There is no need to conduct other fine slot milling for bolt-hole.

The bolt-hole chamfer for standard rail is C0.2 mm. A non-bolt-hole chamfer rail is available on request for absolutely dust-proof applications. Please contact us for more information.

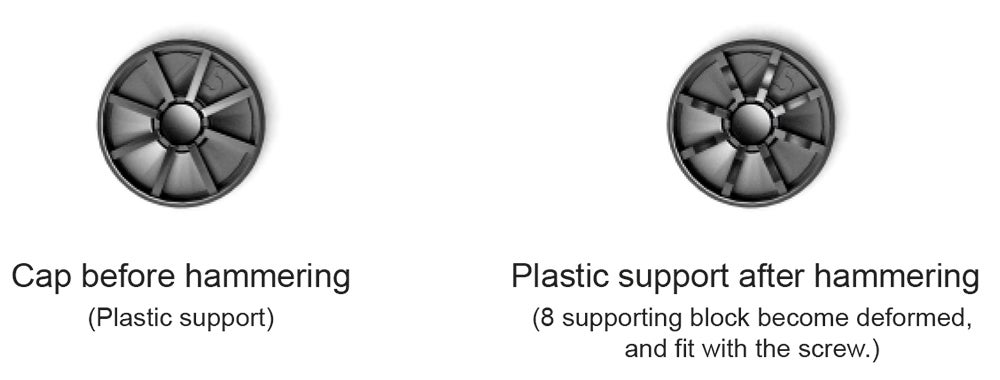

The cap is designed with supporting block to prop up the cap, fix the screw stably and prevent it from sinking.

Dimensions in mm.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Designation Select all Lead Time * Screw Type Compatible with
2 M4 AR15 , WRC21/15, WRC27/20
Get quote
1 M5 AR20
Get quote
1 M6 AR25
Get quote
1 M8 AR30 , AR35
Get quote
2 M12 AR45
Get quote
1 M14 AR55
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all C D H
2.0 7.7 1.7
Get quote
4.0 9.7 3.4
Get quote
3.5 11.3 2.9
Get quote
4.5 14.3 3.9
Get quote
5.6 20.4 5.0
Get quote
6.5 24.4 6.0
Get quote
