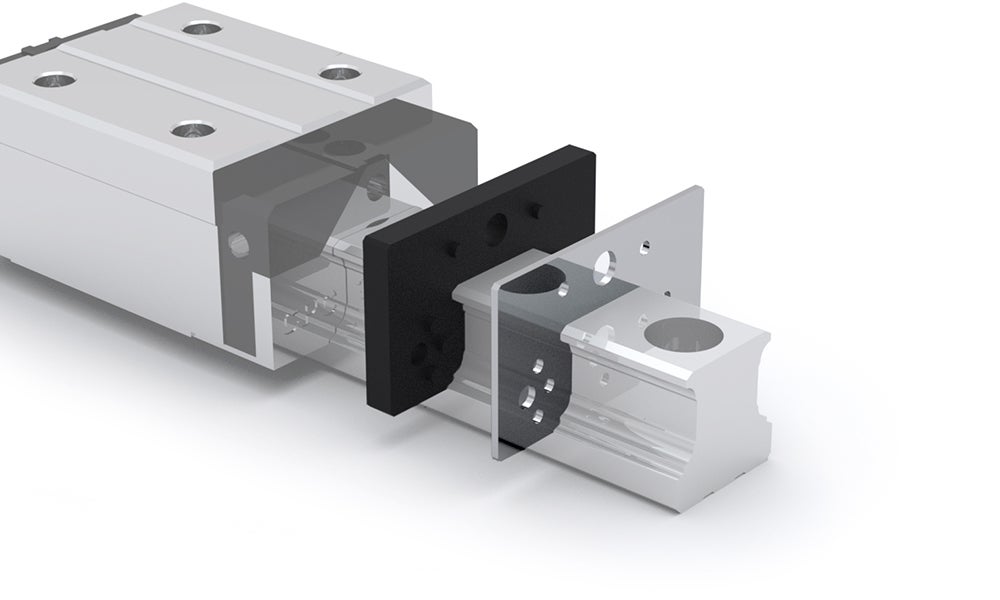

NBR Seal / Metal Scraper
Extra protection for harsh environments
ERC MN
Long block.
N2 = injecting holes
N2, N3 will be seal before shipment, open it when first using the product
N3 = O-ring size for lubrication from above
The rating load capacities and static moment are calculated according to ISO14728 standard. The rating life for basic dynamic load rating is defined as the total 100 km travel distance that 90% of a group of identical linear guides can be operated individually under the same conditions free from any material damage caused by rolling fatigue. When the standard of 50km travel distance is applied, the above basic dynamic load rating C of ISO 14728 should be multiplied by 1.26 for conversion.
Please note that ball chain versions must never be used for linear speeds exceeding 3 m/s!
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.
N2 = injecting holes
N2, N3 will be seal before shipment, open it when first using the product
N3 = O-ring size for lubrication from above
The rating load capacities and static moment are calculated according to ISO14728 standard. The rating life for basic dynamic load rating is defined as the total 100 km travel distance that 90% of a group of identical linear guides can be operated individually under the same conditions free from any material damage caused by rolling fatigue. When the standard of 50km travel distance is applied, the above basic dynamic load rating C of ISO 14728 should be multiplied by 1.26 for conversion.
Please note that ball chain versions must never be used for linear speeds exceeding 3 m/s!
Dimensions in mm.
Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Dynamic Moment Mr (Nm) | Dynamic Moment Mp (Nm) | Dynamic Moment My (Nm) | Weight Block (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 24800 | 42500 | 540 | 385 | 385 | 315 | 225 | 225 | 470 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | System Height (H) | System Width (W) | Block Length (L) | W2 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
36 | 48 | 81.2 | 12.5 |
|
| Designation | Select all | P2 | P1 | Mxg2 | M1 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
35 | 35 | M6x9 | - |
|

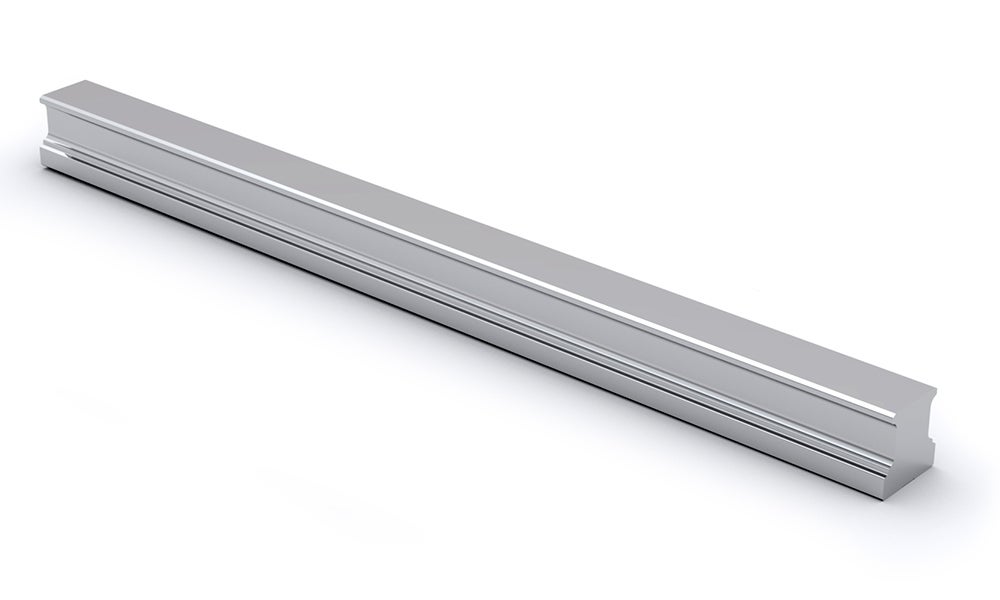

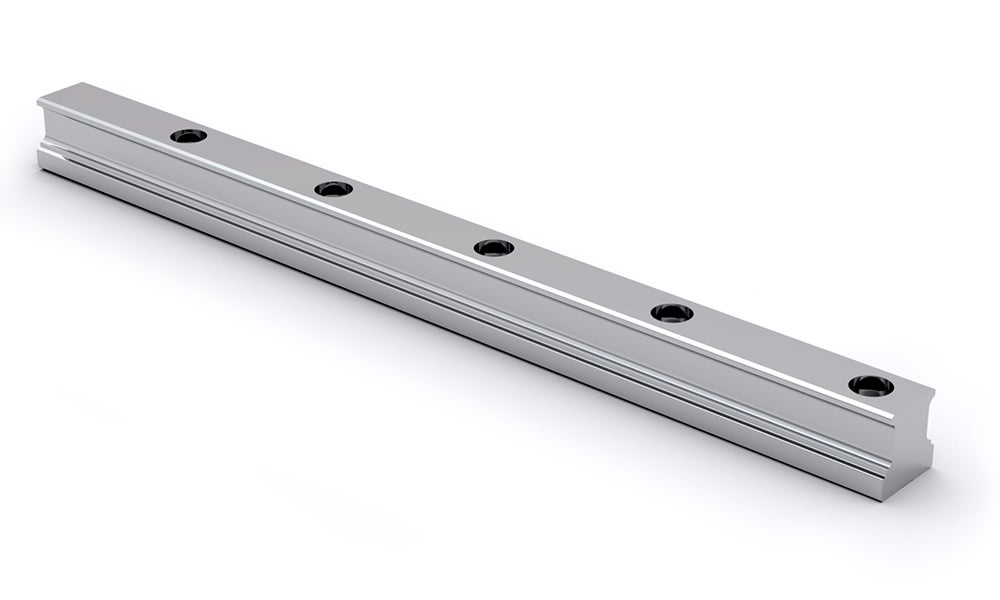

| Designation | Select all | W1 | H1 | D x d x g1 | Hole Pitch (P) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
23 | 23 | 11 x 7 x 9 | 60 |
|
| Designation | Select all | Block Length (L) | System Width (W) | L1 | h2 | W2 | S1 | E | S2 | N3 | N1 | N2 | Mxg2 | S3 | S4 | T | H1 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
81.2 | 48 | 62.2 | 30 | 12.5 | 8 | 12 | 12.3 | P4 | M6x7.5 | M3x6.5 | M6x9 | 16.6 | 17.6 | 8 | 23 |
|
-
-

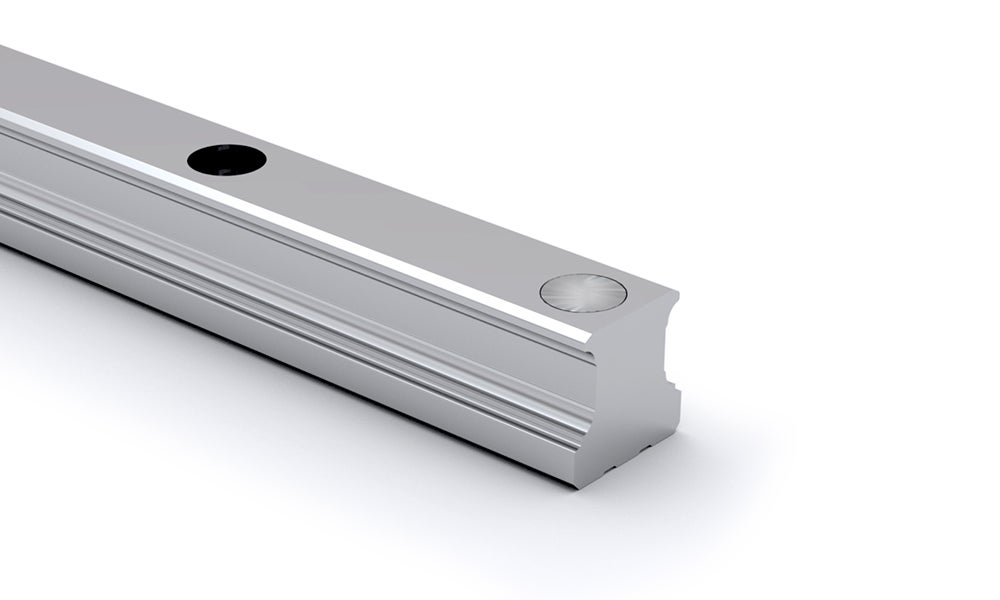

Metal-Plastic Cap
Stainless cap to prevent dirt/scrap on rail -
MK Clamping Element
Pneumatic clamping element, normally open. Compatible with Linear Rail SBI. -
MKS Clamping Element
Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail SBI.
-

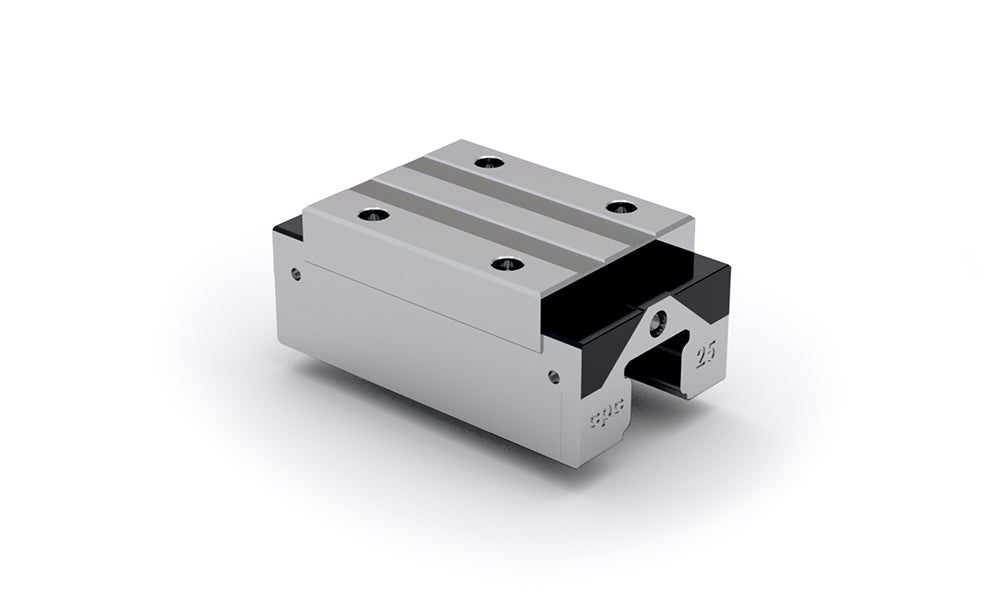

HRC MN
Slim – standard length – standard height -

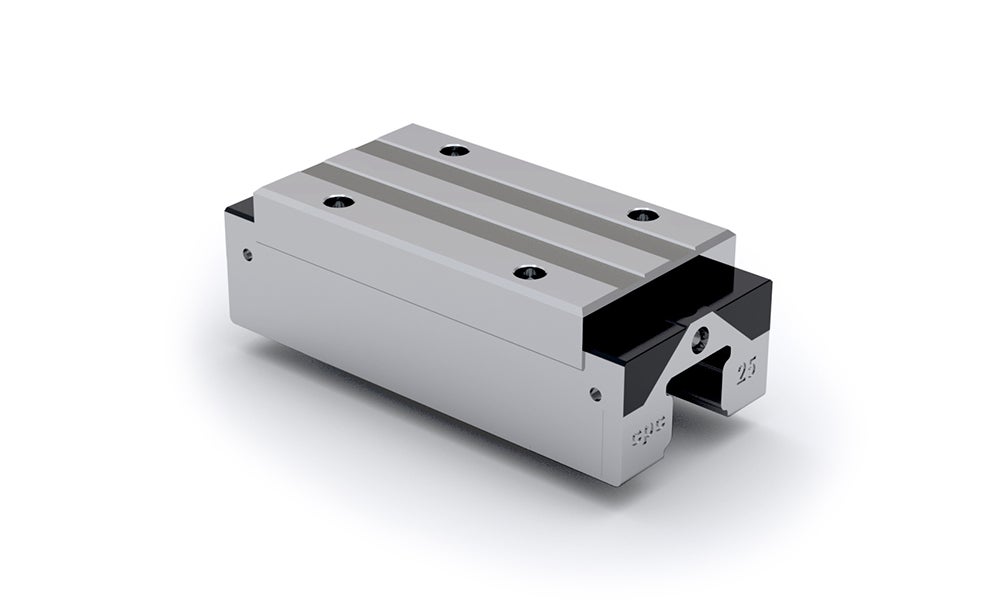

HRC ML
Slim – long – standard height -

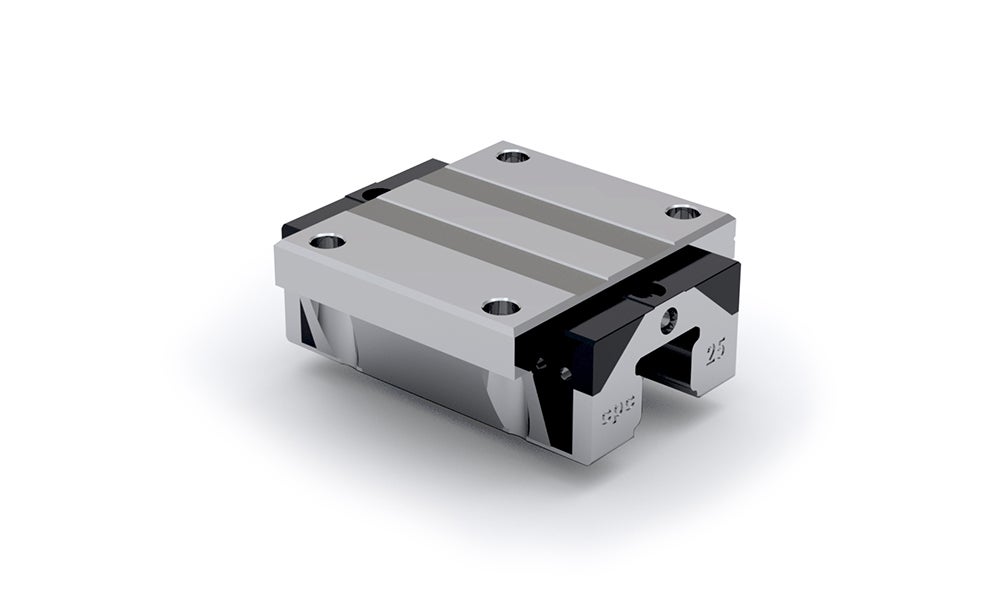

HRC FN
Flanged – standard length – standard height (most common) -

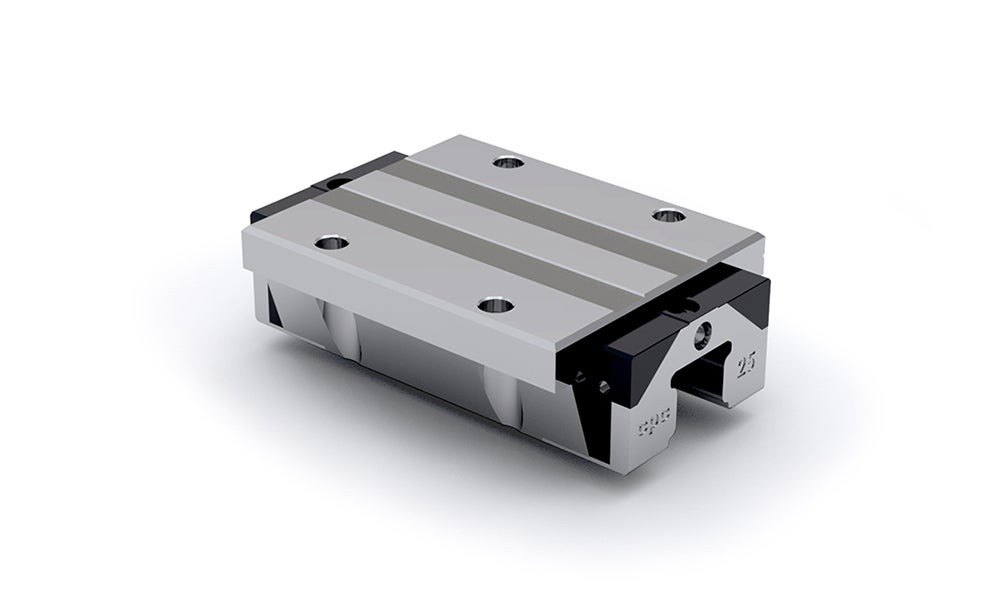

HRC FL
Flanged – long – standard height -

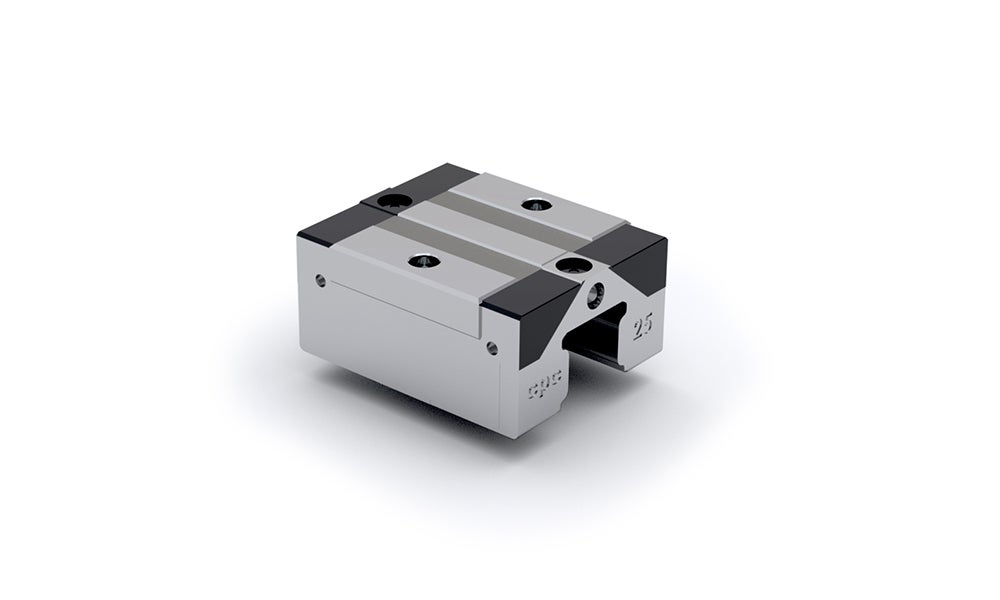

ARC MS
Slim – short – low height -

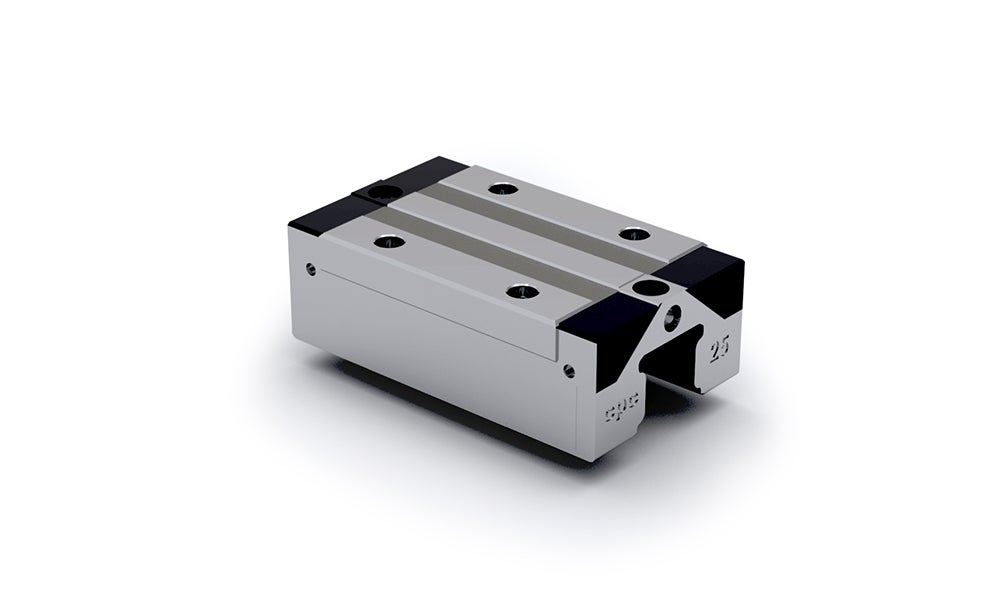

ARC MN
Slim – standard length – low height -

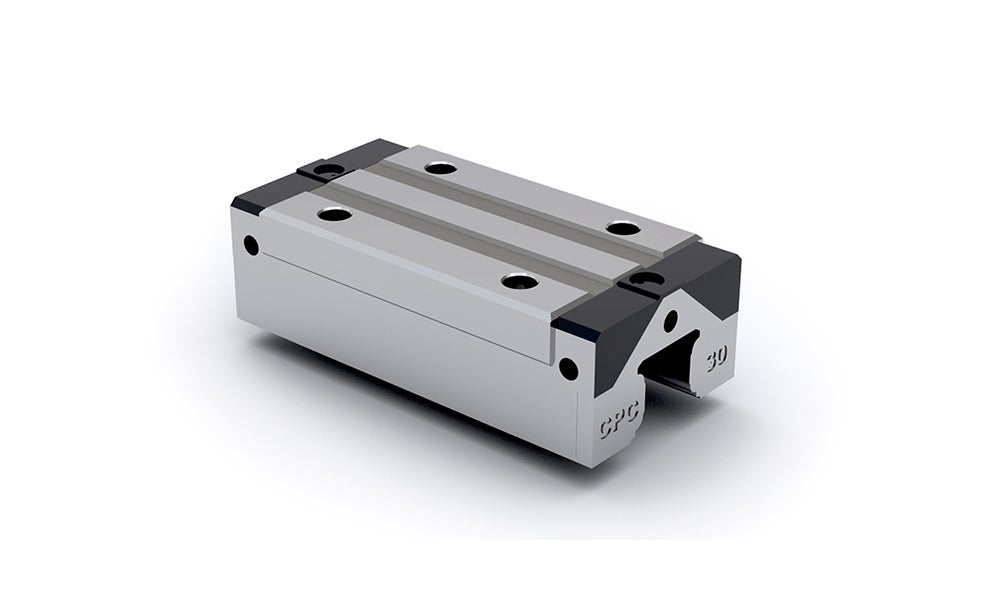

ARC ML
Slim – long – low height -

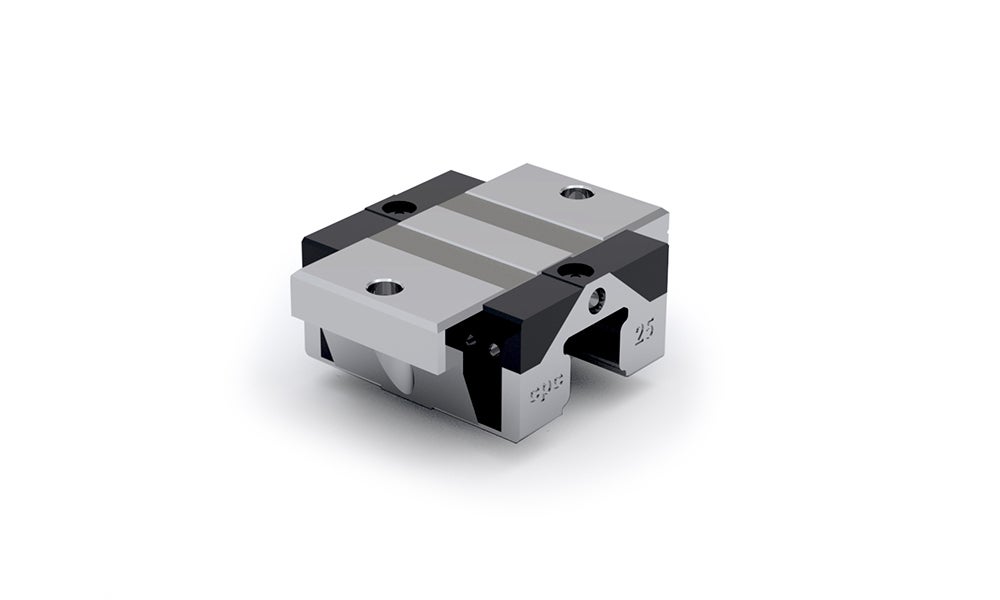

ARC FS
Flanged – short – low height -

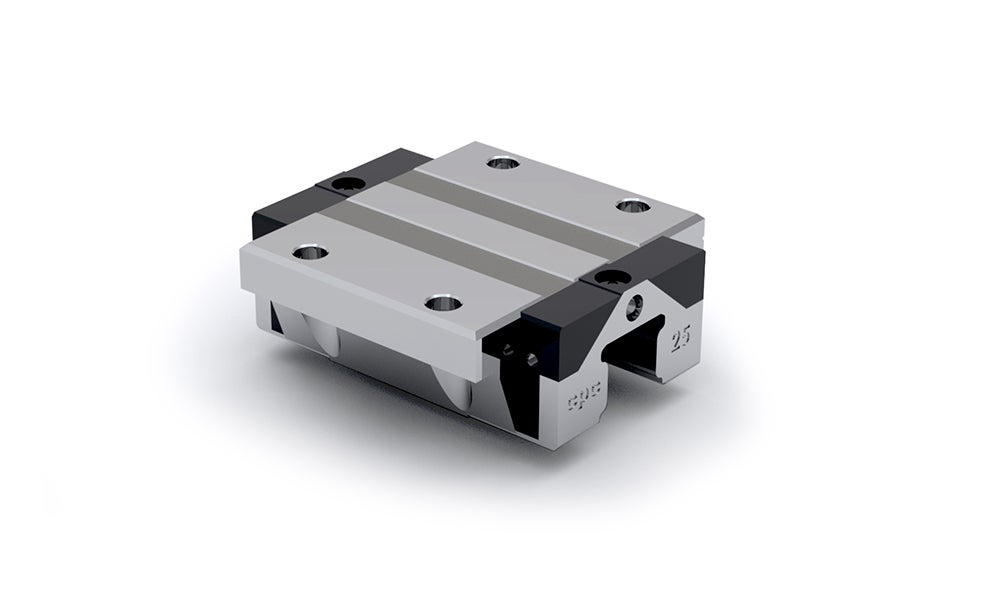

ARC FN
Flanged – standard length – low height
